Overview

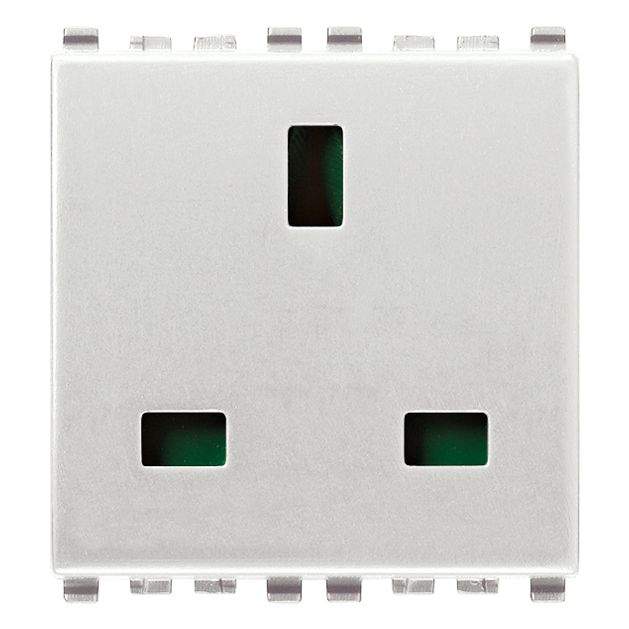

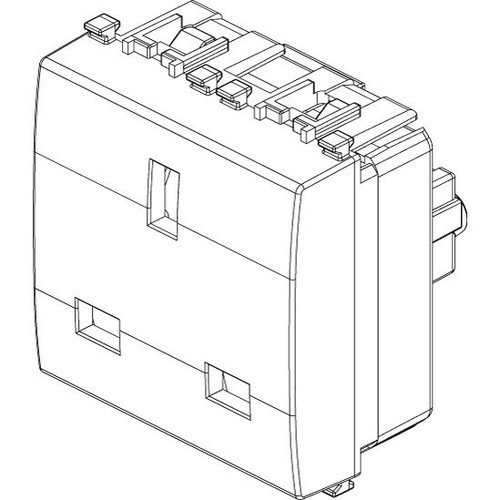

The Vimar Eikon 20220 is a 2-module British Standard socket outlet with 2P+E configuration, a 13A 250V rating, and SICURY contact protection. It is made for flush mounting and uses screw terminals, so it suits interior AC installations where a clean wall or panel finish matters as much as plug compatibility.

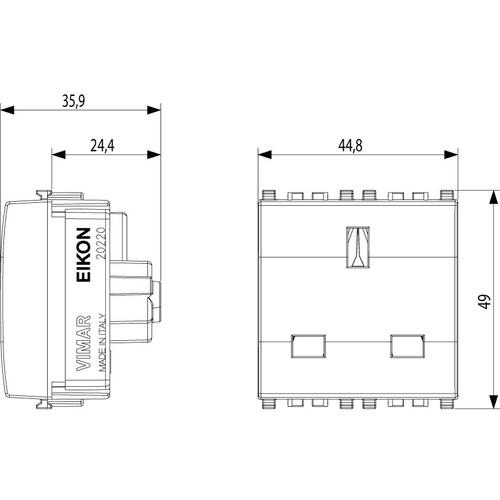

For a boat fit-out, this outlet makes sense in dry interior spaces such as cabins, saloons, galleys, and navigation areas where British Standard plugs are part of the onboard setup. The body measures 44.8 x 49 x 35.9 mm, carries an IP20 rating, and includes a label space, which helps when circuits need to be identified clearly on a distribution layout.

The housing is thermoplastic and halogen-free, with one outlet per device and no built-in switch or USB supply. That keeps the format straightforward for installations that need a dedicated English standard receptacle within the Vimar Eikon modular system.

Key features

• British Standard 2P+E outlet rated at 13A and 250V for AC circuits using UK plug format
• SICURY contact protection adds a shuttered safety function at the socket face
• 2-module format for Vimar Eikon flush-mount installations
• Screw-terminal connection for fixed wiring
• Label space on the front for circuit or outlet identification
• Thermoplastic body that is halogen-free
• IP20 rating suited to dry interior locations, not exposed deck or washdown areas

Variants

This product is offered in two color configurations.

The finish changes between variants, while the core format stays the same across the range: one British Standard 2P+E outlet, 13A 250V rating, 2-module size, flush mounting, screw terminals, and the same 44.8 x 49 x 35.9 mm body dimensions.

• VM20220.B: Color White. This version has a matt white face that blends easily into light interior panels and cabin joinery.
• VM20220.N: Color Silver. This version uses the silver Next finish for a darker look on modern panels and console areas.

Compatibility and fit

This outlet is for installations that need an English standard receptacle and have space for a Vimar 2-module device in a flush-mounted frame. It is not a weatherproof outlet, so it belongs in protected interior spaces rather than cockpits, open bulkheads, or any area that sees spray, heavy condensation, or washdowns.

It is a practical match for refits and new builds where the boat already uses Vimar modular hardware and British Standard plug connection points are needed for onboard appliances or cabin power access.

Installation and setup

Wiring is through screw terminals, which keeps the connection method familiar for panel work and outlet replacements. Before ordering, it is worth confirming the vessel uses the correct AC system for a 13A 250V British Standard outlet and that the mounting frame and cover plate match the Eikon 2-module layout already on board.
