Overview

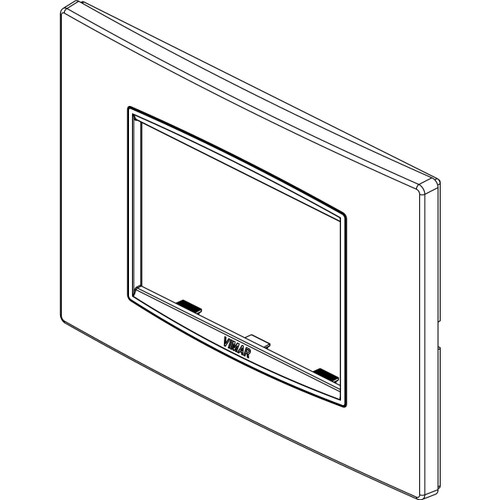

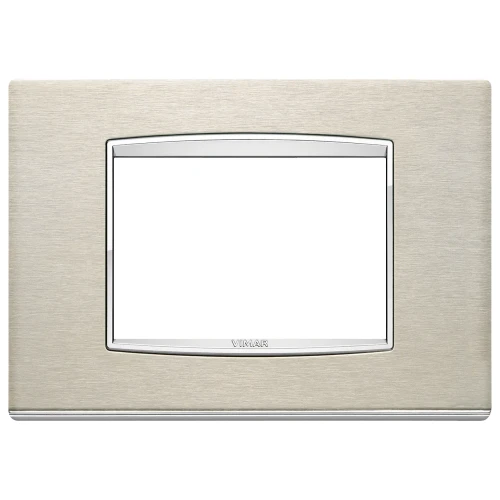

The Vimar Eikon 20653 Classic cover plate is a 3-module front plate for the Eikon wiring range, used to finish switches, sockets, and similar modular control points with a square, flush-mounted look. Across the validated versions in this family, it can be installed horizontally or vertically, and the face size is around 119.8 x 84.8 mm on metal and wood versions, while Reflex versions are about 120 x 85 mm with a 10 mm depth.

This listing covers multiple finishes, and the base material changes with the version. Metal, Reflex technopolymer or acrylic, and Italian walnut variants are all present in the 20653 range, so the exact finish code matters when you are replacing an existing plate or keeping a refit consistent across the cabin.

On board, this cover plate fits best in protected interior spaces such as cabins, saloons, galleys, and other dry accommodation areas. The front protection is IP00, so it is not the right choice for exposed helm positions, open cockpits, or washdown zones.

Key features

• 3-module Eikon Classic cover plate for modular switch and socket layouts
• Can be mounted horizontally or vertically
• Made for flush-mounted installations
• Finish range in this listing includes satin, matte, chrome-effect, Reflex, and wood options
• Validated versions in this family are halogen-free
• Material depends on finish, with metal, technopolymer or acrylic, and solid wood versions in the range
• External dimensions vary slightly by version, with metal and wood examples at about 119.8 x 84.8 x 9 mm and Reflex examples at about 120 x 85 x 10 mm

Variants

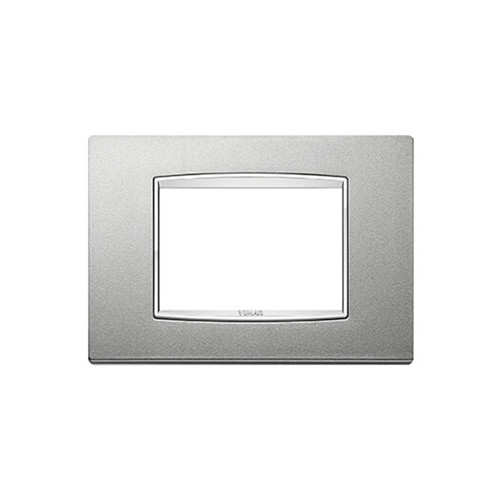

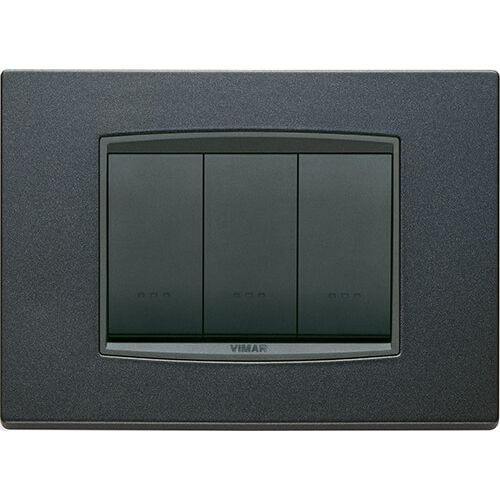

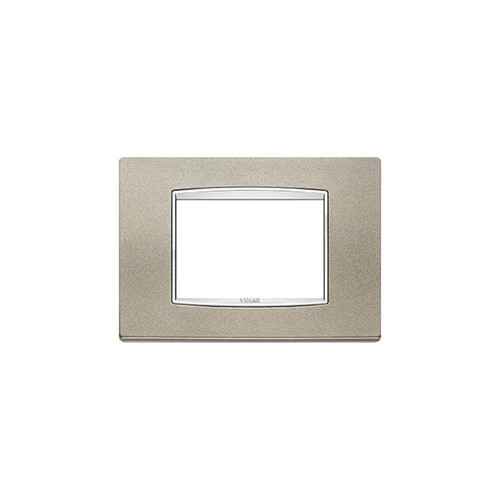

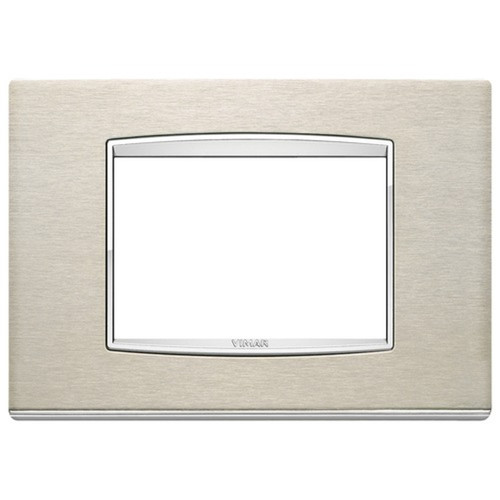

This family is offered in a wide spread of finishes, including Satin Gold, White Chrome, Ice White, Arctic White, Black Chrome, Matte Silver, Matte Titanium, Satin Nickel, Reflex Anthracite, Matte Anthracite, Silver, Antique White, Brushed Silver, Italian Walnut, Graphite, and Anthracite.

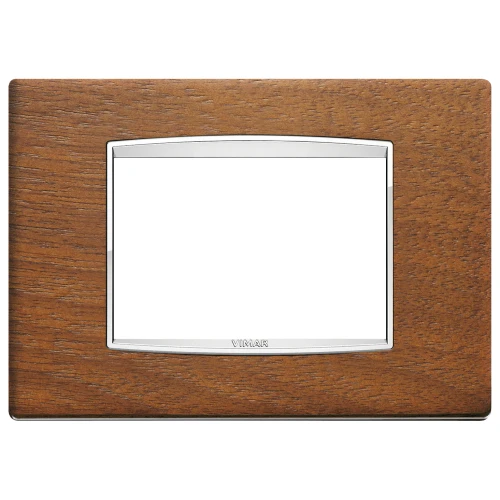

The main difference across the range is the finish, but the underlying material also changes with some versions. The validated range includes painted or plated metal options, Reflex technopolymer or acrylic options, and an Italian Walnut solid wood option. The format stays within the Eikon Classic 3-module family, though outside dimensions and depth can vary slightly by version.

Compatibility and fit

This is the visible cover plate only, so it needs to match the correct 3-module Eikon installation behind it. For a replacement job, check the existing series, the 3-module opening, the mounting orientation, and the finish code before ordering, especially when you are matching other cabins, bulkheads, or switching points on board.
