Overview

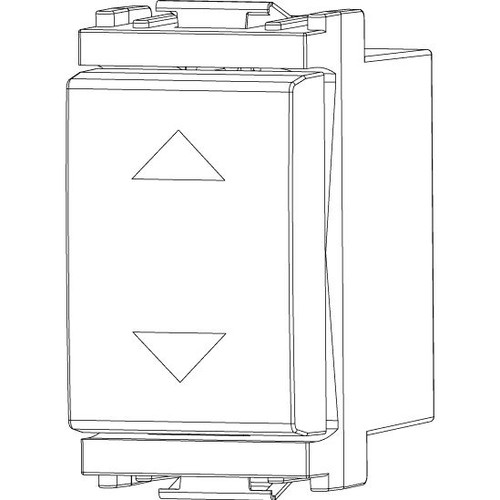

The Vimar Idea 16145 is a built-in 2P 10 AX 250 V 2-way switch from the IDEA range, with six terminals, directional arrows and a central OFF position. It uses a rocker front and is rated for self-ballasted lamp loads up to 100 W.

The switch body is made from halogen-free thermoplastic with a matt finish, and it mounts into the support with snap fastening. IP40 protection makes it a fit for enclosed interior spaces on board where the device is kept away from spray and washdowns.

Key features

• 2-pole switching layout rated 10 AX at 250 V
• Six-terminal configuration with directional arrows and a central OFF position
• Built-in IDEA modular device with engage snap fastening
• Halogen-free thermoplastic body with matt surface finish
• IP40 protection for protected interior installations
• Suitable for self-ballasted lamp loads up to 100 W
• Front label space for circuit identification

Variants

This product is offered in two colour configurations within the same IDEA switch format.

Across both versions, the electrical format stays the same at 2 poles, 10 AX and 250 V, with six terminals, directional arrows, a central OFF position, built-in mounting and IP40 protection. The visible change between variants is the front colour.

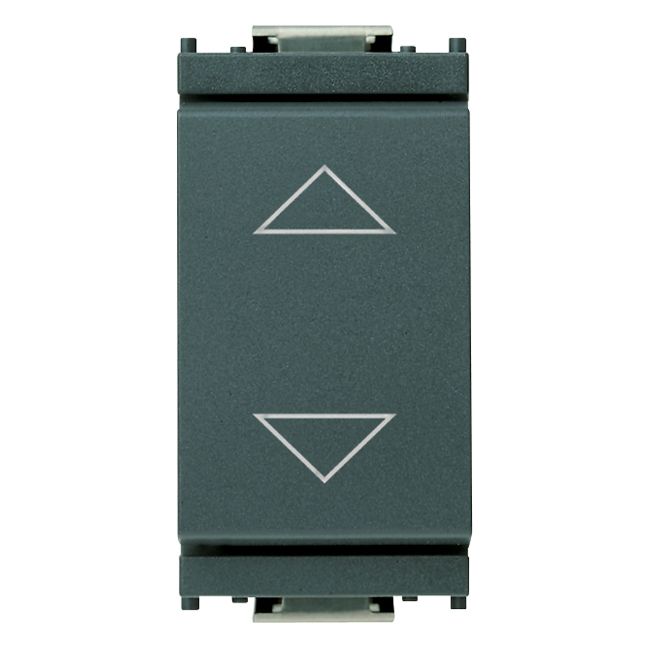

• VM16145: Color Gray. The darker face gives more contrast against lighter trim and keeps the switch easy to identify at a glance.
• VM16145.B: Color Ivory. This is the lighter finish in the range and suits installations built around light-coloured trim.

Installation and fit

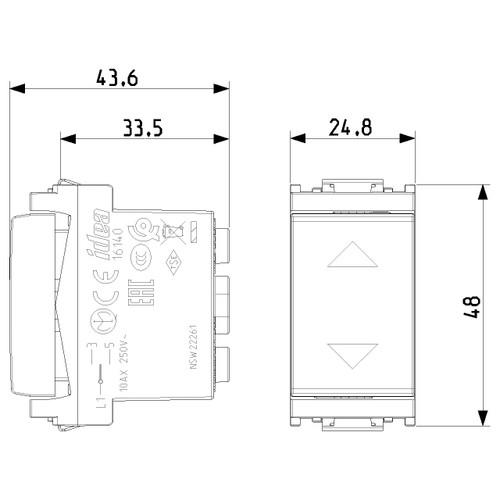

This is a built-in modular insert for Vimar IDEA installations rather than a surface-mount switch. The body is 24.8 mm wide and 43.6 mm deep, and the front includes a label space that helps when circuits need clear marking at the panel or switch position.

Because it is a 2-pole device with six terminals, it suits switching points where both poles need to be handled through the same control. On a boat, that usually means protected interior locations such as cabins, passageways, saloons or enclosed helm spaces where IDEA devices are already specified.

Use on board

This switch is a good match for refits and new interior installations that use the Vimar IDEA system and need a centre-off switching layout in a clean built-in format. For open deck positions, cockpit coamings or other areas that see direct weather, a higher-IP device is the better fit.
