Overview

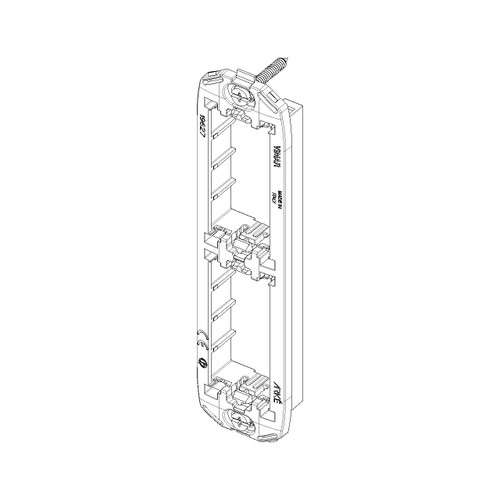

The Vimar VM19627 is a 2-module mounting frame with screws for panel mounting.

It gives you a solid fixing point when you want to install a Vimar ARKÉ 2-module device on a flat panel instead of a standard wall box, such as a helm switch panel, console fascia, or a cabinet face. The frame sits behind the cut-out and holds the device and cover plate square so it does not work loose with vibration.

Key features

• 2-module (2M) format for Vimar ARKÉ modular devices used in panel installations
• Supplied with screws to fasten the frame to the panel
• Rear support for a front-installed device through the panel opening
• Screw fixing that helps keep the assembly steady on boats that see shock and vibration
• Built for ARKÉ panel-mount assemblies that use a 2-module opening and matching cover plate

Compatibility and fit

This frame is for the ARKÉ modular system in the 2-module width. Before ordering, confirm your device is an ARKÉ item that uses the 2-module format and that your panel cut-out and cover plate are sized for a 2-module opening.

If your installation uses a flush-mount electrical box, a different Vimar series, or a different module count, use the corresponding frame for that format instead.

Installation and setup

Mount the frame behind the panel, align it with the cut-out, and secure it using the included screws. Install the 2-module device from the front, then finish with the matching panel-mount cover plate. Leave enough clearance behind the panel for wiring bends and strain relief, especially on vibrating helm and console locations.

Use cases on board

Common installs include helm switch banks, accessory panels at the nav station, cabin control panels, and locker or bulkhead panels where you want a clean, serviceable mount for ARKÉ modular devices. It is a good match for refits and new builds that use custom panels and need a consistent 2-module mounting pattern.
