Overview

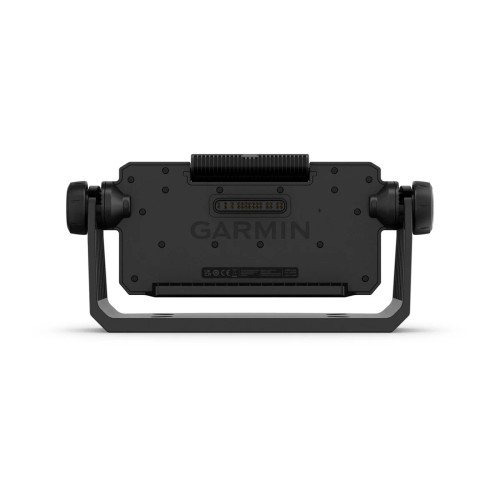

This Garmin bail mount with quick release cradle is a surface-mount bracket and cradle set for installing an ECHOMAP UHD2 chartplotter on a dash, console, or electronics box when you want the screen on an adjustable tilt mount rather than flush-mounted.

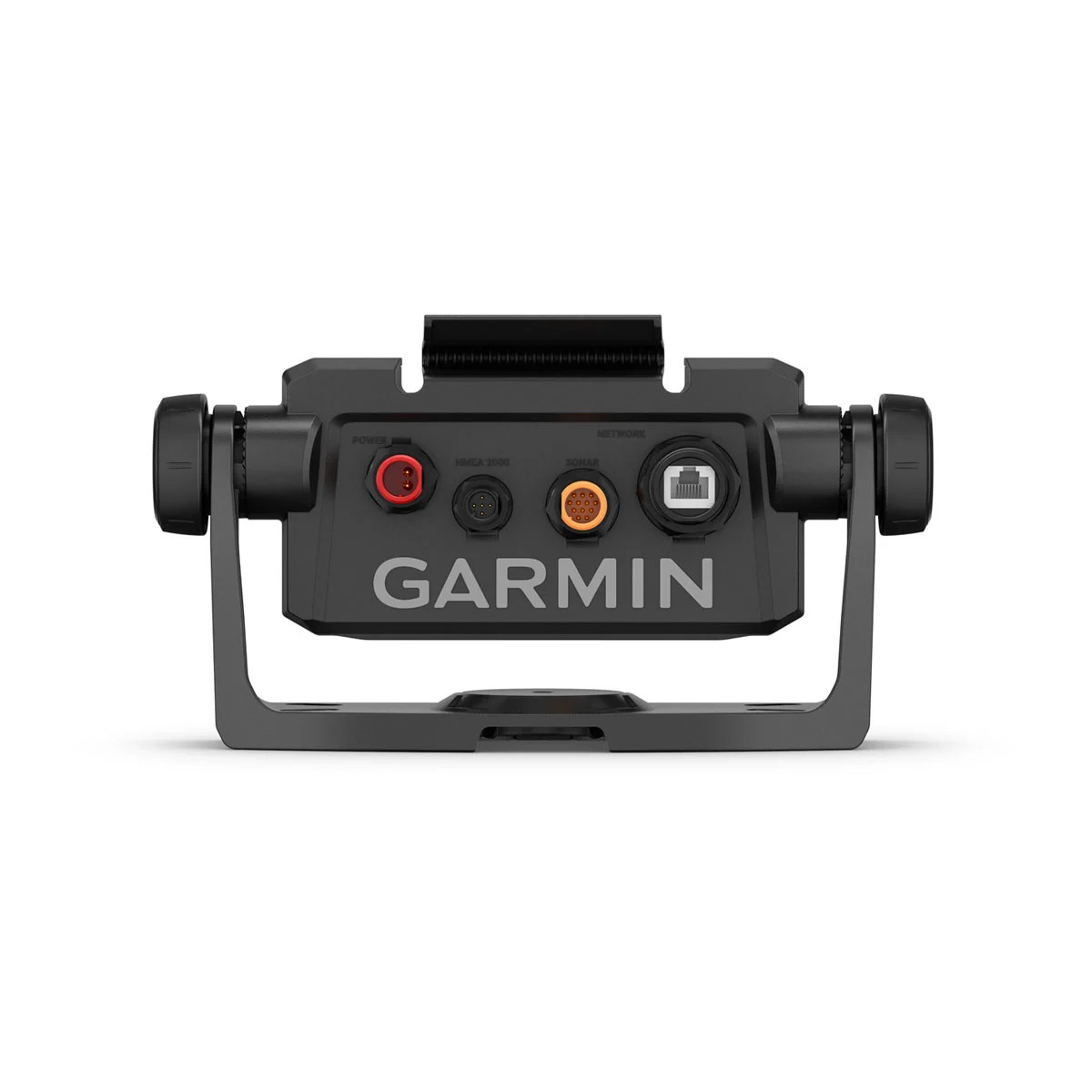

The wiring plugs into the cradle, then the display seats into the cradle so it can be removed and reinstalled without reconnecting the cables each time. Size options match ECHOMAP UHD2 SV displays in 6 in, 7 in, and 9 in classes.

Key features

• Bail-style bracket for surface mounting on a flat helm or console.
• Knob-secured tilt adjustment so the screen angle can be set for your seated or standing view.
• Quick-release cradle connection so the display can be seated and removed quickly while the cabling stays in place.
• Size-specific fit for ECHOMAP UHD2 SV chartplotters in 6 in, 7 in, and 9 in formats.
• Practical for boats that get trailered or covered, since the display can be pulled off and stored without disturbing the wiring.

Variants

This mount is offered in multiple size configurations to match different ECHOMAP UHD2 SV display formats.

The size listed below refers to the chartplotter screen class the cradle and bail mount are made to fit.

• 010-13115-12: Size 9 in. This configuration aligns with ECHOMAP UHD2 9-inch SV chartplotters.
• 010-13115-11: Size 7 in. This configuration aligns with ECHOMAP UHD2 7-inch SV chartplotters.
• 010-13115-10: Size 6 in. This configuration aligns with ECHOMAP UHD2 6-inch SV chartplotters.

Installation and setup

Plan the mounting spot so the display can tilt without hitting a windshield frame, grab rail, or throttle housing. Route the power and connected system cables to the cradle first, leaving enough slack for the tilt range, then secure the bail mount to the surface and seat the display into the quick-release cradle.

On open helms, it helps to keep connectors tucked behind the mount and form a small drip loop in the harness so water does not track straight into the connection area.

Compatibility and fit

This mount is made for Garmin ECHOMAP UHD2 SV chartplotters, and fit is size-specific. Confirm your display is an ECHOMAP UHD2 model and match the mount size to the 6 in, 7 in, or 9 in class of your unit.

Use on board

This style of mount makes sense for center consoles, small pilothouses, and fishing rigs where the display needs to be angled toward the operator and occasionally removed for storage. It is also a good match when you want a clean helm setup but do not have the depth or panel space for a flush mount cutout.
