Overview

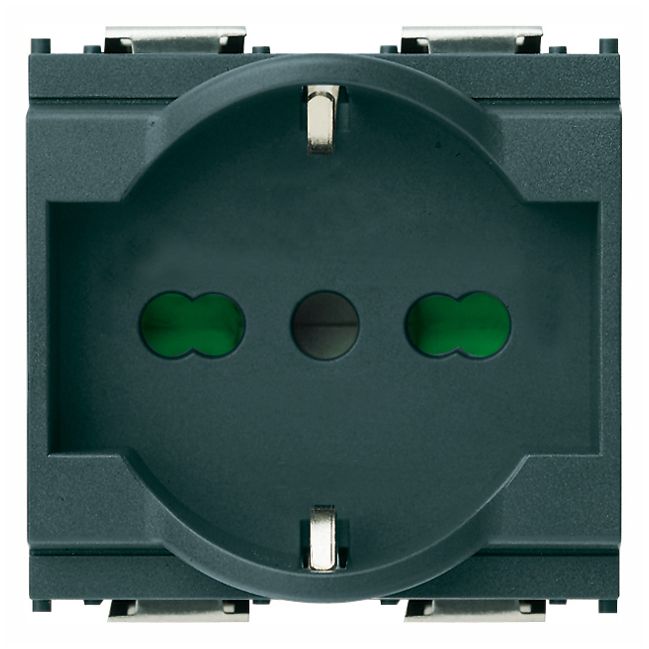

The Vimar Idea SICURY socket outlet is a 2P+E 16 A 250 V flush-mounted outlet for the Italian P40 format, built as a 2-module insert with IP20 protection. It uses screw terminals, includes enhanced contact protection, and is made from halogen-free thermoplastic with a matt finish.

This range is meant for protected interior AC outlet points on board, not exposed deck or cockpit locations. On a boat or yacht, it makes sense in cabins, saloons, galleys, and nav stations where the installation already uses the Vimar Idea modular system and the vessel needs an outlet that matches Italian and German plug standards.

Key features

• 2P+E socket outlet rated at 16 A and 250 V for the Italian P40 universal format
• Accepts 2P 2.5 A Euro plugs, 2P and 2P+E 10 A and 16 A Italian plugs, and 2P+E 16 A German plugs
• 2-module format for Vimar Idea installations with flush-mounted fitting
• Screw-terminal connection for fixed wiring behind the panel or furniture face
• SICURY contact protection and integrated label space on the front
• Halogen-free thermoplastic body with a matt surface
• IP20 protection for dry interior spaces

Variants

This product is offered in multiple color configurations within the same outlet family.

Across the listed variants, the outlet format, 16 A 250 V rating, 2-module size, screw-terminal connection, and IP20 protection stay the same. The visible change is the front color, which can matter when matching existing switch plates and interior trim.

• VM16211.B, Color Ivory. This version keeps the same electrical format and gives a lighter finish that blends more easily with cream or light-toned interior panels.
• VM16211.R, Color Red. This version keeps the same electrical format and gives a high-contrast finish that is easier to spot on service panels or color-coded onboard circuits.
• VM16211, Color Gray. This version keeps the same electrical format and gives a neutral darker finish that works well with gray plates and utility spaces.

Compatibility and fit

This outlet is part of the Vimar Idea range and uses a 2-module footprint, so it should be matched with the correct Idea support and cover plate. Because it is flush-mounted, check panel cutout, box depth, and rear cable space before ordering for a refit.

It is a good match for boats and yachts that already use the Vimar Idea system and need an interior 250 V receptacle for Italian and German style plugs. It is not the right choice for washdown areas, open weather locations, or as a shore power inlet.

Installation and use on board

The IP20 front and screw-terminal connection make this a straightforward choice for protected cabin joinery, console panels, and other interior mounting points where spray and direct wash are not part of normal use. For marine AC systems, the outlet should be fitted only where the vessel wiring standard, circuit protection, and enclosure arrangement are correct for a 250 V receptacle.
