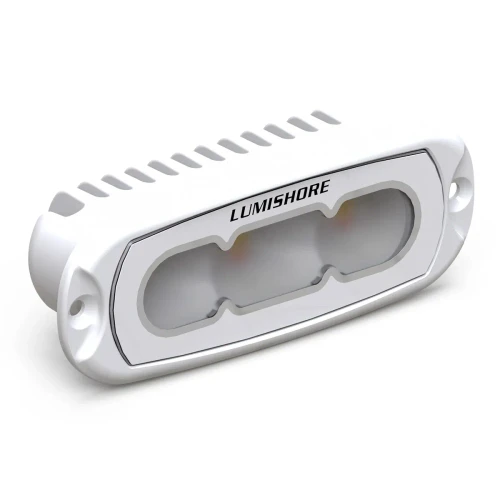

Lumishore LUX LED Flood Light, CRGBW, 70-90° Oval Beam

Overview

The Lumishore LUX Flood Light is a CRGBW LED flood light range for above-water lighting on boats, with options for 4" and 18" sizes, white or black finishes, and flush or bracket fit. It is made for deck, cockpit, T-top, arch, transom, and security lighting where wide coverage and color control matter.

The 4" models produce 1,050 fixture lumens, while the 18" model produces 7,500 fixture lumens. Across the range, the light uses warm white, cold white, red, green, and blue channels with a 70° to 90° oval beam, giving broad wash lighting rather than a narrow spotlight.

Key features

• CRGBW output combines warm white, cold white, red, green, and blue in one flood light.
• Wide 70° to 90° oval beam helps cover decks, cockpits, arches, T-tops, and transoms.
• IP68 water ingress rating supports exposed marine mounting locations.
• 10.5 to 31 V DC supply range suits both 12V and 24V boat electrical systems.
• Control options include a momentary switch or compatible Lumishore control equipment.
• Powder-coated aluminum body with a frosted lens helps the light blend into exterior boat installations.

Variants

This product is offered in multiple configurations so the housing finish, light size, and mounting fit can match the installation area.

The finish changes between white and black, the size changes between 4" and 18", and the fit changes between flush and bracket mounting. The CRGBW light output and wide oval beam are consistent across the LUX flood light range.

• 010-04500-00: White finish, 4" size, flush fit. This version sits closer to the mounting surface for a cleaner look on flat panels and exterior trim areas.
• 010-04633-00: Black finish, 4" size, flush fit. The black housing works well where the light needs to visually match dark hardtops, arches, or trim.
• 010-04461-00: White finish, 18" size, bracket fit. The larger body gives wider deck coverage for areas that need more flood lighting from a mounted bracket position.
• 010-04634-00: Black finish, 4" size, bracket fit. The bracket fit gives more mounting flexibility where a flush cutout is not the right approach.

Installation and setup

The 10.5 to 31 V DC input range makes the light suitable for many 12V and 24V marine systems. Installation should follow normal marine wiring practice with properly sized conductors, circuit protection, sealed connections, and strain relief in areas exposed to vibration or spray.

Flush fit versions are suited to installations where a low-profile finish is preferred. Bracket fit versions make more sense where the light needs to be mounted on a hardtop, arch, rail structure, or another surface where a recessed cutout is not practical.

Use cases on board

This flood light range fits boats that need controllable exterior lighting for evening dock work, cockpit visibility, fishing prep, boarding, washdowns, or general security lighting. The white channels support practical working light, while the RGB channels add color lighting for social use at anchor or at the dock.
