Overview

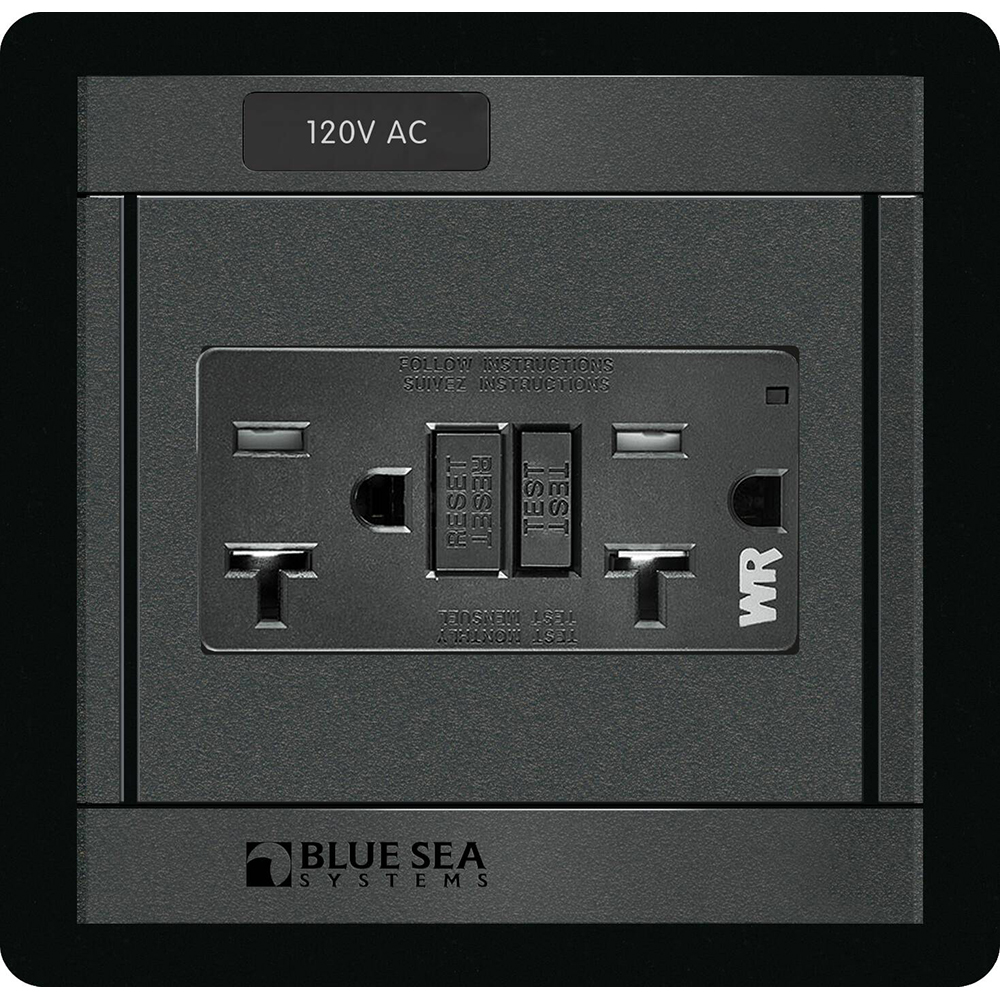

The Blue Sea Systems 1499 is a 360 Panel 120V AC GFCI dual outlet for boats that use the Blue Sea 360 Panel System. It gives you two 120V AC receptacles in one panel module, with ground fault protection and auto-monitoring built in. This is an AC component rated for 20A at 120V, so it belongs on a 120V AC branch circuit rather than a 12V or 24V DC system.

The panel face measures 4.75 x 4.88 x 1 in., which makes it a straightforward replacement when you are matching the 360 panel format. The outlet section is built for wet and damp locations, with stainless steel hardware and UV-stabilized plastics that make sense around spray, washdowns, and regular sun exposure.

This is the kind of outlet panel that fits well in a cabin, galley, helm area, or other onboard AC service point where crew may plug in chargers or small appliances and want GFCI protection at the panel. The status light gives a quick visual check of power and protection state, and the line/load reversal indication helps catch a wiring mistake during installation or fault finding.

Key features

• 20A, 120V AC dual receptacle module for the Blue Sea 360 Panel System
• Built-in GFCI protection with auto-monitoring
• Status indicator light for quick confirmation of power and protection status
• Line/load reversal indication to help identify wiring errors
• Suitable for wet and damp locations
• Stainless steel hardware and UV-stabilized plastics for marine exposure
• Panel dimensions: 4.75 x 4.88 x 1 in. (121 x 124 x 25 mm)

Compatibility and fit

This unit is meant for the Blue Sea 360 Panel platform, where modules share a common panel format and can be combined in one open-frame layout. That matters if you are replacing an existing 360 outlet module or building out a custom panel with matching 360 components.

Because this is a 120V AC outlet module, it suits boats with an onboard AC system such as shore power or an inverter-fed AC circuit that is already planned around a proper marine panel. It is not a DC charging socket and it is not a USB outlet.

Installation and use

On board, this outlet makes the most sense where protected AC access is needed close to the panel instead of at a separate remote receptacle. The wet-location construction also gives more flexibility for mounting spots that see moisture, as long as the overall installation follows the boat's AC panel layout and wiring plan.

For owners updating an older panel, the practical checks are simple: confirm you are working within a Blue Sea 360 Panel setup, confirm the branch circuit is 120V AC, and make sure the available panel space matches the 4.75 x 4.88 x 1 in. module size.

What’s included

• 1499 panel
• Instruction manual
