Overview

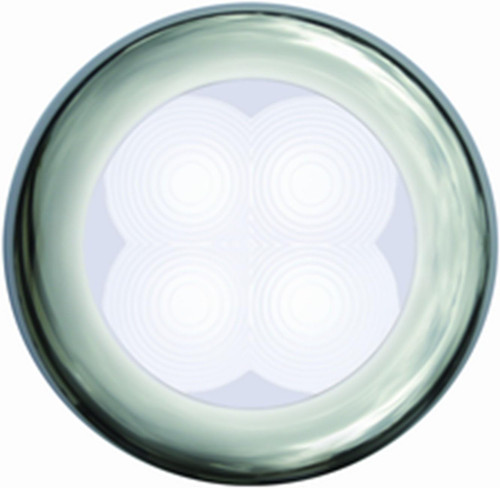

The Hella Marine 0500 Series is a slim line round soft LED courtesy light for 12 VDC systems when you want low-level light in walkways and working areas on board. It puts out a soft white glow through a clear lens, which helps with night movement without blasting your night vision.

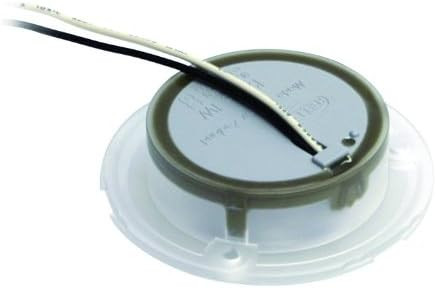

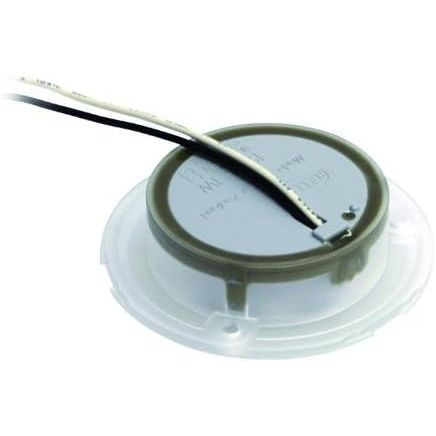

The housing is sealed for wet boat life, and it comes pre-wired with 120 mm of single core marine cable to keep wiring simple in tight spaces. It can also be dimmed with Hella Marine dimmer 998572001 when you want to knock the brightness down for overnight use.

Key features

• 12 VDC LED courtesy light with soft white output through a clear lens
• Sealed housing suited to damp lockers, cockpits, and rinse-down zones
• Pre-wired with 120 mm single core marine cable for straightforward hookups
• Compatible with Hella Marine dimmer 998572001 for adjustable brightness
• Offered in multiple sizes and mounting configurations to match different install approaches

Variants

This light is offered in multiple configurations to match different mounting preferences and space constraints.

Variants are listed by size and mounting method. The electrical side remains a 12 VDC courtesy-light setup, while the physical configuration depends on the option shown for each part number.

• 958358201: Size 10-Inch, mounting bracket mount. Bracket mounting suits installations where you want a fixed, repeatable aim and a secure mechanical attachment.
• 980500021: Size 16-Inch, mounting bracket mount. The 16-Inch size option gives you the same bracket-style mounting format in a larger footprint.
• 958358211: Size 10-Inch, mounting magnet mount. Magnet mounting is useful when quick placement and removal matters on suitable metal surfaces.
• 980500041: Size 16-Inch, mounting magnet mount. Magnet mounting paired with the 16-Inch size option keeps the same quick on and off approach with a larger format.

Installation and wiring

Plan the mounting location like you would any courtesy light: pick a spot that throws light across a step edge or walkway without shining straight into seated eyes. Keep the cable run protected from chafe and heat, then tie into a switched 12 VDC lighting circuit with the same fuse and wire sizing you use for the rest of your onboard lighting.

If you are adding dimming, place the dimmer where it can be reached underway and route the wiring cleanly so vibration does not work connections loose over time.

Use on board

This style of light makes sense for companionway steps, cockpit footwells, side-deck pass-throughs, locker openings, and other spots where you want a gentle reference light after dark. It is a good match for owners who run at night, anchor out, or just want safer movement around the boat without turning on full cabin lighting.

Maintenance and care

Rinse with fresh water after salt exposure and wipe the lens with a soft cloth. Skip harsh solvents on the plastic lens so it stays clear over time.
