Overview

The Vimar Eikon 20022 is an interchangeable 2-module rocker button cover for Eikon switching devices, with a lightable window so an indicator or locator light can show through when used with a compatible illuminated mechanism.

This is the front control element and not the electrical switch itself. The electrical rating and circuit type come from the switch or push button mechanism it is fitted to. The front is rated IP40, which suits protected interior panels and cabins rather than areas that see spray or washdowns.

Key features

• 2-module (2M) one-part rocker format for Vimar Eikon switch and push button mechanisms
• Lightable rocker with a monitoring window/light outlet for locator or status indication when paired with a compatible illuminated mechanism
• Clamp mounting fastening style
• Thermoplastic construction that is halogen free
• IP40 front protection for dry, sheltered installation locations
• No label area and no exchangeable lens/symbol
• Not listed as suitable for a touch sensor connector for bus systems

Variants

This range is offered with different front finishes and markings while keeping the same 2-module, lightable rocker format.

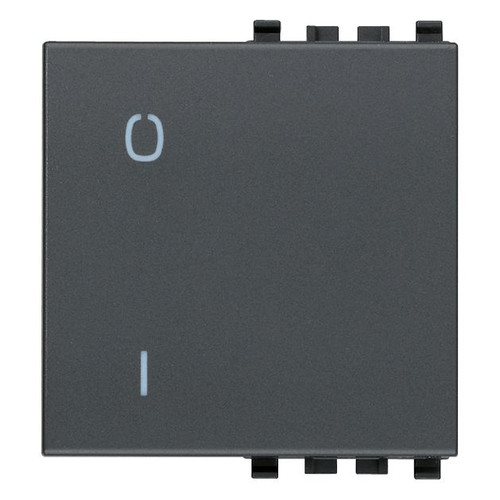

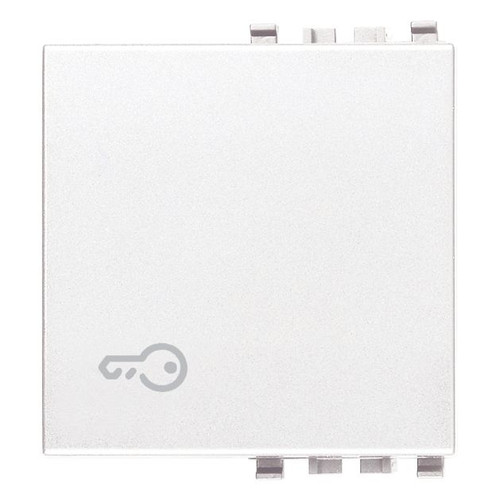

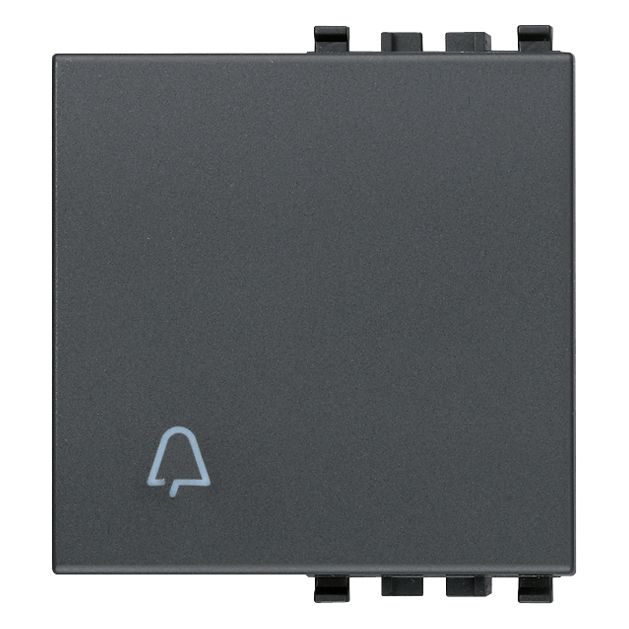

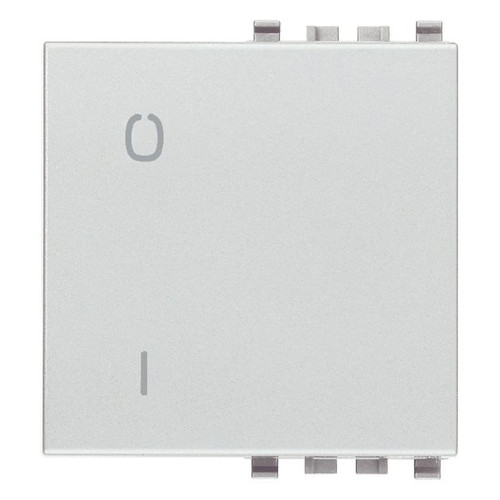

Options include Color Grey, Color Silver, and Color White, with Symbol Standard as well as Symbol Bell, Symbol Key, Symbol Light, and Symbol O/I. The O/I marking uses 0 and 1 characters and is specified for 2-pole 1-way switch mechanisms.

Compatibility and fit

This rocker is intended for the Vimar Eikon modular ecosystem. Confirm your existing mechanism and mounting frame are the Eikon format and that your opening is sized for a 2-module rocker.

If you are installing into a boat panel, use a protected location where the front will not be exposed to salt spray, dripping, or washdowns. IP40 is appropriate for interior helm pods, cabins, and electrical lockers when the panel face stays dry.

Installation and setup

Fit the rocker cover onto the compatible mechanism using the clamp mounting system, then verify smooth actuation without binding. If you want the rocker to glow or show status, pair it with the correct illuminated mechanism or lamp arrangement so the light aligns with the monitoring window.

After installation, cycle the control under load and check that the symbol orientation and rocker travel match the intended circuit function.

Use cases on board

This style of marked rocker is commonly used on yachts and workboats for tidy, repeatable labeling of circuits on interior panels, such as cabin lights, courtesy lighting, a bell or call circuit, or a keyed function where access needs to be obvious at a glance.

It is a good match for refits where the boat already uses Vimar Eikon hardware and you want a consistent look across switches without changing the underlying mechanisms.

Maintenance and care

Clean with a soft cloth and mild soap solution. Avoid solvents and abrasive pads that can haze a matt finish or damage printed markings.
