Overview

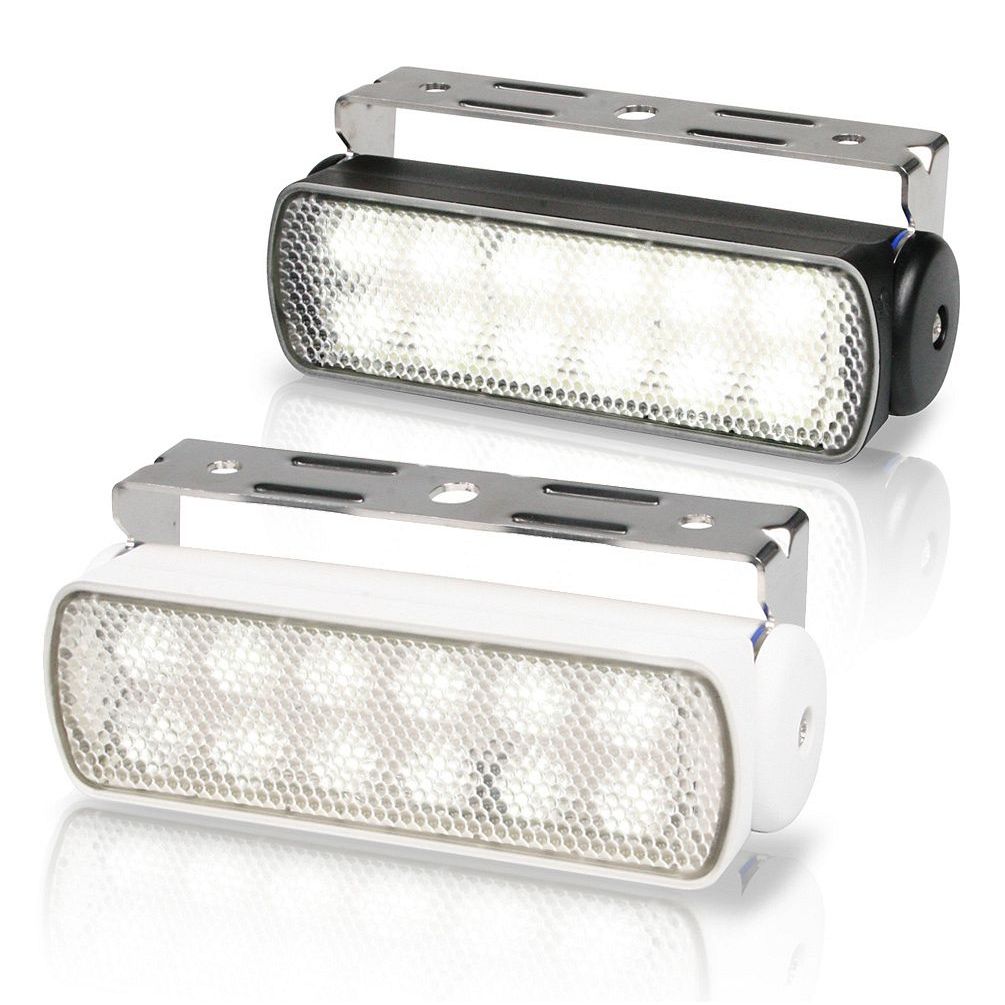

The Hella Marine Sea Hawk LED Floodlights is a bracket-mounted deck and spreader light range that runs on 9-33 V DC systems and draws 3 W (about 0.25 A at 12 V). It produces a 5500K white light, and the sealed IP67 build suits exposed mounting where spray, washdowns, and vibration are normal on board.

The housing is made from plastic that resists UV and impacts, paired with a Grilamid polyamide lens and a 316 stainless steel mounting bracket so you can aim the beam where it is useful. Each light is pre-wired with 2.5 m of twin-core tinned marine cable for a straightforward run back to a switch, relay, or distribution panel, and the unit weighs about 250 g including the cable.

This range is a solid match for boats that want low-draw working light on 12 V or 24 V, including spreader lights on a sailboat mast or task lighting over a cockpit, foredeck, or transom.

Key features

• Multivolt 9-33 V DC input for 12 V and 24 V onboard systems
• Low power draw at 3 W (about 0.25 A at 12 V) for longer runtime at anchor
• 5500K white light for clear visibility when docking, rigging, or working lines
• IP67 sealed construction for wet mounting areas and routine washdowns
• Pre-wired 2.5 m twin-core tinned marine cable for reliable connections
• 316 stainless steel bracket for adjustable aiming and corrosion resistance
• Plastic housing and Grilamid polyamide lens to avoid the chipping and corrosion issues common to metal-bodied lights
• Two beam patterns available (spot or spread) to match forward reach or wider close-range coverage

Variants

This light is offered in multiple configurations.

Variants differ by housing color (black or white) and beam pattern (spot or spread). Housing color mainly affects appearance on the boat, while the beam pattern sets how the light is distributed over the deck or into the distance.

• 980670201: Product Color Black, Type Spot Light. The spot pattern concentrates light into a narrower beam for forward reach from a mast, bow, or hardtop.
• 980670301: Product Color White, Type Spot Light. The spot pattern concentrates light into a narrower beam for forward reach from a mast, bow, or hardtop.
• 980670211: Product Color Black, Type Spread Light. The spread pattern throws a wider beam for close-range coverage over cockpits and working areas.
• 980670311: Product Color White, Type Spread Light. The spread pattern throws a wider beam for close-range coverage over cockpits and working areas.

Installation and setup

Mount the bracket to a solid surface, then aim the light before final tightening. In exposed locations, bed the fasteners and any cable pass-through to keep water out of the core. Route the cable with support points and a drip loop, and keep splices and connectors up high and dry whenever possible.

Wire the light to a 9-33 V DC supply through a properly protected circuit. Use marine-grade terminations and heat shrink, and confirm polarity before final power-up.

Compatibility and fit

With 9-33 V DC input, this light fits common 12 V and 24 V electrical systems without needing a separate converter. It is typically used as a deck floodlight, cockpit work light, or spreader light where an aimable bracket mount makes alignment easier.

Maintenance and care

Rinse salt residue off the lens and bracket during routine washdowns, and check that the bracket fasteners stay tight after the first few trips. Inspect the cable run for chafe points and keep connections clean so voltage drop stays low.
