Overview

The Vimar MASTER dimmer 120V is a push-button universal dimmer for 120 V~ 60 Hz AC lighting circuits, using phase-cut dimming for a mix of dimmable load types. It supports 40-400 W incandescent, 40-300 VA electronic transformers, 10-200 W dimmable CFL, and 3-200 W dimmable LED loads when the lamp or driver is rated for phase-cut dimming.

On board, this style of dimmer is commonly used on boats with 120 V AC cabin or saloon lighting fed from shore power or an inverter. The unit is rated IP40 and is meant for protected interior mounting, not exposed cockpit or deck locations where spray and washdowns are expected.

Key features

• 120 V~ 60 Hz universal dimming with phase-cut control
• Supported loads: 40-400 W incandescent, 40-300 VA electronic transformers, 10-200 W dimmable CFL, 3-200 W dimmable LED
• ON/OFF control plus dimming from the built-in push control
• Can be controlled from multiple points using normally-open (momentary) push buttons
• Minimum brightness adjustment to help prevent LED dropout at low levels
• Locator feature that remains visible in darkness
• Flush-mount device with screw terminals; click fixing; IP40 for dry interior areas
• Offered in three front colors: grey, white, and metal

Variants

This product is offered in multiple color finishes to match different switch plates and interior themes.

The variants differ by visible color only. Electrical rating, functions, and load handling remain the same across the range.

• VM19135.1.120: Color Grey. A neutral finish that blends well in service areas and understated interiors.
• VM19135.1.120.B: Color White. A clean look that suits bright headliners and light-colored bulkheads.
• VM19135.1.120.M: Color Metal. A metallic face that pairs naturally with stainless hardware and modern helm styling.

Compatibility and fit

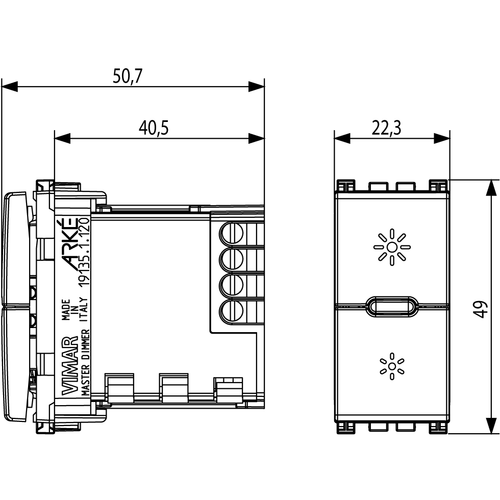

This is an in-wall, flush-mount module intended for Vimar ARKÉ wiring device installations. Allow clearance behind the panel: the device body is approximately 50.7 mm deep, with a front module size around 22.3 mm wide and 49 mm high. It is not intended for Isoset enclosures.

Installation and setup

Wiring is typically a line and load connection with optional normally-open push buttons for multi-point control. Keep all controlled lamps and drivers consistent on the same circuit, and confirm every load is explicitly rated as dimmable with phase-cut control before commissioning. Set the minimum brightness so LEDs stay stable without flicker at low levels.

Use on board

This dimmer is a good match for boats that run 120 V AC lighting in cabins, berths, or lounge areas and want a familiar wall control with low-level lighting for night passages or dockside living. It is not a controller for 12 V or 24 V DC lighting circuits.

Maintenance and care

Use a dry or lightly damp cloth on the front surface. Avoid spray cleaners and keep the device out of areas exposed to saltwater mist, washdowns, or direct weather.
