Overview

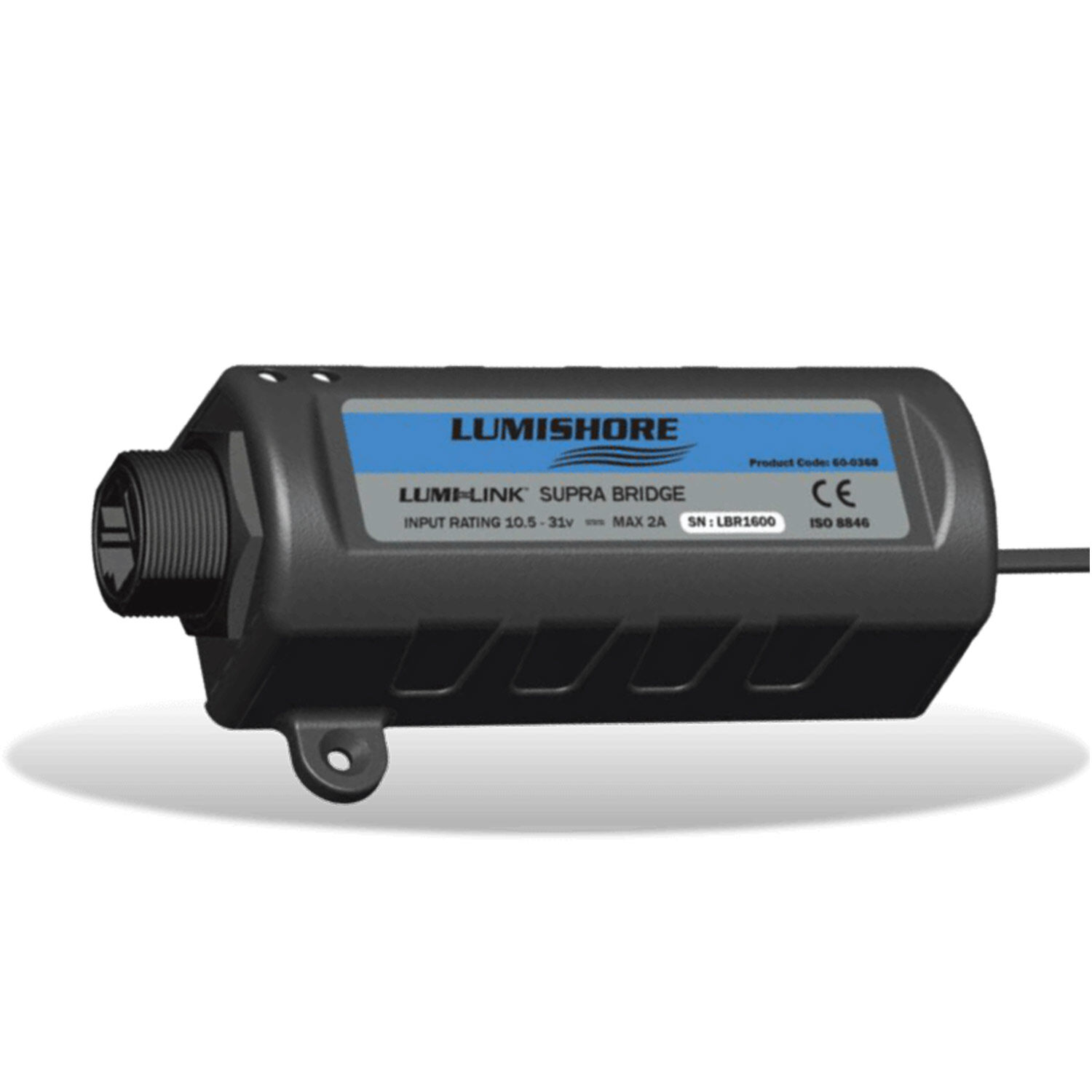

The Lumishore 010-04361-00 is a SUPRA Bridge Module that connects a Lumishore SUPRA underwater lighting system to helm control through a compatible MFD, an EOS-LUX-SUPRA display, and WiFi control from a connected device. It runs on 10.5 to 31 V DC for 12 V and 24 V boats, and the enclosure is IP67-rated for wet marine environments.

At 113 x 61 x 33 mm (4.45 x 2.4 x 1.3 in) not including cable glands, it fits neatly in an electronics bay near the helm or in a protected locker. This module is used with SUPRA TIX, THX, and SMX 54 underwater lighting systems and requires a SUPRA i-Connect hub for system integration.

Key features

• Works on 10.5 to 31 V DC power, covering both 12 V and 24 V electrical systems.
• IP67-rated housing with reverse polarity protection and load dump protection for real-world boat wiring.
• Max current draw is 2 A at 12/24 V.
• MFD compatibility includes Garmin OneHelm-enabled, Raymarine Axiom, Simrad NSO EVO2/EVO3 and NSS EVO3, GO7 XSR, GO9, GO12, and B&G Zeus3 Glass Helm, Zeus3, and Vulcan.
• Ethernet connection for MFD networks or EOS-LUX-SUPRA display, plus WiFi control via an MFD WiFi link or a local WiFi network.
• ABS case construction that is flame retardant and halogen free.
• 3-year warranty.

Compatibility and fit

This bridge module is for boats running Lumishore SUPRA underwater lighting, including TIX, THX, and SMX 54 systems. It is part of a SUPRA network and needs a SUPRA i-Connect hub in the system.

On the helm side, the module ties into an MFD network or a dedicated EOS-LUX-SUPRA display over Ethernet. Some MFD installations use brand-specific network conversion cabling, so plan that into your rigging before you start pulling wires.

Installation and setup

Provide clean DC power within the 10.5 to 31 V range and mount the module where the cable glands can be routed without hard bends. Pick a location away from heat sources and high vibration, and leave access to the SD card slot for future software updates.

Once powered, the built-in configuration routine can find and configure SUPRA fixtures on the network so control pages populate correctly on the MFD or display.

Use on board

This is a good match for boats that already have SUPRA underwater lights installed and want control from the helm without adding another standalone controller. It also helps when you want access from a phone or tablet over WiFi at the dock or at anchor, using the same bridge that is tied into the lighting network.

Maintenance and care

Check cable glands and Ethernet connections during routine service, especially after seasonal layup or heavy washdowns. If the system needs a firmware update later, the accessible SD card slot keeps it serviceable without pulling the module out of its mounting location.
