Overview

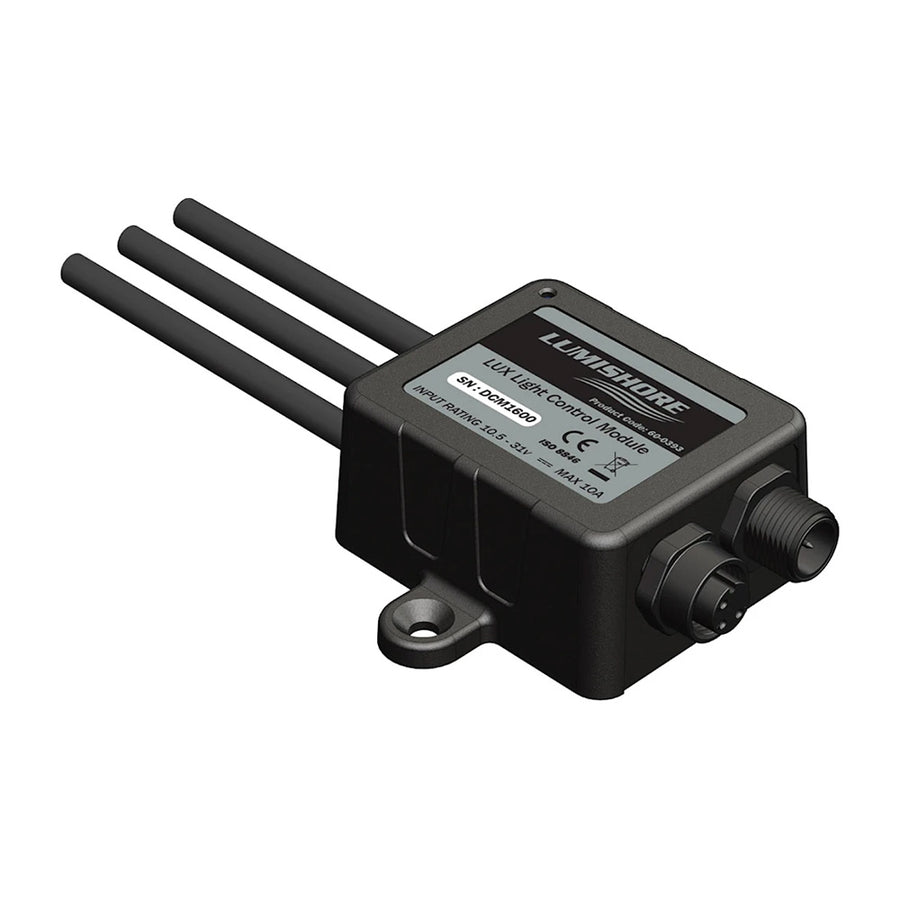

The Lumishore 010-04442-00 is a LUX light control module used to run compatible Lumishore LUX downlights, courtesy lights, and livewell lights with RGB plus tunable white control. It accepts 10.5 to 31 V DC, so it fits standard 12 V and 24 V boat systems. White tone can be adjusted from 2700K to 6500K for a warmer or cooler look at night.

The housing is IP68-rated, which helps when the module ends up in lockers, under gunwales, or other areas that may see spray or washdowns. It also supports Lumi-Link within the LUX Smart Lighting ecosystem, so it can be integrated into a broader LUX lighting setup.

On the electrical side, it includes protection features like soft-start, reverse polarity protection, surge protection, low-voltage protection, and automatic thermal rollback. ISO 8846 ignition protection is built in for installations where ignition protection is required.

Key features

• Compatible with Lumishore LUX Downlights, LUX Courtesy Lights, and LUX Livewell Lights
• Full-spectrum RGB control plus tunable white from 2700K to 6500K
• 10.5 to 31 V DC input range for 12 V and 24 V systems
• IP68-rated enclosure for locations that may see spray or washdowns
• Multi-channel internal driver with intelligent power management and soft-start behavior
• Built-in protections including surge, reverse polarity, inrush current, low-voltage protection, and automatic thermal rollback
• Power line noise suppression to reduce electrical noise on the supply
• ISO 8846 ignition protection

Installation and setup

This module is typically installed inline between your DC supply and the LUX fixtures it will control. Plan the mounting spot so the wiring stays supported and protected from chafe, and leave access for service later. Even with an IP68 housing, it is still worth keeping connectors and cable joins out of standing water and away from areas that stay hot.

Use proper cable support for vibration, add drip loops where cables drop down into compartments, and keep the unit secured so it cannot move and stress the connections underway.

Electrical and system integration

The module itself has a listed maximum current draw of 0.2 A on 12 V DC and 0.1 A on 24 V DC. Size the supply wiring and circuit protection for the complete lighting circuit, including the connected fixtures, and keep grounds clean to avoid flicker or control issues.

If the boat has sensitive electronics nearby, the built-in power line noise suppression helps, but good installation practices still matter: avoid sharing small-gauge feeds with high-load motors and keep cable runs tidy.

Compatibility and fit

This control module is meant for Lumishore LUX lighting products, specifically LUX downlights, courtesy lights, and livewell lights, and it ties into LUX Smart Lighting using Lumi-Link. It is not a general-purpose RGB controller for unrelated lighting types, so matching it to the LUX ecosystem is the key fit check before you buy.

Use cases on board

This setup makes sense when you want consistent color and white-tone control across cabin downlights, step lighting, toe-kick courtesy lights, or livewell lighting without mixing different control systems. It is a good match for boats that already use LUX Smart Lighting and want one module that handles both color and white temperature changes.

Maintenance and care

After installation, keep an eye on cable support and connector condition during routine checks. In saltwater use, a quick fresh-water rinse of the surrounding area after heavy washdowns and periodic inspection for corrosion or loosened fasteners goes a long way toward keeping lighting control trouble-free.
