Overview

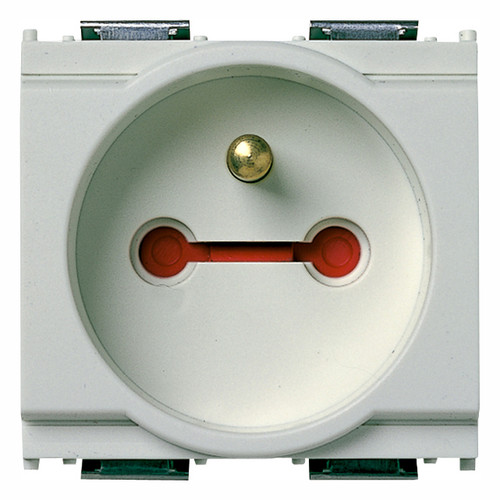

The Vimar Idea 16213 is a 2P+E French-standard (NF) SICURY socket outlet module for 250 V AC circuits, rated 16 A at 50-60 Hz, with a locking device for dedicated plugs.

It fits a 2-module opening in the Vimar Idea system and mounts flush in a bulkhead or panel, giving you a clean AC outlet in places like the cabin, galley, or nav station. With an IP20 rating and no lid, it is meant for dry interior locations rather than exposed or washdown areas.

Key features

• 2P+E French standard (NF) outlet format for AC branch circuits
• 16 A, 250 V~ rating with 50-60 Hz support
• SICURY enhanced contact protection plus a locking device for dedicated plugs
• Supplied with releasing device 01079 for unlocking the plug mechanism
• Flush-mounted, 2-module insert with snap mounting (engagement)
• Screw terminal connections for secure wiring
• Thermoplastic, halogen-free body with a matte finish
• IP20 rating for dry interior installations
• Front size 49.80 mm x 50.10 mm with 35.50 mm device depth
• Front label space for circuit identification

Variants

This socket outlet is offered in multiple color options for matching surrounding Vimar Idea devices and cover plates.

The electrical format and mounting style remain the same across the range (2P+E French standard, 16 A, 250 V~, IP20); the visible color is what changes.

• VM16213.B - Color: Ivory (similar to RAL 9001). A lighter tone that blends with off-white and cream interiors.
• VM16213.R - Color: Red (similar to RAL 3001). A high-visibility finish that stands out on service panels and dedicated circuits.
• VM16213 - Color: Gray (similar to RAL 7015). A subdued look that pairs well with gray Idea frames and modern interiors.

What's included

• Socket outlet module
• Releasing device 01079

Compatibility and fit

This is a modular insert intended for the Vimar Idea system and a 2-module position. For a finished installation you will need the matching Idea support and cover plate or frame used on your boat.

The outlet format follows the French standard, so it is suited to systems that use French-style 2P+E plugs and sockets. If your vessel is wired for a different shore-power outlet standard, match the plug type on board before ordering.

Installation and setup

Plan it as part of an AC branch circuit off your onboard distribution, with power isolated before any work starts. The module is flush mounted and snaps into the support, then the conductors land on screw terminals.

The locking feature is used with dedicated plugs that engage the mechanism, and the supplied releasing device is used to unlock when needed. Use the front label space to mark the circuit so guests and crew know what it feeds.

Use cases on board

This outlet makes sense in areas where vibration or foot traffic can pull a plug loose, such as behind the nav station, in the galley, or near a dedicated charger location. It is also a good match for boats that want a controlled, lockable outlet for specific equipment while keeping the face flush and easy to wipe down in a dry space.
