Overview

The Vimar Plana Series is a 1-module interchangeable button used on compatible Plana modular controls to give the switch face a clean look and a clear function label. It is a practical replacement part when a rocker has been scuffed, the symbol needs to change, or you want a consistent legend across a boat’s switch panel.

The front piece is made from halogen-free thermoplastic with a glossy surface, and it carries an IP40 protection rating for protected interior locations such as a cabin panel, chart table, or inside a console. A small monitoring window/light outlet is built into the button so it can align with mechanisms that use an indicator or locator light behind the face.

Key features

• 1-module interchangeable button for Vimar Plana modular plates and mechanisms

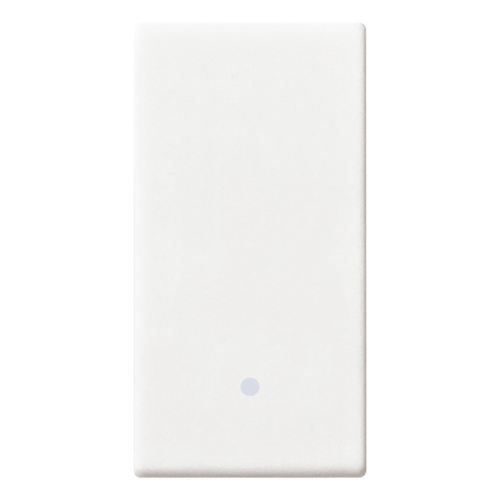

• Finish options include glossy white (RAL 9003) and silver, depending on configuration

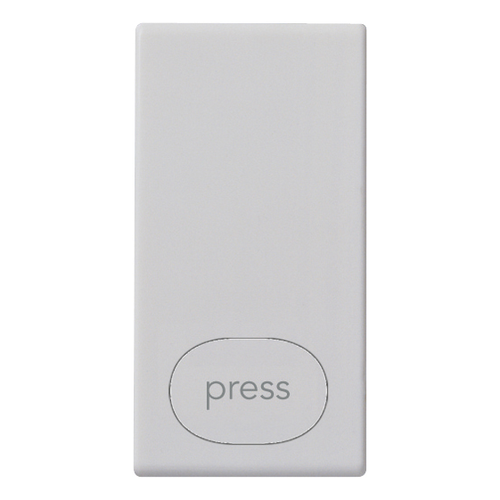

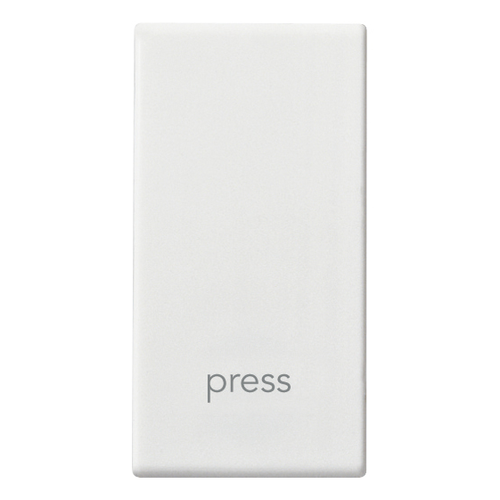

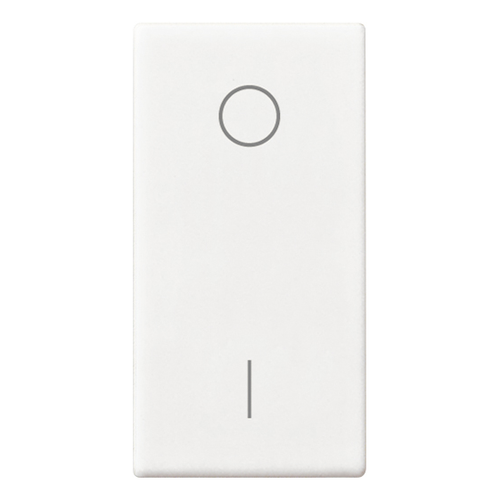

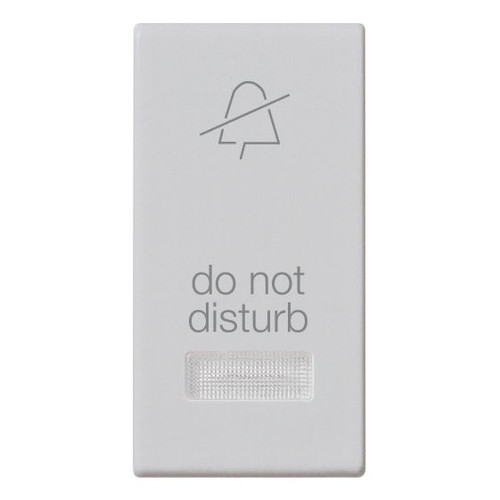

• Symbol options cover common onboard functions, including simple (no symbol), bell, key, light, O/I, press, and other markings by variant
• Halogen-free thermoplastic construction for cleaner material behavior in enclosed spaces
• IP40 rating suited to dry, protected panels; not intended for exposed spray or washdown areas
• Monitoring window/light outlet for use with indicator or locator light mechanisms behind the button
• Helpful for re-labeling circuits when refitting a helm switch bank or updating cabin controls

Variants

This item is offered in multiple configurations. The differences across the range are the front finish (white or silver) and the printed symbol or marking on the button face.

Some versions are plain with no symbol, while others carry a specific icon to match the circuit function. This makes it easier to keep a consistent look across adjacent modules while still giving each switch a clear, glanceable label.

Compatibility and fit

This is a Plana Series 1-module button, intended to be used with the matching Plana 1M modular mechanism and support hardware already installed in the plate. It is the front actuator piece, not the electrical switching mechanism.

If you are replacing an existing button, match the module size (1M) and choose the finish and symbol that matches the rest of the plate and the function you want shown on the panel.

Installation and setup

Isolate power to the circuit at the breaker panel before working on any switchgear. Remove the existing button from the mechanism, then fit the replacement button so the symbol orientation reads correctly when installed.

If your mechanism uses an indicator or locator light, confirm the monitoring window/light outlet lines up cleanly and is not blocked by the plate or adjacent modules.

Use on board

This button suits interior and protected helm locations where you want tidy labeling for lighting, signaling, or accessory circuits without adding external label tape. It is a good match for refits where the underlying mechanisms are staying in place and only the visible button faces need to be standardized.

Maintenance and care

Wipe with a soft cloth and mild soap solution. Avoid solvent cleaners that can haze glossy thermoplastic surfaces, and re-check the fit after heavy vibration or temperature swings common on boats.
