Overview

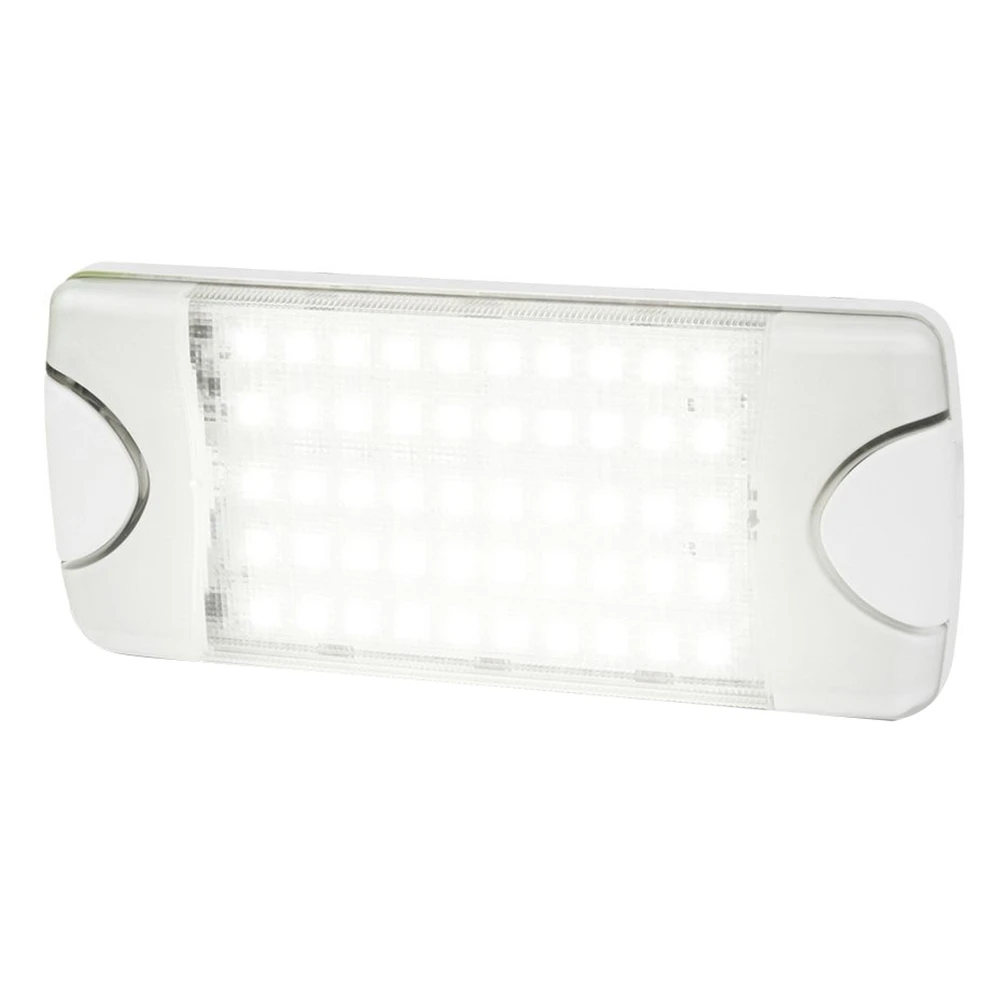

The Hella Marine DuraLED 50LP is a low-profile utility lamp for boats that need solid light in hard-working spaces like engine rooms, lockers, and lazarettes.

It runs on Multivolt 9-33V DC (works on 12V and 24V systems) with power consumption under 12W, and the housing is IP67 completely sealed for wet compartments and washdowns. The body measures 222 x 96 x 25 mm (8.74 x 3.78 x 0.98 in) with mounting holes spaced 193 mm (7.60 in) on center.

This is a good match for coastal cruisers, offshore boats, and workboats that want a sealed lamp that mounts flat and stays consistent across multiple compartments inside or out.

Key features

• Multivolt 9-33V DC operation for 12V and 24V electrical systems
• IP67 completely sealed construction for damp spaces and exposed mounting areas
• Surface-mount installation with a robust bush mount that takes up fastening load
• UV-resistant, enhanced impact acrylic lens
• Spike protection up to +500V and reverse polarity protection down to -700V
• Low EMC noise to help avoid interference with radio communications
• Approvals include CE and ISO 8846 ignition protection (plus RCM and UKCA)

Variants

This lamp is offered in multiple configurations so you can match the light output and beam spread to the space you are lighting.

The options in this range vary by light color (white, blue, or white and red) and by beam pattern (standard or extra wide). Across the series you still get a low-profile, IP67 sealed lamp with Multivolt 9-33V DC operation.

• 980629501: White light with an extra wide beam pattern. The wider spread helps when you want to wash a larger area with light, such as a locker, lazarette, or under-gunwale storage.
• 980629001: White light with a standard beam pattern. The standard pattern keeps the light more concentrated, which suits smaller work areas and equipment bays.
• 980629111: Blue light with a standard beam pattern. Blue output is commonly used where you want colored utility lighting while keeping the same mounting footprint.
• 980604061: White and red light with a standard beam pattern. This version gives you access to white light for general tasks and red light when you prefer lower-glare lighting in a cabin or cockpit.

Installation and setup

The DuraLED 50LP is a surface-mount lamp, so it installs on a flat panel without a large cutout. Plan for an overall footprint of 222 x 96 mm and confirm the 193 mm mounting-hole spacing works with your backing surface and fastener access.

The lamp comes pre-wired with tinned twin-core marine cable; cable length depends on the version. Route the cable away from sharp edges and heat sources, and make connections in a dry, protected location whenever possible.

Electrical and system integration

Multivolt 9-33V DC makes it straightforward on either a 12V or 24V boat, including systems that see voltage fluctuations. Built-in spike and reverse polarity protection adds extra margin, but it should still be installed on a properly protected circuit with a suitable switch or control at the helm or distribution panel.

Use on board

This lamp is often installed where vibration, damp air, and occasional spray are part of normal life: engine rooms, storage lockers, lazarettes, utility compartments, and under-deck areas. If you are standardizing lighting across the boat, the different beam patterns and color options help keep a consistent look while tailoring how the space is lit.

Maintenance and care

Because the lamp is IP67 sealed, routine care is mostly about keeping the lens clean. Rinse off salt residue and wipe the lens with a soft cloth to maintain light output, especially in lockers or machinery spaces where grime builds up quickly.
