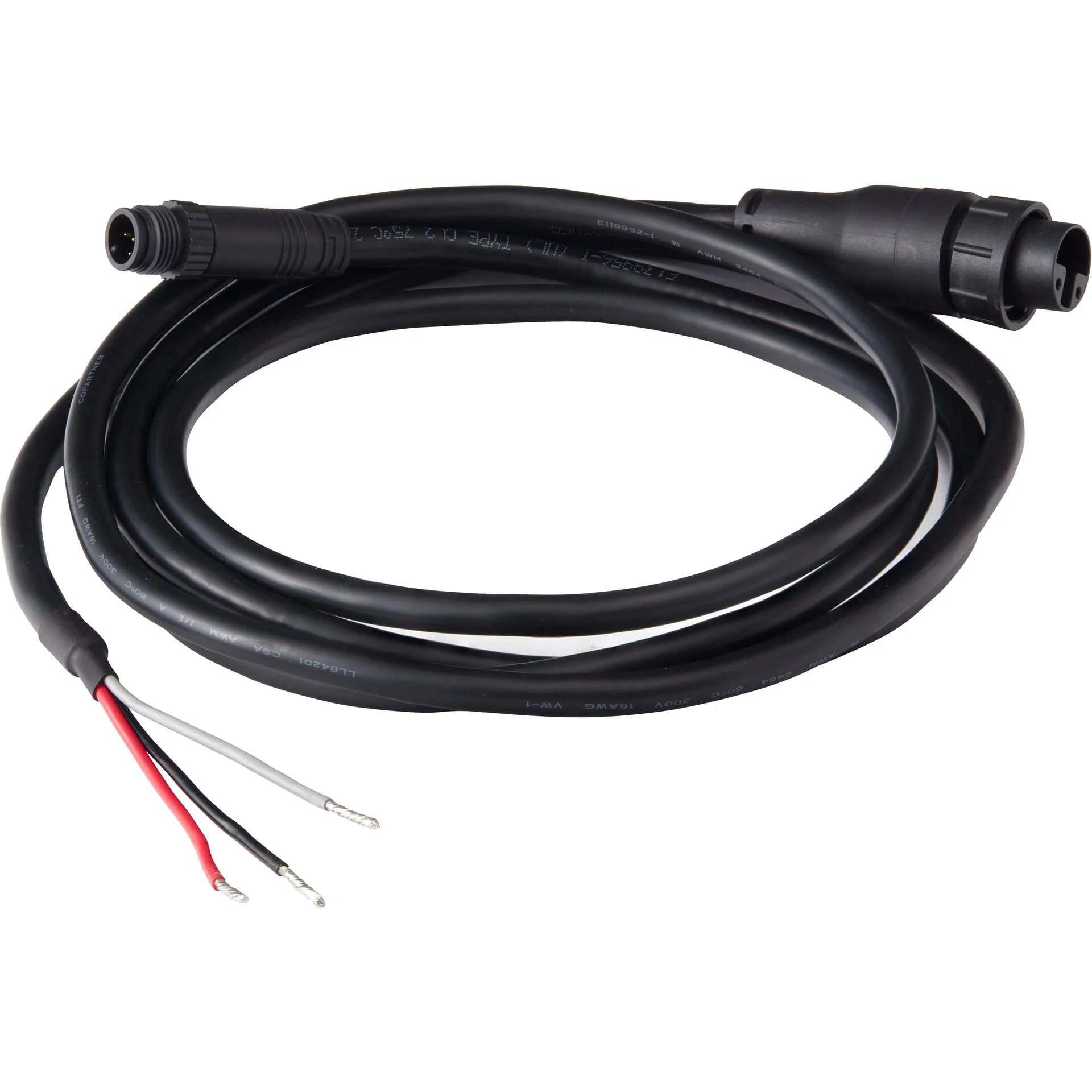

Raymarine Axiom Power Cable, For Axiom Units, 1.5m, NMEA 2000, Straight Connector

Overview

The Raymarine R70523 is a straight combined power and NMEA 2000 cable for Raymarine Axiom and Element displays. It is used when the display needs its power connection and network data lead brought into the helm, console, or electronics area with a straight connector rather than a right-angle cable.

The cable is 1.5 m long, giving enough reach for many dash and bracket-mount installations without leaving excessive cable to coil behind the display. For Element installations, the assembly includes a 1.5 m power lead and a 0.5 m NMEA 2000 lead, which helps keep the power feed and network connection organized during rigging.

This is the right type of replacement or installation cable when adding a compatible Raymarine display to a boat network, replacing a damaged display cable, or cleaning up a helm refit where the display must tie into both boat power and an NMEA 2000 data backbone.

Key features

• Combines display power and NMEA 2000 data connection in one cable assembly, reducing separate cable runs behind the helm.
• 1.5 m cable length suits many console, dash, and bracket-mount installations where the power source and network backbone are close to the display.
• Straight connector layout works well where there is enough clearance behind the unit and a low-profile right-angle exit is not required.
• Compatible with Raymarine Axiom and Element display installations that call for this power and NMEA 2000 cable style.
• Useful as a replacement cable for service work, electronics upgrades, and refits where the original display cable is missing or damaged.

Installation and setup

Route the cable so the connector is not carrying strain from the cable bundle, then secure the run with proper support behind the helm. Leave a service loop where space allows, especially on bracket-mounted displays that may be removed for seasonal storage or service.

The power side should be connected through the vessel’s protected DC distribution according to the display installation requirements. The NMEA 2000 side should be connected to the vessel network with the correct backbone layout, termination, and power arrangement already in place.

Compatibility and fit

This cable is for Raymarine Axiom and Element display setups that use the straight power and NMEA 2000 connection format. Before ordering, match the cable style to the display model and confirm that a straight connector has enough clearance behind the mounting location.

It is a practical fit for helm stations, center consoles, flybridges, and other protected electronics locations where Raymarine displays need both DC power and network communication with other onboard instruments.
