Overview

The Vimar Eikon 20058 is a built-in push button module with two independent buttons, 1P NO + 1P NC contacts, ON and OFF symbols, a 10 A rating, and 250 V~ operation. Its body measures 22.3 x 49 x 29.5 mm and uses snap fixing, which suits compact control panels where clear on and off marking matters.

On a boat, this format makes the most sense in protected interior positions such as cabin switch banks, enclosed helm panels, or utility areas where an IP40 device is appropriate. It is not a sealed switch for open deck or washdown locations, and the listed rating is for 250 V~ circuits, so 12V or 24V DC installations should be checked against the actual load and circuit design rather than assumed from the AC rating alone.

Key features

• Two independent push buttons with 1P NO + 1P NC contact arrangement and printed ON/OFF symbols
• 10 A, 250 V~ electrical rating for control duties that match the circuit specification

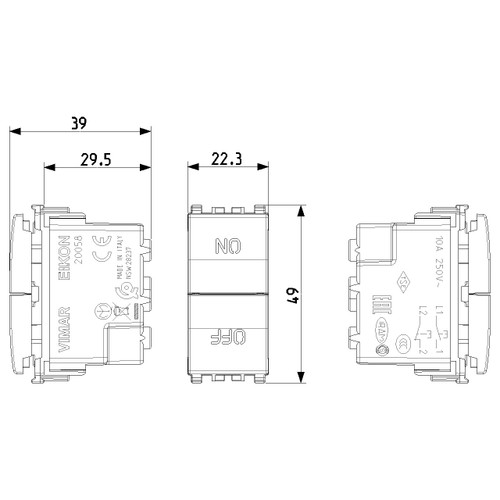

• Built-in snap mounting with a 22.3 x 49 x 29.5 mm body for tidy panel integration
• IP40 thermoplastic housing with matt finish and halogen-free construction
• Information surface for circuit marking when panel identification is needed

Variants

This product is offered in three colour configurations within the same Eikon 20058 format.

Across these variants, the switching arrangement, ON/OFF symbols, 10 A 250 V~ rating, IP40 protection, and body dimensions remain the same. The visible difference is the finish.

• VM20058.B: White. This version keeps the control light in appearance and suits Eikon layouts built around white devices and trim.

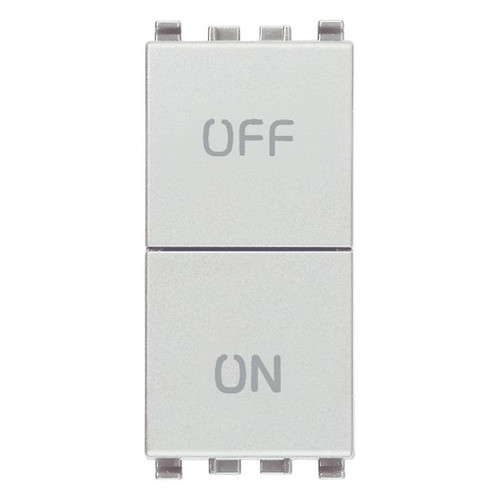

• VM20058.N: Silver. This version uses the same switching format with a silver finish for installations that already use the Eikon Next look.

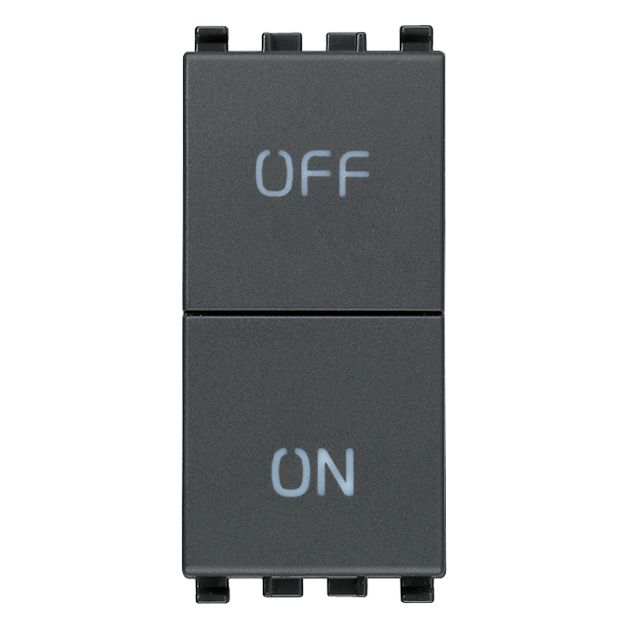

• VM20058: Grey. This version keeps the same function in a grey finish that blends more easily into darker panels and service areas.

Compatibility and fit

This push button is part of the Vimar Eikon device range, so it makes sense when you are replacing an existing Eikon control or keeping a panel consistent with other Vimar switchgear on board. Before ordering, check the surrounding Eikon hardware and the finish already installed in the area.

Installation and use on board

The separate ON and OFF symbols are useful where crew need a clear command pair rather than an unmarked button. That suits protected panel functions such as interior lighting groups, relay-controlled circuits, or utility controls where quick identification matters.

The unit does not include built-in lighting. In low-light helm or cabin spaces, night visibility will depend on the panel lighting around it.
