Overview

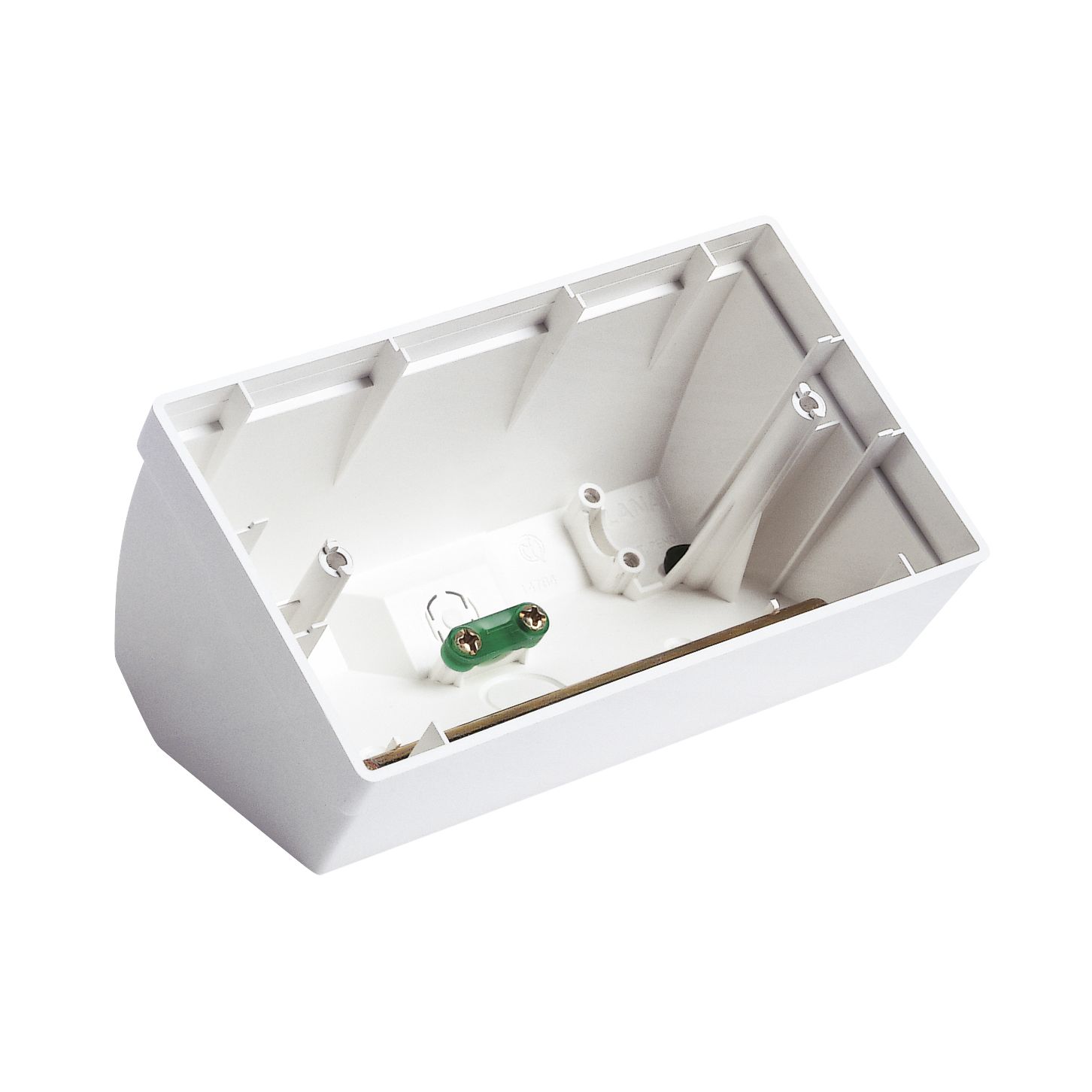

The Vimar VM14784 is a 4-module table mounting box in white for building a clean, surface-mounted switch or outlet point on board where a flush box is not practical. It mounts horizontally and is sized at 142.50 mm wide, 80.00 mm high, and 67.60 mm deep, which helps when you are checking clearance on a nav table, helm side panel, or bulkhead.

This enclosure is rated IP20, so it belongs in dry interior areas where it will not see spray or washdowns. The housing is plastic and halogen-free with a matt finish in RAL 9003 (white), and it includes a cable entry opening for bringing conductors in from behind or from a routed cable path.

It is supplied as the box only and is meant to be completed with the matching mounting frame and cover plate for a 4-module setup.

Key features

• 4-module table mounting box for horizontal installations
• IP20 protection level for dry interior locations
• Halogen-free plastic housing with a matt white finish (RAL 9003)
• Cable entry opening for straightforward wire routing into the enclosure
• Overall size: 142.50 mm (W) x 80.00 mm (H) x 67.60 mm (D)
• Supplied as the box only and completed with a compatible mounting frame and cover plate

Compatibility and fit

This box is intended for a 4-module arrangement using Vimar modular switching components and the matching frame and plate. If you are replacing an existing installation, confirm the module count and series so the frame and cover plate match the devices you are fitting.

Use the overall dimensions to check that the enclosure will not interfere with drawers, lids, throttle panels, or chart table hinges. The 67.60 mm depth is also worth checking if you need room for wire bends behind the devices.

Installation and setup

Mount the box on a stable, flat surface and route wiring so it is protected from chafe and vibration. Where conductors pass through the cable entry, add strain relief and edge protection so movement over time does not damage insulation.

Since IP20 is intended for indoor use, place it where it stays dry and away from direct exposure to salt spray. If the mounting surface is part of an exterior structure, seal fastener holes appropriately to prevent moisture from tracking into the panel core.

Use on board

This style of table box makes sense for refits and new installations where you want a neat control point at a nav station, inside a protected helm area, or on an interior bulkhead without cutting a large recess for a flush box.

It is a good match for boats that need tidy cable management and a finished look for modular switches, outlets, or controls in interior living and working spaces.
