Vimar Plana 8-Module Cover Plate, 142.5 x 151 mm, Halogen-Free Technopolymer
Overview
The Vimar Plana Series is an 8-module (4+4) cover plate that finishes a Plana modular switch or outlet group with a clean, flush face. It measures 142.50 mm wide by 151.00 mm high with a 9.00 mm depth, mounts horizontally or vertically, and is rated IP00, so it belongs in dry, protected locations.
On board, this type of plate is typically used for interior switch banks at the nav station, cabin entry, galley, or inside a sheltered console where the wiring devices sit in a flush-mounted box. The plate is made from halogen-free thermoplastic and fixes in place with clamp mounting on the matching Plana support frame, with a label space for circuit identification.
Key features
- 8-module (4+4) cover plate format for Vimar Plana modular wiring devices
- Mounting direction: horizontal and vertical (4 units horizontal, 2 units vertical)
- Halogen-free thermoplastic construction with a glossy surface finish
- Clamp mounting for a secure fit on the compatible Plana support frame
- IP00 rating for use in dry, protected interior areas
- Overall size: 142.50 mm width, 151.00 mm height, 9.00 mm depth
Variants

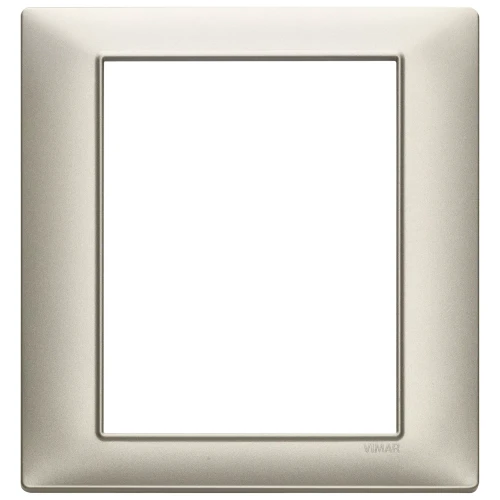

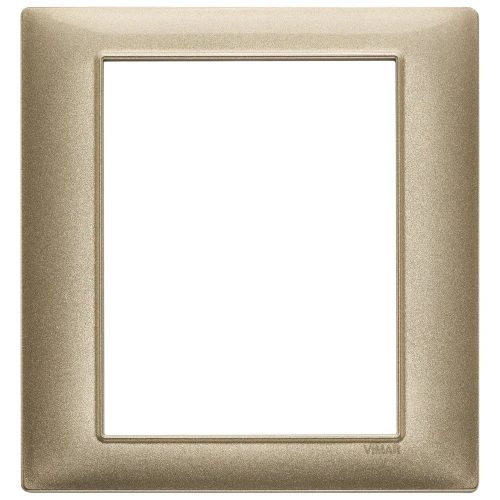

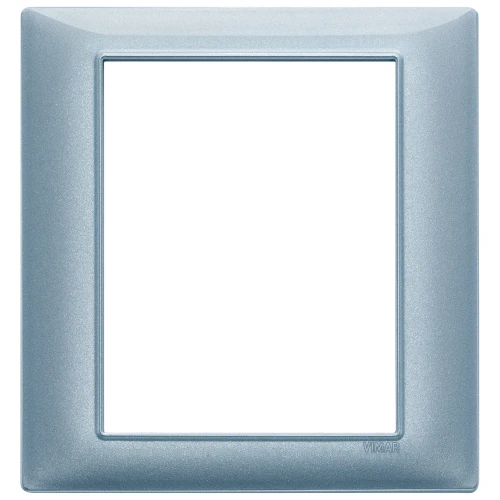

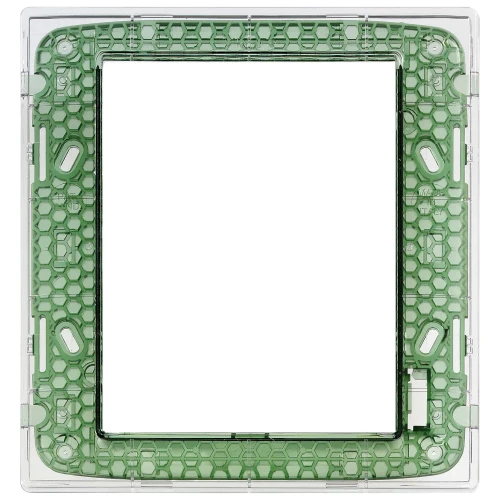

This cover plate is offered in a wide range of colors and surface finishes, including solid neutrals, wood-look tones, matt metallic looks, polished metallic looks, and Reflex colorways.
Across the range, the format stays 8 modules (4+4) with the same mounting orientation and overall dimensions; the visible color and finish are what change between options.
Compatibility and fit
This plate matches the Plana modular layout for 8 units and can be installed in either orientation depending on the box and device arrangement. It is suitable for built-in installations and ducting systems that accept the Plana mounting frame and support for an 8-module opening.
Installation notes
Install the wiring devices and support frame first, confirm the devices sit square and flush, then align the plate and press it into place so the clamp mounting engages evenly. In a boat, keep the mounting box dry and supported, and avoid routing wet or dripping lines above the installation area.
Use on board
This is a practical match for refits and new builds that standardize on Vimar Plana modules for interior switching and control panels where an 8-module layout is needed. It is not a splash cover, so exposed cockpit and washdown areas should use an enclosure with the appropriate ingress protection.
Maintenance and care
Clean with a soft cloth and mild soap and water. Avoid abrasive pads and strong solvents, which can dull glossy, metallic, and special-effect finishes over time.
We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
