Overview

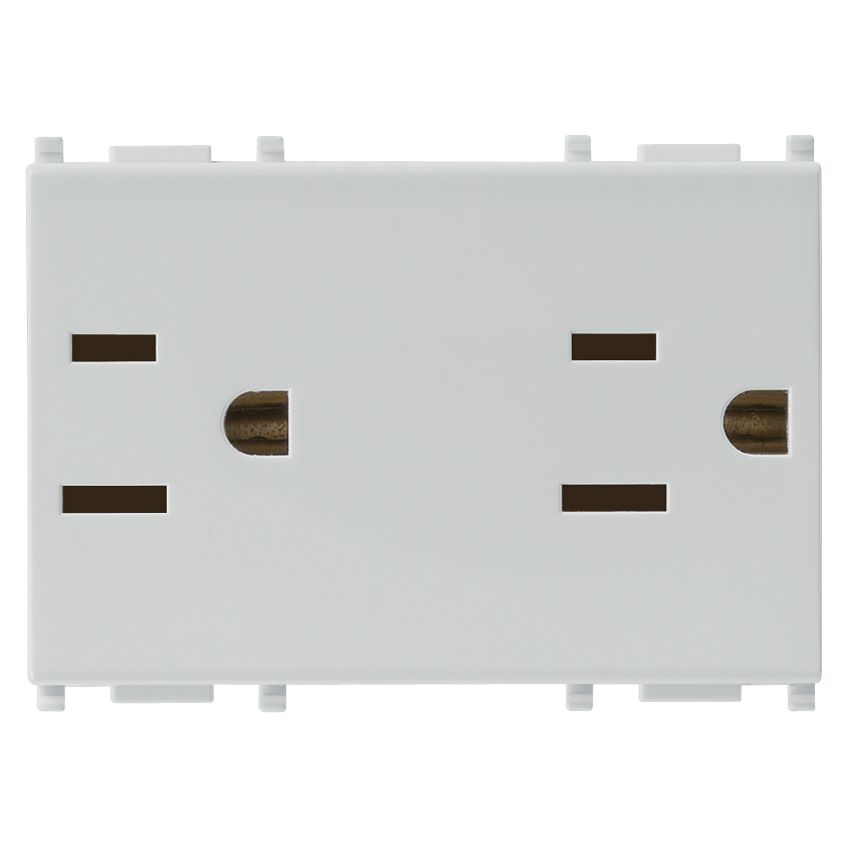

The Vimar Plana Series is a flush-mounted range of duplex 2P+E socket outlets for 127V AC systems, rated 15A and compatible with 50/60Hz service. It uses the American and Saudi Arabian outlet format and places two receptacles in one 3-module device.

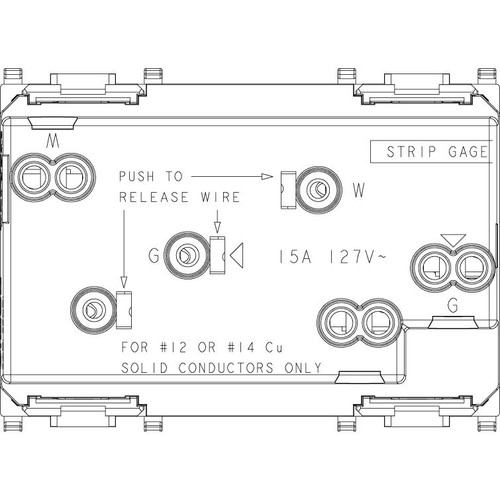

The body is halogen-free thermoplastic with screwed terminal connections, and the front is IP20 rated. On board, that points it toward protected interior spaces such as cabins, saloons, and nav stations rather than exposed areas. The outlet measures 67.30 mm wide, 49.00 mm high, and 35.50 mm deep.

Key features

• Two 2P+E receptacles in one 3-module outlet body
• Rated 15A at 127V AC with 50/60Hz frequency compatibility
• American and Saudi Arabian outlet format
• Flush-mounted construction with screwed terminal connections
• Halogen-free thermoplastic body with a glossy front surface
• IP20 protection and overall size of 67.30 x 49.00 x 35.50 mm for interior panel planning

Variants

This product is offered in two finish options within the same Plana outlet format.

Across both variants, the outlet layout, 15A 127V rating, 50/60Hz frequency range, 3-module size, flush mounting, screwed terminals, IP20 protection, and overall dimensions stay the same. The difference is the visible finish and surface treatment.

• VM14246: White finish, RAL 9003, untreated surface. This keeps the outlet close to the look of white cabin panels and light interior trim.
• VM14246.SL: Silver finish, RAL 9006, lacquered surface. This gives the face a silver look for darker trim or mixed-finish interiors.

Installation and fit

On a boat, this kind of outlet makes sense where the AC system is already set up for 127V service and US-style plugs are used for cabin appliances, chargers, or personal electronics. Because the face is IP20 and has no lid, it belongs in dry interior joinery rather than in open cockpits, exposed helms, or other locations that see spray or washdowns.

It suits interior AC points that need two receptacles in one location without moving to a larger device. Before ordering, check that the mounting point is set up for a 3-module flush device and that a qualified marine electrician is handling the wiring termination and circuit protection.
