Designed for Secure and Efficient Operation

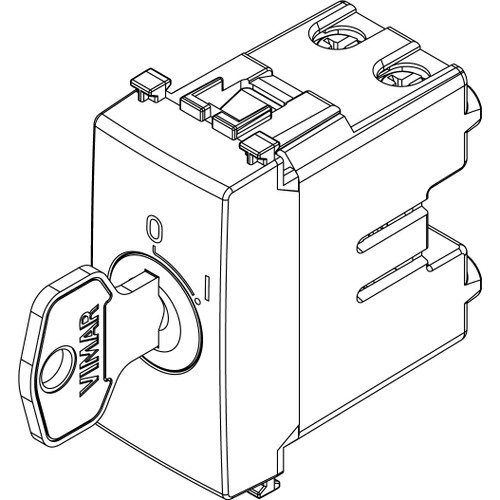

The Vimar 2P NO 16A Push Button with Key is a robust and versatile device crafted for dependable performance in various environments, including marine and navy applications. Featuring a key-operated mechanism, this push button ensures controlled activation, providing added security and precision. The key is removable in the OFF position, delivering an additional layer of safety and control in high-demand applications.

Built for Performance and Durability

This push button is engineered to handle a nominal voltage of 250 V and a rated current of 16 A, making it suitable for demanding electrical systems. The device is halogen-free, ensuring safety and environmental compliance, and is constructed from high-quality thermoplastic material for durability. Its flush-mounted design and snap fastening system make installation straightforward and secure.

Technical Specifications

• Nominal Voltage: 250 V
• Rated Current: 16 A
• Number of Poles: 2
• Material: High-quality thermoplastic
• Halogen-Free: Yes
• Surface Protection: Untreated or lacquered, depending on the variant
• Surface Finish: Matt
• Mounting Method: Flush-mounted
• Fastening Type: Snap engagement
• IP Rating: IP40
• Dimensions:Width: 22.30 mm
• Height: 49.00 mm
• Depth: 43.50 mm

Available Finishes

The push button is available in a matt finish with different surface protections to suit specific environmental requirements.

Highlights

• Key-operated mechanism for controlled and secure operation
• Key removable in the OFF position for added safety
• Robust thermoplastic construction ensures durability and halogen-free safety compliance
• Flush-mounted with snap fastening for easy installation
• Rated for 250 V and 16 A, suitable for high-demand electrical systems
• Available in multiple finishes and colors for versatile applications

Variations for Specific Needs

The Vimar 2P NO 16A Push Button is available in various models to suit your preferences:

• VM19086.CU: Grey color, 000 unified key type, untreated surface
• VM19086: Grey color, key type removable, untreated surface
• VM19086.CU.M: Metal finish, 000 unified key type, lacquered surface
• VM19086.M: Metal finish, key type removable, lacquered surface
• VM19086.CU.B: White color, 000 unified key type, untreated surface
• VM19086.B: White color, key type removable, untreated surface

Choose the Vimar 2P NO 16A Push Button for a secure, efficient, and reliable solution tailored for marine and high-performance applications.
