Overview

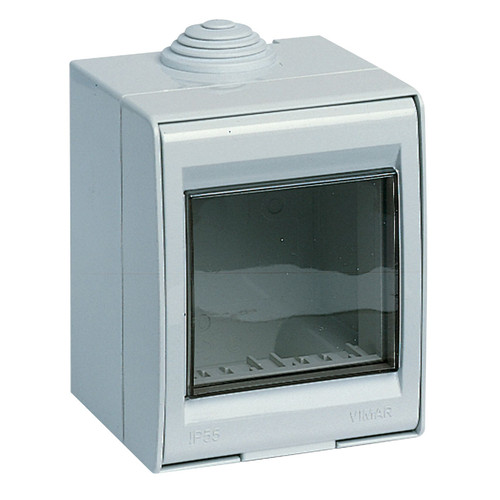

The Vimar VM13521 is an IP55 surface-mount enclosure sized for one 8000 standard module, finished in RAL 7035 grey.

It is used when you need to mount a single Vimar 8000 Series control on a bulkhead or panel and keep it protected in areas that see spray, dust, and routine wipe-downs. The insulating plastic body keeps the enclosure from corroding and helps avoid unwanted contact with live parts when installed correctly.

Key features

• IP55-rated enclosure to help protect a single module installation from dust and water jets
• Surface-mount format for one Vimar 8000 standard module
• RAL 7035 grey finish for a clean match with other 8000 Series hardware
• Plastic construction with insulating properties for marine and industrial mounting locations
• Compact footprint that works well for retrofits when you cannot recess a box into the structure

Compatibility and fit

This enclosure is built around the 8000 standard module format in a 1-module size. Before ordering, confirm the module style on your boat is 8000 standard and that your chosen mechanism and front hardware are intended for the same system.

If you are replacing an older surface box, check the available footprint on the mounting surface and plan cable routing so conductors are not forced into tight bends behind the module.

Installation and setup

Mount it on a flat, rigid surface where the cover can open fully and the wiring can enter cleanly. On boats, that usually means a helm side panel, cockpit coaming, companionway bulkhead, or a sheltered area near deck equipment where a surface box is easier than cutting in a recess.

For wet areas, take the time to seal the cable entry and fasteners so water cannot track behind the enclosure. Leave a small drip loop in the cable run when possible so moisture does not run straight into the back of the box.

Use cases on board

This is a good match for boats already using Vimar 8000 Series modules and needing a small, splash-resistant surface enclosure for a single control point. It is commonly used for one-off additions like a switch near a transom door, a control by the cockpit table, or a utility point in a sheltered locker.

Maintenance and care

Rinse salt residue off with fresh water and wipe the enclosure down during routine cleaning. If the box is installed in a high-traffic spot, check occasionally that the cover closes properly and that the mounting screws stay snug after vibration and temperature changes.
