Overview

The Vimar Supernova Series is a German/French S31 2P+E axial plug range for portable 250V AC connections that need a straight cable exit. Across the range, the plug is rated at 16A and 250V, uses screw terminals, and has an IP20 thermoplastic body with a straight plug format.

On board, this type of plug makes sense where portable AC equipment or replacement leads need a German/French standard connection in a protected area. The IP20 rating means it belongs in dry interior spaces such as cabins, lockers, or service areas rather than exposed deck locations or washdown zones.

Key features

• German/French S31 2P+E plug format for portable 16A, 250V AC connections
• Axial cable entry keeps the cable running straight out of the back of the plug body
• Screw-terminal connection for wired assembly and service work
• Thermoplastic construction with IP20 protection for dry, protected use areas
• Available in black or white while keeping the same core electrical and connection format

Variants

This product is offered in two color configurations.

The variation is the housing color. The 16A 250V rating, German/French S31 format, axial cable entry, straight body format, screw-terminal connection, and IP20 protection remain the same across the listed versions.

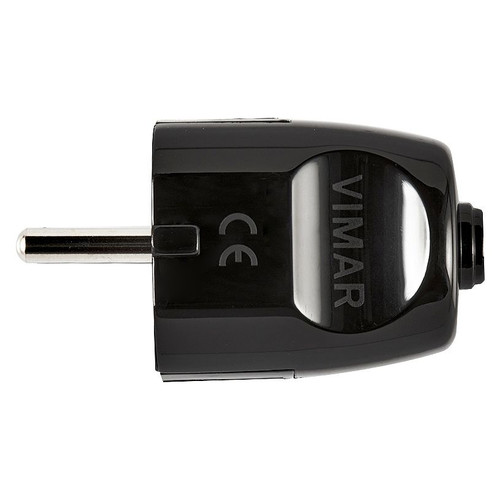

• VM00231: Color Black. This version blends more easily with darker socket areas, cable runs, and trim.

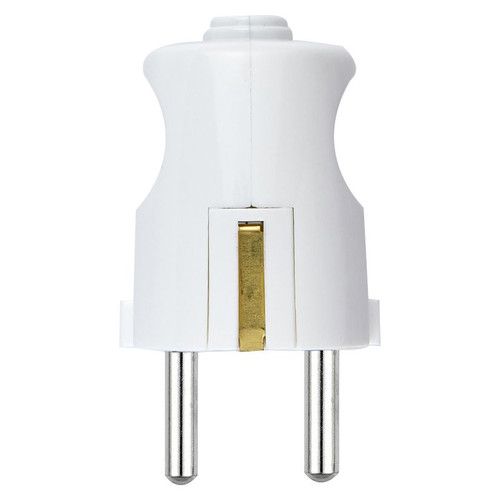

• VM00231.B: Color White. This version suits lighter interiors and is easier to spot in lockers, cabins, and service points.

Installation and fit

This is a straight plug with axial cable entry, so the lead exits in line with the plug rather than at a right angle. That matters when you are checking rear clearance behind the plug and how the cable will run through a locker, bulkhead opening, or service space.

The screw-terminal layout is well suited to replacement work and portable lead assemblies handled by a qualified installer. Before ordering, confirm that the mating socket uses the same German/French standard and that the connection point is in a dry location because this plug is rated IP20.

Use on board

This range is a good match for boats that carry portable AC appliances or service leads with a German/French style connection and need a straight-entry plug rather than a 90 degree body. It fits better in cabins, galleys, chart tables, and other protected spaces than in open areas where spray, rain, or washdowns are part of normal use.
