Overview

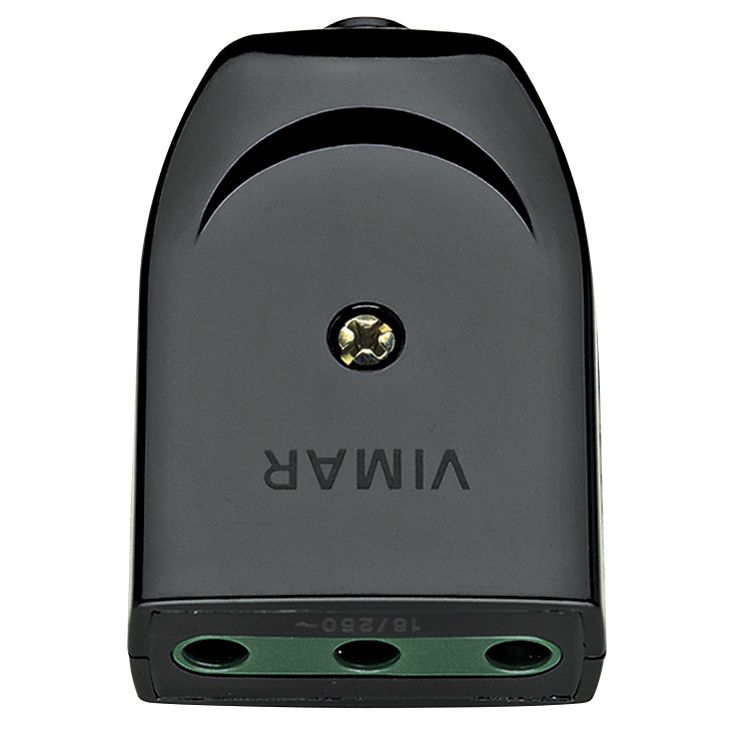

The Vimar Supernova Series is a range of portable 2P+E P17 axial socket outlets for 16 A, 250 V AC connections, offered here in black or white. It uses the Italian P17 format, a straight axial cable entry, and screw terminals, so it fits installations where the cable needs to leave the outlet in line with the body.

The body is thermoplastic and halogen-free, and the outlet is rated IP20. On a boat, that points to interior spaces kept dry, such as cabins, lockers, or enclosed service areas, rather than exposed deck positions or washdown zones.

Key features

• Italian P17 portable socket outlet with 2P+E configuration
• Rated for 16 A and 250 V AC
• Axial cable entry for straight in-line cable routing
• Screw-terminal connection for direct conductor termination
• Thermoplastic body with halogen-free construction
• IP20 protection for interior locations kept dry and sheltered

Variants

This product is offered in two color configurations within the same Supernova P17 axial outlet format.

The listed variants differ by housing color. The 2P+E layout, 16 A current rating, 250 V rating, axial cable entry, and screw-terminal connection remain the same across both versions.

• VM00222 / Color: Black. This finish blends in more easily with dark switch panels, equipment lockers, and trim.
• VM00222.B / Color: White. This finish stays more visible against light liners, bulkheads, and service spaces.

Compatibility and fit

This is a portable outlet for a matching 2P+E Italian P17 plug, not a panel socket. The straight insert direction and axial cable exit help when cord routing needs to stay in line, which is useful in tighter service spaces and behind access panels.

It is a sensible match for refits and service replacements on boats that already use this connector standard. For open deck locations or any area that sees spray or regular washdowns, the IP20 rating means a more protected mounting position or a different outlet type would be needed.
