Overview

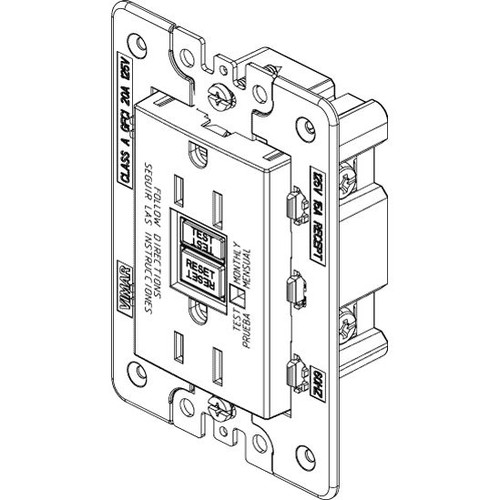

The Vimar Idea 16296 USA+GFCI socket outlet is a double 2P+E 15 A 125 V American-standard receptacle with integrated GFCI for flush-mounted installations on boats using 125 V, 60 Hz AC service. It has a built-in mounting frame, screw terminal connections, and a front size of 73 x 107 mm with 41.1 mm depth.

Because it is rated IP20, this outlet belongs in protected interior spaces rather than exposed deck or washdown areas. It is a sensible fit for cabins, saloons, galleys, and other enclosed locations where a duplex outlet with ground-fault protection is needed at the point of use.

The body is made from halogen-free thermoplastic with a matt finish. A 3-module cover plate is required to complete the installation.

Key features

• Double 2P+E receptacle rated 15 A, 125 V, 60 Hz with integrated GFCI
• Rated fault current of 6 mA
• Flush-mounted body with built-in mounting frame and screw terminal connections
• Front dimensions of 73 x 107 mm with 41.1 mm device depth
• IP20 protection for protected interior mounting locations
• Halogen-free thermoplastic body with matt surface finish
• Requires a separate 3-module cover plate to finish the installation

Variants

This product is offered in two color configurations.

Across both versions, the electrical rating, GFCI protection, mounting method, and overall dimensions stay the same. The change between variants is the visible finish color.

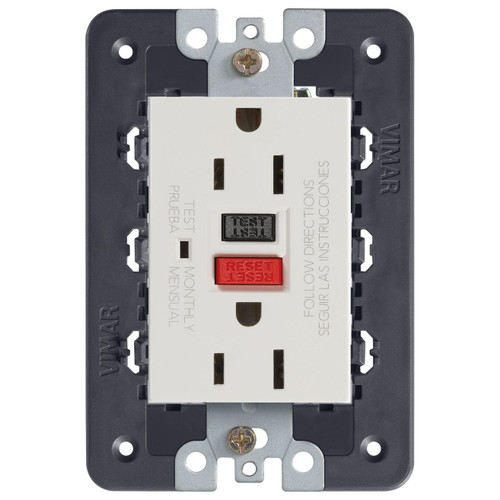

• VM16296.B: Color Ivory. This is the lighter finish in the range and suits interior panels and trim where a light outlet face is preferred.

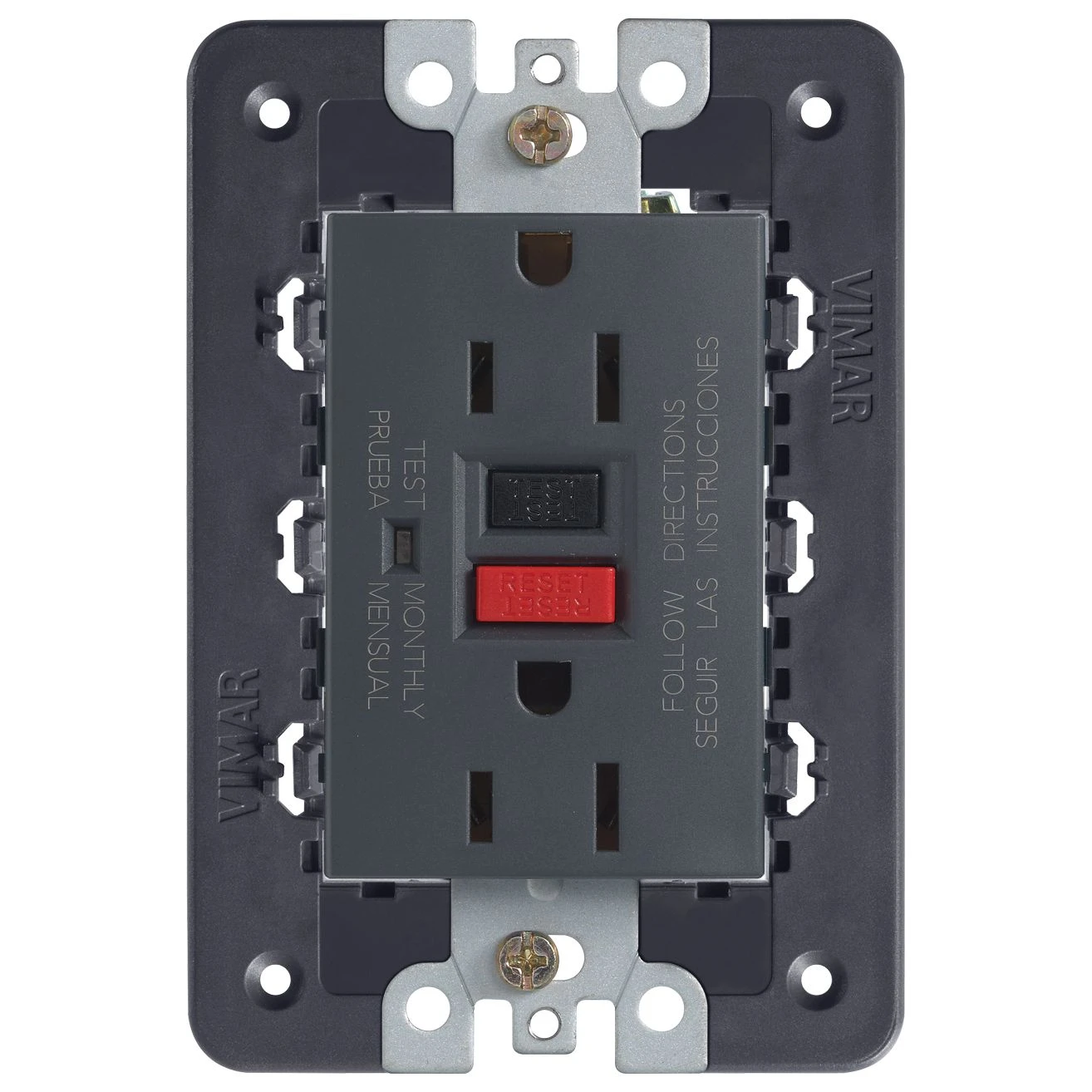

• VM16296: Color Gray. This is the darker finish in the range and blends more naturally with gray switch plates and darker interior panels.

Installation and fit

This outlet fastens with screws and is intended for flush mounting. When planning a replacement or new panel layout, allow for the 41.1 mm device depth and for the screw-terminal wiring space behind the mounting surface.

It is a good match for boats that already use the Vimar Idea system and need an American-standard AC outlet with GFCI at the receptacle. It is not a low-voltage DC device, so it should be used only on compatible 125 V AC circuits.
