Overview

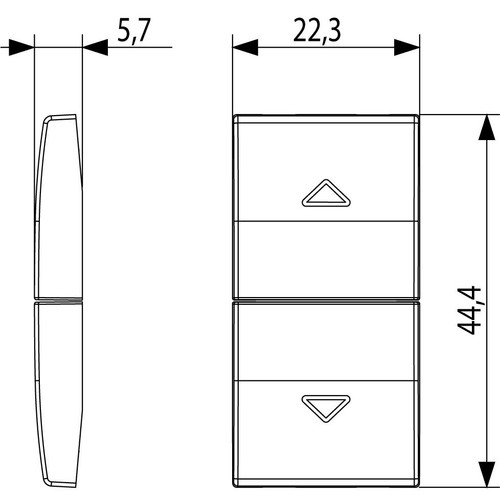

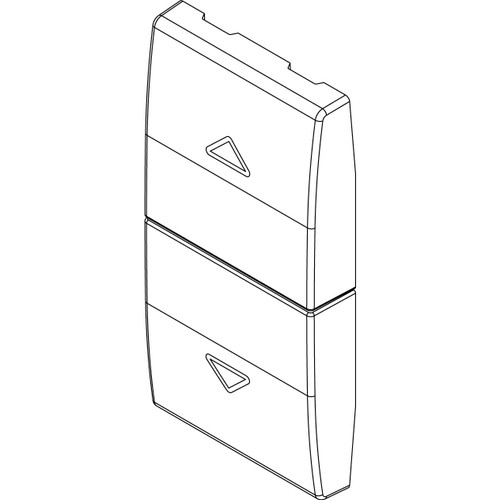

The Vimar Eikon 20751.2 is a 1-module set of two interchangeable half-buttons with directional arrow symbols for compatible bus-system controls in the Eikon range. It is the visible operating piece for a split rocker interface, with an overall front size of about 22.3 x 44.4 mm and a profile depth of about 5.7 mm.

This part is classified as a KNX touch rocker for bus systems and is used where the control point needs clear up and down or open and close button marking. On board, it makes sense in interior switch panels where you are replacing a worn button face or matching an existing Eikon installation during a refit.

Key features

• Two interchangeable half-buttons with directional arrow symbols in a 1-module format
• Classified as a KNX touch rocker for bus system applications
• Thermoplastic construction with a matt surface finish
• Front dimensions of about 22.3 x 44.4 mm with a depth of about 5.7 mm
• Available in grey, silver, and white to match different Eikon panel finishes

Variants

This product is offered in three colour configurations within the same Eikon 1-module arrow-symbol half-button format.

What changes between variants is the colour and surface treatment. The two-piece layout, directional arrow symbols, KNX touch-rocker classification, thermoplastic body, matt finish, and 1-module size stay the same across the range, while the silver version uses a lacquered surface and the grey and white versions are untreated.

• VM20751.2.B - Color White. Matt white finish in thermoplastic with a RAL-similar 9016 appearance, giving a light, clean look on matching Eikon control points.
• VM20751.2.N - Color Silver. Matt silver finish with lacquered surface protection and a RAL-similar 9022 appearance, giving a more metallic look alongside silver-toned trim.
• VM20751.2 - Color Grey. Matt grey finish in thermoplastic with a RAL-similar 7024 appearance, keeping the control face understated on darker panels.

Compatibility and fit

Check that the existing control point uses the Vimar Eikon 1-module format and the split half-button layout. This item is the arrow-marked front operating piece, so fit depends on the compatible underlying bus-system control already installed in the panel.

The arrow symbols make it suitable for functions that rely on directional input, where the user benefits from a clear visual cue at the switch face. It suits replacement work on yachts and other craft that already use Vimar Eikon interiors and want the finish and button style to stay consistent across the cabin or saloon.
