Overview

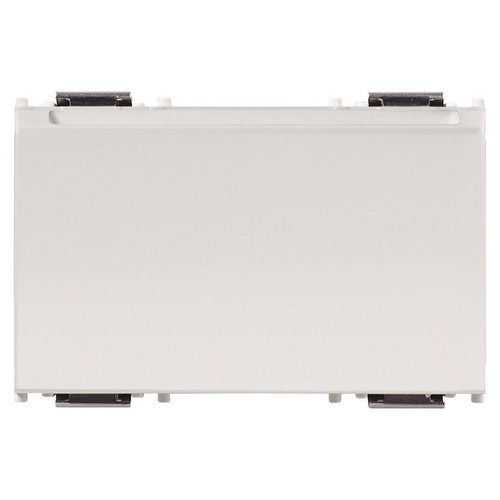

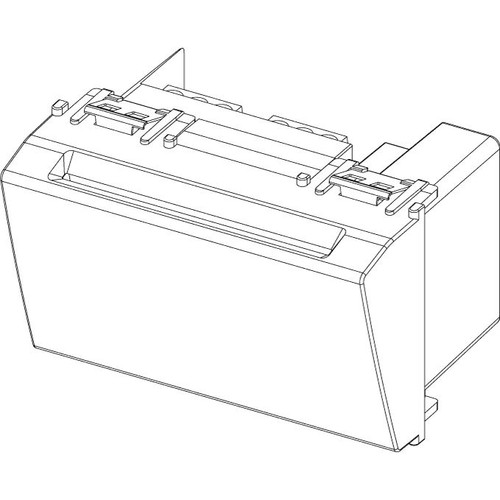

The Vimar Idea is a vertical badge switch for access-control points where a card is inserted to trigger a relay output. It uses a 16 A 250 V~ change-over relay output and can be supplied by 230 V~ 50-60 Hz, 24 V~ 50-60 Hz, or 24 V d.c. (SELV). The unit occupies 3 modules and fits a flush-mounted installation.

This is a standalone component with no network connection, no PC binding, and no built-in signalling. Its plastic housing is rated IP20 and measures 74.8 x 50.1 x 49.2 mm, which makes it better suited to protected interior spaces on board than exposed deck or washdown areas. The badge is not included.

Key features

• Electronic badge switch with a vertical pocket and data-medium reading
• 16 A 250 V~ change-over relay output for switching a controlled circuit
• Supply options include 230 V~ 50-60 Hz, 24 V~ 50-60 Hz, and 24 V d.c. (SELV)
• 3-module format for Vimar Idea installations

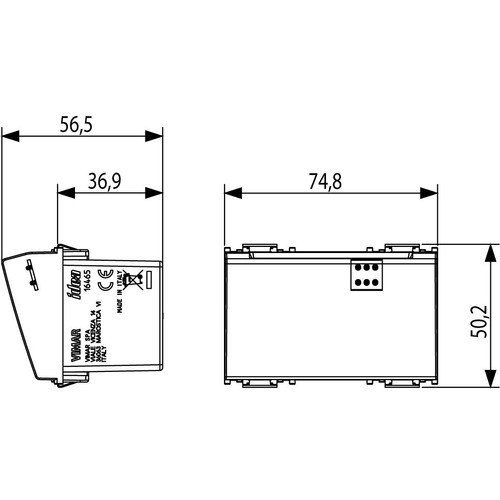

• Flush-mounted body with dimensions of 74.8 x 50.1 x 49.2 mm
• Standalone operation with no network link and no PC binding
• IP20 plastic housing for protected interior locations
• Provided without the ISO card badge

Variants

This product is offered in two color configurations within the same badge-switch format.

The variation between the listed options is color. The 3-module footprint, vertical badge pocket, 16 A 250 V~ change-over relay output, supply options, flush-mount installation, and IP20 protection remain the same across both variants.

• VM16465, Color: Gray. This finish suits panels and cabin switch positions that already use gray Idea devices and trim.
• VM16465.B, Color: Ivory. This finish works where the surrounding switchgear or interior trim uses a lighter tone.

Installation and fit

This switch uses a flush-mounted format and takes up 3 modules, so it needs to be matched with the correct Idea support hardware and front plate arrangement already used at the installation point. With a body depth of 49.2 mm, it is worth checking clearance behind the panel or bulkhead before final fit-out.

Electrical and system integration

The relay output and multiple supply options make this unit easier to integrate into interior control points on vessels that use either 230 V AC or 24 V systems. Because it works as a standalone component and has no interface, it suits installations where a simple badge-triggered switching function is preferred over a networked access-control setup.

Use on board

This badge switch is a good match for cabins, crew areas, passageways, and service spaces where the installation is inside the boat and protected from spray. The IP20 rating and 5 to 45 C operating range point to interior use, not open cockpit, deck, or other wet locations.
