Overview

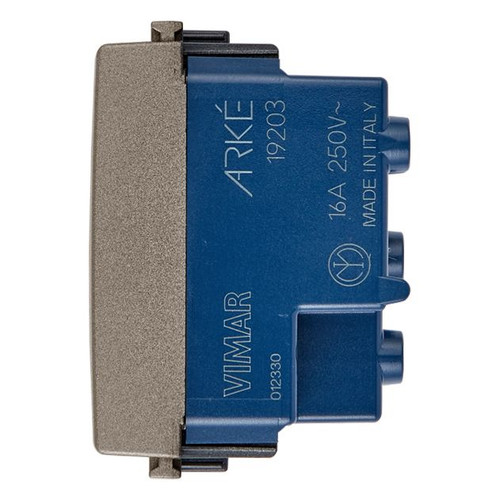

The Vimar Arké 19203 is a 1-module flush-mounted 2P+E socket outlet for 250 V AC circuits, rated 16 A and built around the Italian P17/11 standard. It uses SICURY enhanced contact protection, screw terminals, and an IP20 housing, so it suits dry interior spaces where you need a standard mains outlet in the Arké format.

For marine refits and interior electrical work, this outlet makes sense in cabins, chart tables, protected helm panels, and other enclosed areas on boats that already use Italian-format AC hardware. The body is plastic with thermoplastic construction, it is halogen-free, and the device measures 22.3 x 49 x 34.5 mm.

Key features

• 2P+E socket outlet in Italian P17/11 format, rated 16 A at 250 V AC
• Works on 50 to 60 Hz AC systems and fits the Arké 1-module device format
• SICURY enhanced contact protection helps reduce accidental contact at the outlet
• Flush-mounted body with screw-terminal wiring for fixed installation
• IP20 construction for dry interior mounting locations
• Plastic thermoplastic housing that is halogen-free
• Label space on the device can help identify onboard circuits at the panel

Variants

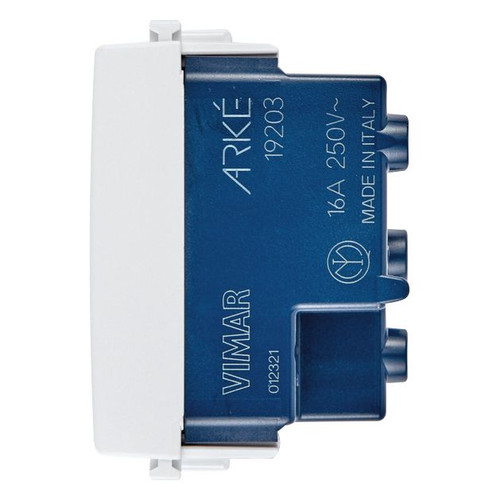

This product family is offered in gray, metal, red, and white finishes, with antibacterial versions available in gray and white. Across the range, the core outlet format stays the same: 2P+E, 16 A, 250 V, Italian P17/11, with SICURY contact protection.

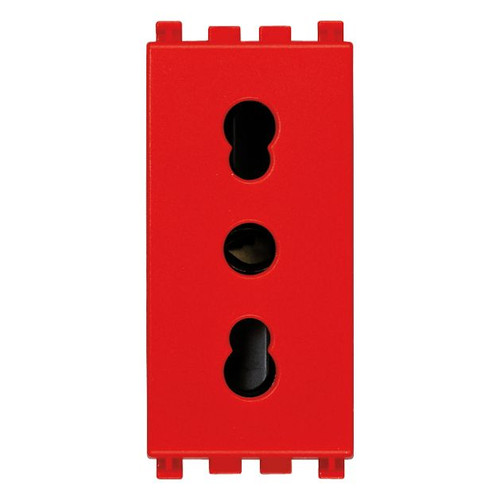

The red version is marked for dedicated supply lines. The other variants change the finish, and in the antibacterial options, the material treatment, while keeping the same basic outlet function and module size.

Installation and fit

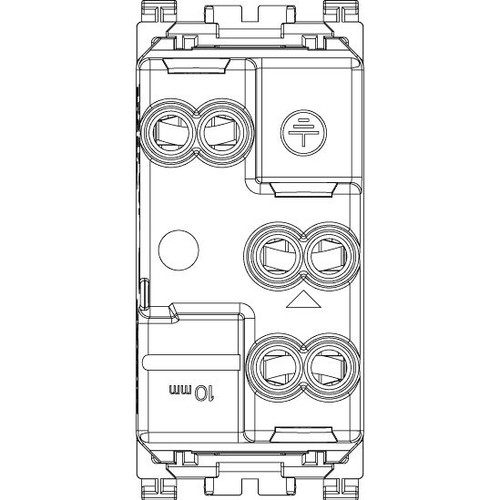

This is a flush-mounted Arké device with screw-terminal connections, so it is best matched to installations already built around the Arké modular system. Before ordering for a boat or yacht refit, check that the panel, support, and trim arrangement use the same series and that the onboard AC circuit is set up for an Italian Bipasso style outlet.

Because the rating is IP20, it belongs in areas that stay dry and protected. It is not the right choice for exposed deck locations, open cockpits, or washdown zones where spray and heavy moisture are part of normal use.

Electrical and system integration

This outlet is for 250 V AC distribution, not for 12 V or 24 V DC accessory wiring. It should be installed on the vessel's AC side with the correct protection and wiring practice for the onboard mains system.

Use on board

This range suits boats and yachts that already use Italian-format AC fittings and need a matching interior outlet for cabin appliances, chargers, or general utility power from the vessel's AC distribution. The antibacterial versions are a sensible match for high-touch interior areas such as galleys, heads, and crew spaces.
