Overview

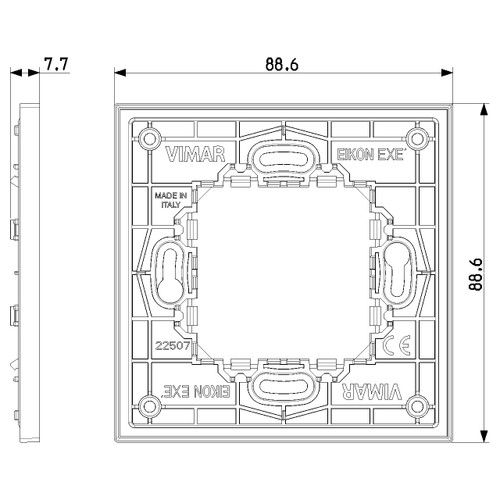

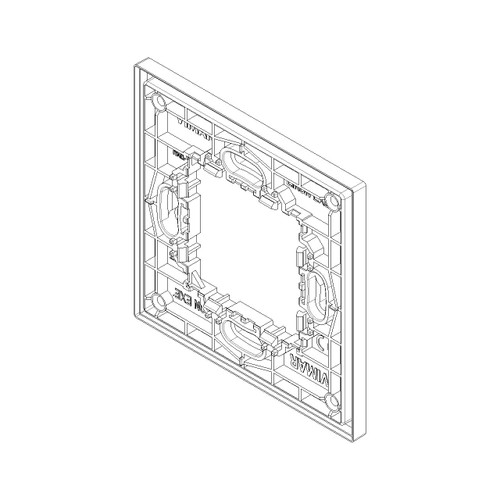

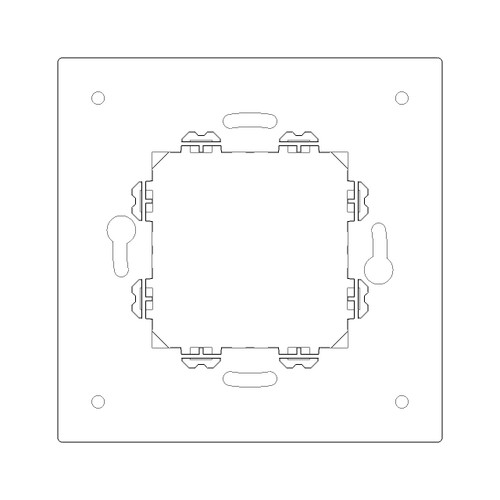

The Vimar Eikon EXÉ 22507 is a mounting frame for surface mounting of Ocean, Bluetooth, and ZigBee radio controls, finished to match Eikon Exé 2-module cover plates. It is a 2-module frame in horizontal orientation and a 1-module frame in vertical orientation, with front-side insertion for the module inserts.

For boat interiors, this frame makes sense where a wireless control point needs a finished mount on a cabin wall, furniture panel, or other protected onboard surface. The body is thermoplastic, it can be mounted in a round 60 mm junction box, and it does not include a built-in installation box or mounting screws.

Key features

• Surface-mount frame for Vimar Ocean, Bluetooth, and ZigBee radio controls
• Pairs with Eikon Exé 2-module cover plates
• Accepts 2 modules horizontally or 1 module vertically
• Front-side insertion for the module inserts
• Thermoplastic construction with untreated surface finish
• Suitable for mounting in a round 60 mm junction box
• Not supplied with a built-in installation box or screws
• Not intended for subfloor duct boxes, wall ducts, or 35 mm DIN-rail mounting

Variants

This product is offered in two finish options.

The difference between the variants is color. The mounting format, module capacity, and RF control compatibility remain the same across both versions.

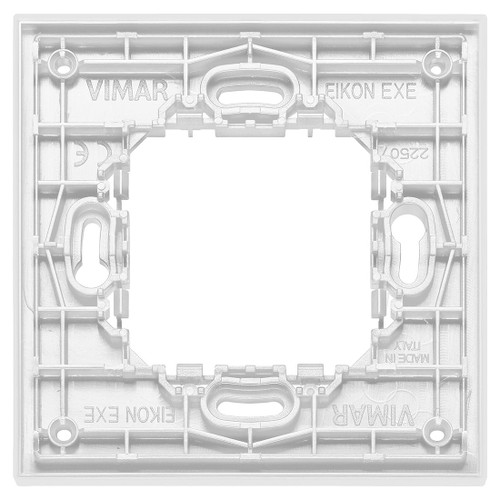

• VM22507.B: White. This version keeps the same mounting format and is the lighter finish option for interiors where the frame needs to blend with white trim or switch surrounds.

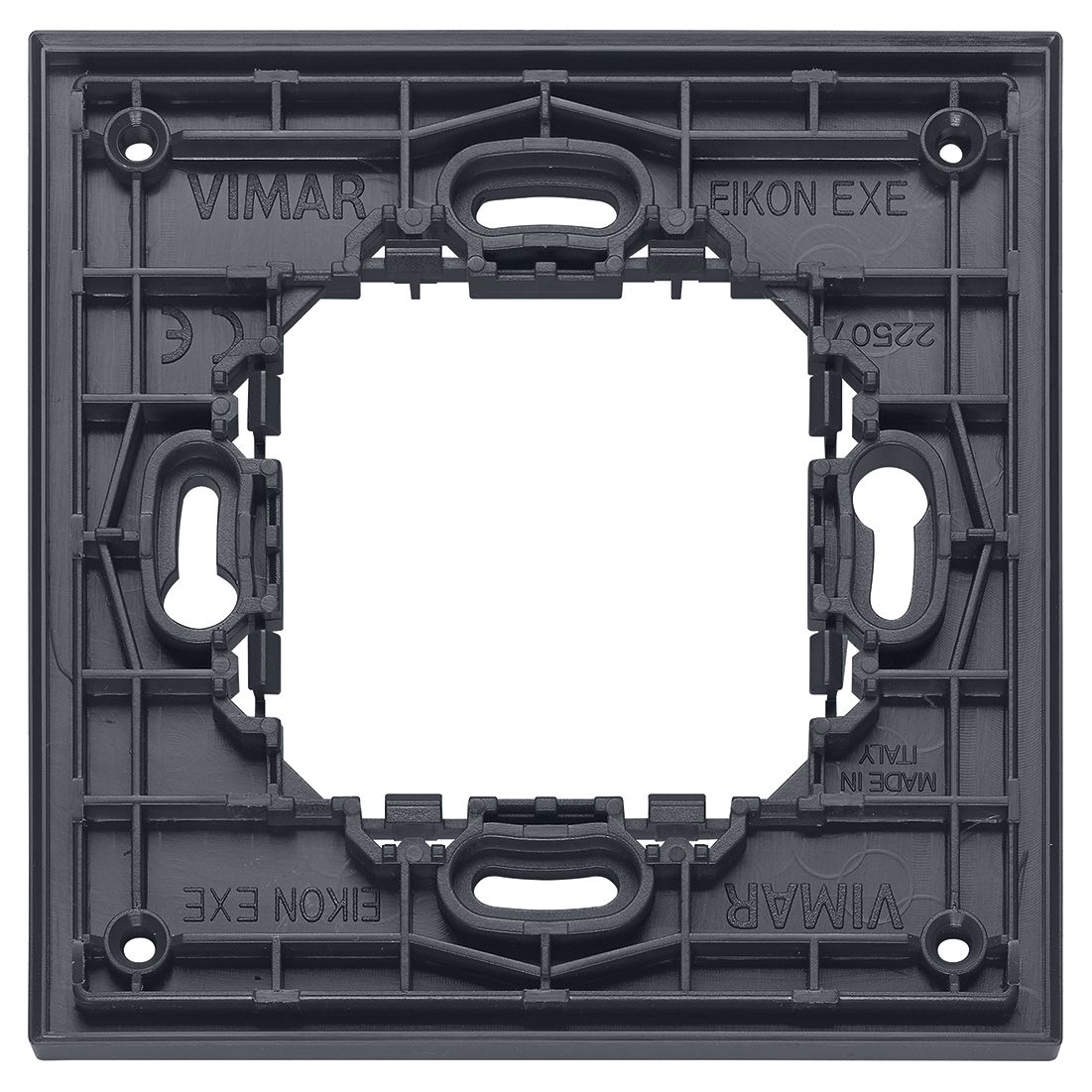

• VM22507: Grey. This version keeps the same mounting format and gives a darker finish that suits interiors using grey controls, trim details, or cover plates.

Compatibility and fit

This frame is meant for Vimar Ocean, Bluetooth, and ZigBee radio controls and is completed with an Eikon Exé 2-module cover plate. That matters when matching the visible trim and making sure the finished installation stays consistent with the rest of the switching range on board.

It suits installers and refit owners who are already using Vimar wireless controls in cabins, saloons, or other protected interior spaces. Where a round 60 mm junction box is already present, fitment is straightforward and the front-side module insertion keeps access simple during assembly.

Installation and use on board

The frame can be mounted horizontally or vertically depending on the control layout and available panel space. On a boat, that gives a little more freedom when placing a wireless lighting, blinds, or scene-control point near companionways, berth areas, or navigation seating.

Because no weather rating is stated for this frame, it is better suited to protected interior locations rather than exposed deck positions. For the cleanest result, match the frame finish with the selected Eikon Exé cover plate and keep the installation within the intended RF control system.
