Overview

The Vimar Arké 19506 is an interchangeable button range for compatible EnOcean, Bluetooth, and ZigBee radiofrequency devices. It covers both 1-module and 2-module layouts in Grey, Metal, and White finishes, so the visible control point can be matched to the rest of an Arké interior installation without changing the underlying RF system.

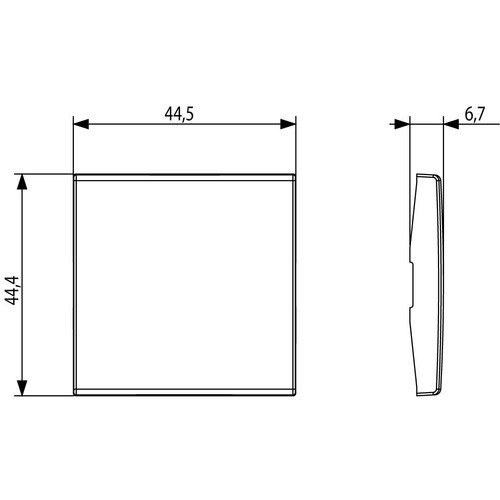

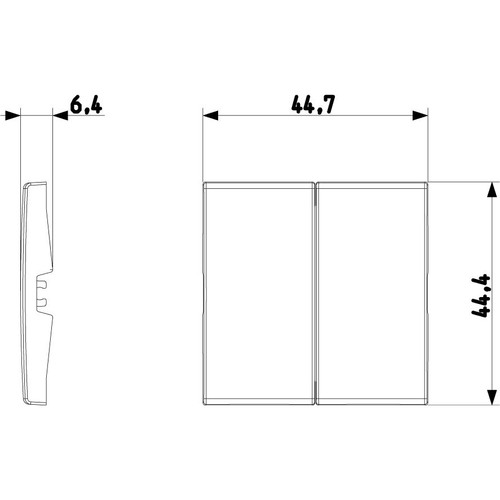

This is the visible button and cover element, not the electronic radio device itself. The listed 1-module versions measure 44.7 x 44.4 x 6.4 mm, while the listed 2-module versions measure 44.5 x 44.4 x 6.7 mm. On a boat, that makes this range more relevant for compact interior switch positions where finish, layout, and compatibility with the existing Arké RF setup matter as much as the control function.

Key features

• Interchangeable front button range for compatible Arké EnOcean, Bluetooth, and ZigBee RF control devices
• Available in 1-module and 2-module formats to match the underlying control layout
• Finish options across the range include Grey, Metal, and White

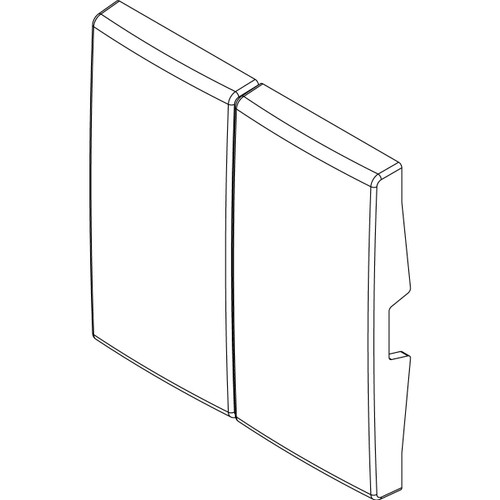

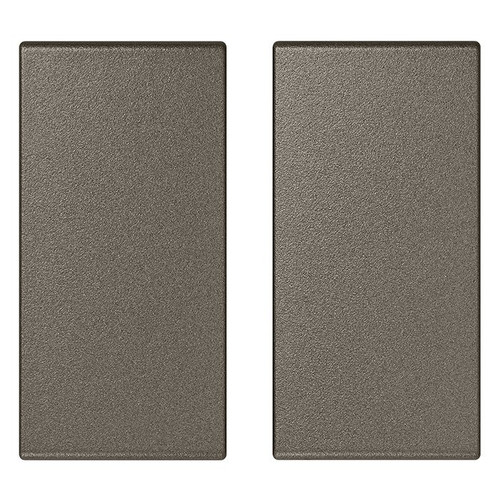

• 1-module versions are supplied as 2-piece button sets, while 2-module versions use the wider 2-module format
• Grey and white variants use thermoplastic construction with a matt finish and are halogen-free
• Metal variants use lacquered thermoplastic with a matt aluminium-colour finish

Variants

The range changes by two main attributes: finish and module width. Finish options are Grey, Metal, and White, and each finish is available in either a 1-module or 2-module version.

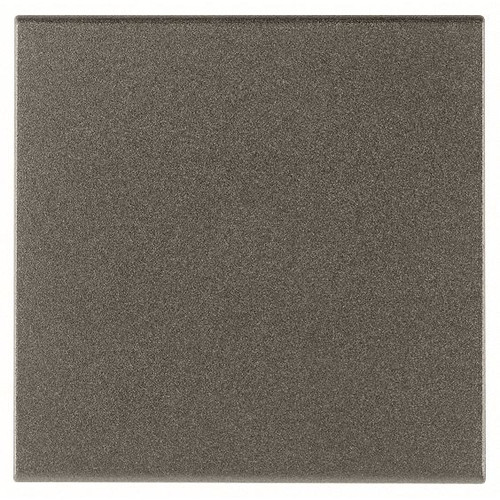

The 1-module versions use the narrower format and are supplied as 2-piece button sets. The 2-module versions use the wider button format for matching 2-module RF control points. Across the range, the intended use stays centered on Arké radiofrequency controls for EnOcean, Bluetooth, and ZigBee devices, while the visible difference is mainly the width and finish.

Compatibility and fit

This range is the front button piece for the Arké RF device family. It does not replace the electronic insert behind the button, and it is not the surrounding frame. That matters on refits and repairs where the boat already has Arké hardware in place and only the visible button needs to be replaced or updated.

Check the existing module width before ordering. A 1-module position and a 2-module position are different physical formats, and the finish change is cosmetic rather than a change to the radio standard or operating logic.

Use on board

For marine installations, this range makes the most sense in protected interior spaces such as cabins, saloons, enclosed helm consoles, and service panels where RF switching is already part of the fit-out. The grey and white variants are rated IP40, which points them to dry locations rather than open cockpits, exterior bulkheads, or any area that sees regular spray or washdowns.

It is a sensible match for boats that already use Vimar Arké controls and need a replacement button face, a different finish, or a consistent look across several interior control points. The Metal option gives an aluminium-colour appearance, while Grey and White keep a more standard Arké finish.
