Overview

The Vimar Eikon signalling unit indicator is a 1-module flush-mounted indicator unit with a white diffuser, IP40 protection, and a 250 V nominal rating. It uses snap-in fastening, is made from thermoplastic plastic, and is configured for an exchangeable LED light source, with the lamp not supplied.

On board, this type of device is used where a switch panel needs a clear visual indication without changing the look of the surrounding controls. It suits protected interior panels that already use the Vimar Eikon range, such as cabin lighting stations, galley switch banks, interior helm consoles, and utility control points.

The range is offered in three finish colors while keeping the same white diffuser and the same modular Eikon format. That makes it useful when the panel layout is already fixed and the only change needed is the visible finish on the front.

Key features

• 1-module Vimar Eikon indicator unit for flush-mounted modular installations
• White diffuser with white illumination when paired with the correct exchangeable LED light source
• Snap-in fastening for panel assembly and later replacement work
• Thermoplastic body with halogen-free construction
• IP40 rating and 250 V nominal rating for protected interior electrical panels
• Available in silver, white, and grey finishes across the range

Variants

This product family is offered in three finish options, each using the same white diffuser indicator format.

Across the listed variants, the shared points are the 1-module layout, flush-mounted snap-in installation, thermoplastic construction, white diffuser, IP40 protection, and 250 V nominal rating. The main change between variants is the visible front finish.

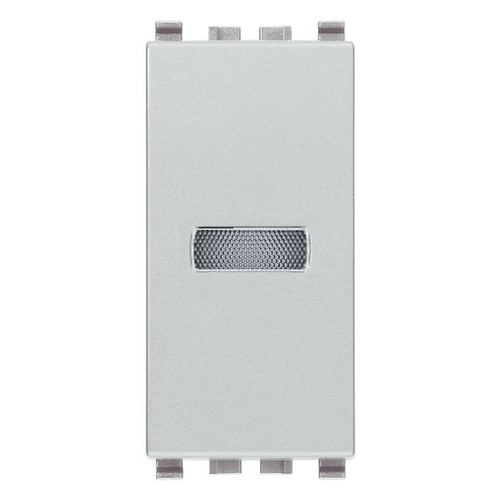

• VM20386.B.N, Color Silver. This version matches the silver Eikon look and works where the switch panel uses that finish across the surrounding controls and trim.
• VM20386.B.B, Color White. This version keeps the front appearance aligned with white Eikon devices in lighter interior panels.

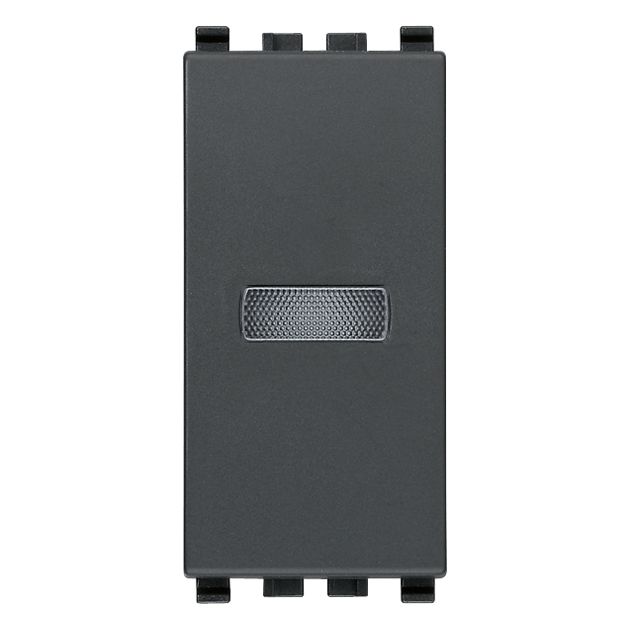

• VM20386.B, Color Grey. This version matches the grey Eikon finish for panels built around the darker color scheme.

Compatibility and fit

Fit starts with the switch platform. This is an Eikon modular device, so it belongs in a flush-mounted Eikon assembly rather than a mixed-brand switch layout.

Because it is a 1-module indicator unit supplied without the lamp, it is worth confirming the matching signalling component and the rest of the Eikon support and cover hardware already installed on the boat before ordering.

Installation and use on board

The snap-in format helps during refits and service work because the indicator can be changed without rebuilding the whole switch bank. Its IP40 construction points it toward protected interior spaces rather than exposed weather areas.

It is a practical match for boats that use Vimar Eikon devices in cabins, galleys, interior helm stations, or other enclosed control points where a visual status light is needed and the finish of the panel matters as much as the function.
