Overview

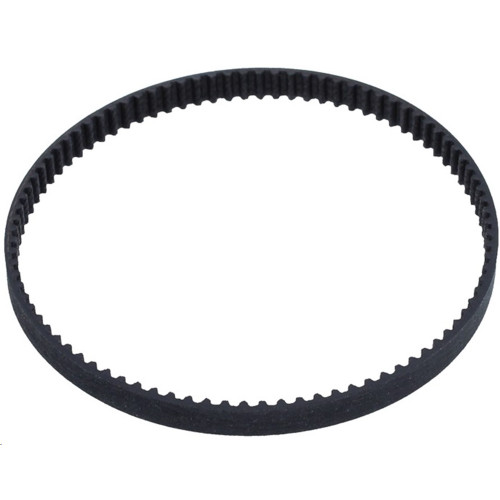

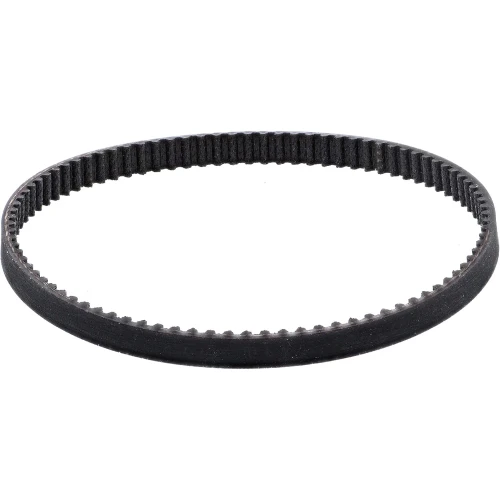

The Jabsco 58542-1000 is a replacement belt kit for Lite Flush electric marine toilets in the 58500 series. It uses a 9 mm drive belt and is a service part for the toilet drive system, so it needs to match the Lite Flush assembly rather than a general-purpose belt size.

For boats already fitted with a Jabsco Lite Flush head, this part is used when the existing belt is worn, damaged, or being replaced during routine service. It suits the 58500 series platform and helps keep the toilet operating as intended without guessing at fit inside a compact onboard sanitation system.

Key features

• 9 mm drive belt specification
• Fits Jabsco Lite Flush toilets in the 58500 series
• Used for service work on the Lite Flush electric toilet drive system
• Approximate packaged dimensions of 5 x 5 x 5 cm
• Actual weight is about 0.10 kg

Compatibility and fit

This belt kit fits Jabsco Lite Flush 58500 series toilets, including models 58500-0012, 58500-0024, 58500-1012, and 58500-1024. It is a practical match for boats that already have one of these toilet assemblies installed and need the correct replacement part for the existing unit.

Installation and setup

Belt replacement on the Lite Flush platform is a service job inside the toilet assembly, not an external belt swap. Before maintenance, isolate power to the toilet system and close the inlet and outlet seacocks. When fitting the new belt, the replacement procedure does not call for tools on the belt itself.
