Overview

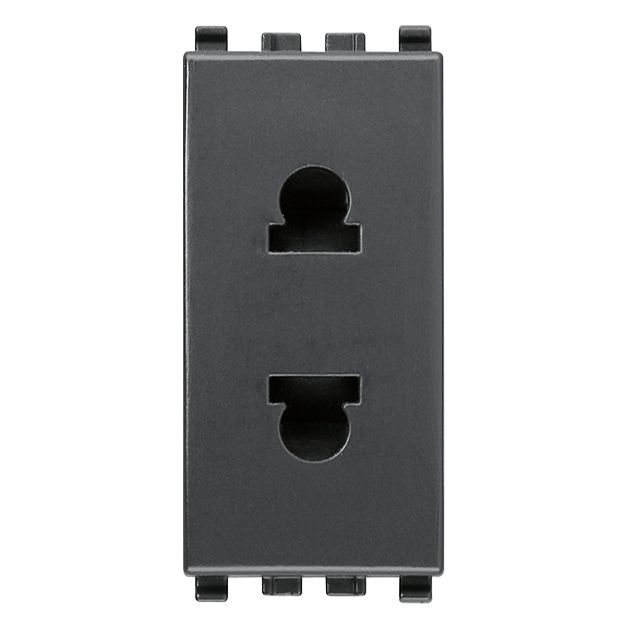

The Vimar Eikon 20234 is a 2P 16 A 250 V SICURY socket outlet for Euro-American standard plugs with parallel flat pins and 4.8 mm round pins. It fits one module in the Eikon system, uses screw terminals, and mounts flush with a body size of 22.3 x 49 x 38 mm.

This outlet works well in protected interior spaces on board where you want a clean built-in finish and one receptacle format that covers common US and European plug styles. The body is halogen-free thermoplastic with a matt surface, and the IP20 rating makes it a better match for dry cabin, saloon, galley, or helm locations rather than exposed weather areas.

Key features

• 2P 16 A 250 V outlet format for Euro-American standard plugs with parallel flat pins and 4.8 mm round pins
• SICURY outlet with enhanced contact protection at the receptacle
• Screw terminal connection for fixed wiring
• One-module Eikon device for flush-mounted installation
• Halogen-free thermoplastic body with matt finish
• IP20 protection for protected interior mounting points
• Label space on the device for circuit or outlet identification

Variants

This outlet is offered in three color versions within the same Eikon format.

Across the range, the socket layout, 16 A 250 V rating, screw-terminal connection, one-module format, flush mounting, IP20 protection, and overall size stay the same. The visible differences are the color and surface treatment.

• VM20234.B: white. This version has a matt white finish that blends easily with light interior panels and white trim.
• VM20234.N: silver. This is the Next silver version with a matt lacquered surface and a more metallic look at the switch panel.
• VM20234: grey. This version has a matt grey finish that sits well with darker panels and technical interior spaces.

Compatibility and fit

The outlet accepts Euro-American standard plugs with parallel flat pins and 4.8 mm round pins. Because it uses the one-module Eikon format, it is a practical match for installations built around Vimar modular devices or refit work where the same layout is already in place.

Installation and use

This is a fixed-wiring outlet, not a loose adapter, so it belongs in a properly mounted panel or bulkhead position. The compact depth helps where rear clearance is limited, and the IP20 construction points to use in protected spaces that stay dry. On boats, that usually means interior accommodation areas, enclosed helm stations, or other sheltered points where shore power or inverter-fed outlets are part of the electrical plan.
