Overview

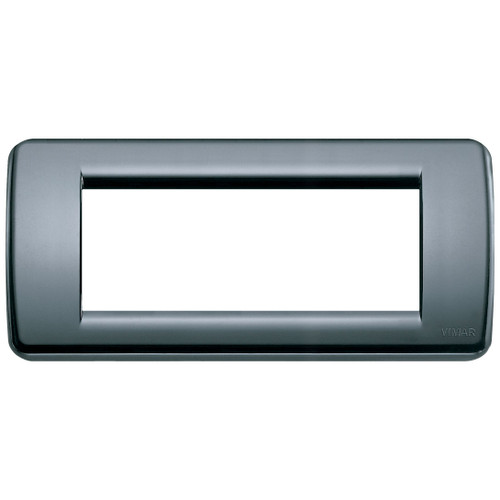

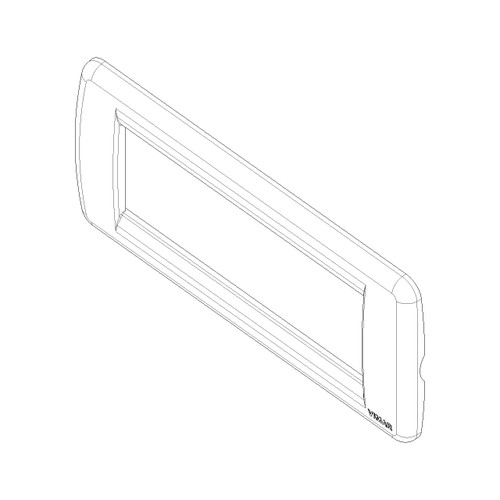

The Vimar Idea 16765 Rondò is a 5-module cover plate for switch and control points, with clamp mounting, horizontal or vertical orientation, and an overall size of 173 x 82 x 9 mm.

On a boat, this is the visible finishing plate that tidies up a protected interior switch panel and keeps a multi-gang installation looking uniform. It is suitable for built-in installation, wall ducts, and subfloor duct boxes, and it includes a label space so circuits or controls can be identified without making the panel look busy.

The body is made from halogen-free thermoplastic. The plate itself is rated IP00, so it belongs in dry, protected locations such as interior helm panels, cabins, or utility spaces rather than open deck areas exposed to spray.

Key features

• 5-module plate format for Vimar IDEA installations
• Clamp-mount design with horizontal or vertical mounting
• 173 x 82 x 9 mm outer size for panel planning and trim clearance
• Suitable for built-in installation, wall ducts, and subfloor duct boxes
• Label space and information surface for switch or circuit identification
• Halogen-free thermoplastic construction
• IP00 plate for protected interior mounting locations

Variants

This range changes in color and surface style rather than in size or mounting format. Technopolymer versions are offered in Graphite Gray, Idea White, Bright White, and Black. Silk-finish versions are offered in Graphite Gray and Black.

Across the 16765 range, the 5-module layout, clamp mounting, horizontal or vertical installation, label space, and overall dimensions stay the same.

Compatibility and fit

This plate is intended for a 5-module IDEA switch layout. For marine refits, check the existing module count, panel opening, and finish you want across the rest of the console or cabin panel before ordering, especially when matching older Vimar installations.

Because this is a trim component rather than a power device, voltage, circuit load, and network compatibility come from the switches or inserts behind it, not from the plate itself. That makes the main buying decision here the layout, mounting style, and finish that best matches the rest of the interior.
