Overview

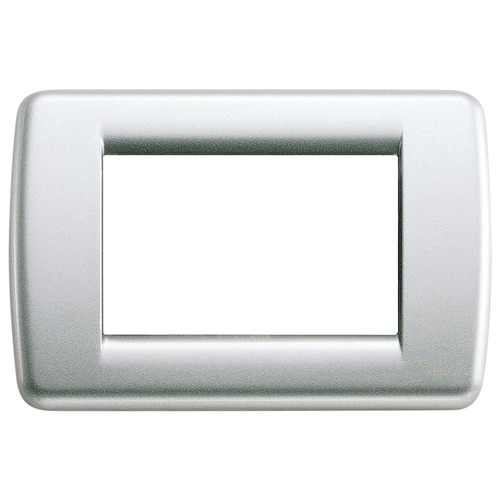

The Vimar Idea 16753 Rondò cover plate is a 3-module cover plate for Vimar Idea wiring devices, with a 123 x 82 x 9 mm face, clamp mounting, and support for both horizontal and vertical orientation.

Across the validated range, it is suitable for built-in installation, wall duct applications, and subfloor installation duct boxes. This is a trim and finishing part rather than a sealed enclosure, so it suits protected interior switch locations on board where the finish is visible and handled often.

The rounded Rondò profile gives the switch area a softer look than a square-edged plate, which works well in cabins, saloons, passageways, and other interior spaces where the electrical hardware is part of the visible joinery.

Key features

• 3-module Vimar Idea cover plate format, with support for three horizontal modules or one vertical module
• 123 x 82 x 9 mm overall size for checking recess clearance and alignment with existing trim
• Clamp mounting, with suitability for built-in installations, wall ducts, and subfloor installation duct boxes
• With mounting grid and label space or information surface for identifying grouped circuits or switch functions
• Most finishes use die-cast metal with a lacquered surface, while Cherrywood and Walnut versions use solid wood
• IP00 rating, which makes it a better match for dry, protected interior locations rather than exposed washdown areas
• Halogen-free construction across the validated versions

Variants

This range is offered in multiple finish options so the visible plate can be matched to nearby switches, sockets, and interior trim without changing the 3-module format.

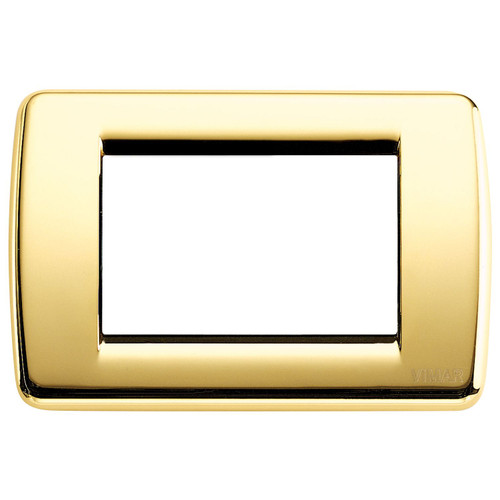

Across the validated variants, the shared points are the 3-module layout, 123 x 82 x 9 mm size, clamp mounting, and horizontal or vertical orientation. Finish is the main change through White, Ivory, Black Chrome, Matt Gold, Antique Brass, Metallized Silver, Slate Gray, Black, Brushed Nickel, Polished Gold, and Polished Chrome in die-cast metal. Cherrywood and Walnut change the visible material to solid wood, which gives the plate a warmer look in timber-heavy interiors.

Compatibility and fit

This cover plate is for the front trim of a Vimar Idea installation. On a boat, that makes it a practical match for cabins, helm areas under cover, companionway interiors, and other protected switch points where you want a finished appearance but do not need weather sealing at the plate itself.

Before ordering, check that your installation uses the Vimar Idea 3-module layout and that the support arrangement matches this plate size and mounting style. It is also worth confirming whether your panel is set up as three horizontal modules or one vertical module when matching an existing layout.

Installation and use

The plate uses clamp mounting and includes space for labeling, which is useful when one switch group controls lighting, pumps, fans, or other onboard services. In refit work, this helps keep the panel readable without changing the look of the surrounding trim.

This range is a good match for boat owners, yards, and installers who already use the Vimar Idea system and want the visible finish to suit the interior. It makes the most sense in dry accommodation spaces and other interior areas where appearance, touch, and layout consistency matter day to day.
