Overview

The Vimar Plana RJ11 phone jack 6/4 is a flush-mounted communication insert for telephone or low-voltage voice lines that use an RJ11 6-position, 4-conductor connection. It fits the Plana modular system, uses screw terminals at the rear, and measures 22.30 mm wide, 49.00 mm high, and 43.10 mm deep.

This is an indoor IP20 device with a glossy thermoplastic body that is halogen-free. On board, that makes it a sensible choice for protected interior locations such as accommodation spaces, nav stations, crew areas, or service panels where you want a clean flush finish and a hard-wired phone or intercom point.

Key features

• RJ11 6-position, 4-conductor insert for telephone and communication line terminations
• Screw terminals at the rear for direct conductor termination during panel wiring
• Flush-mounted 1-module format for Vimar Plana support frames and cover plates
• IP20 construction for protected interior spaces rather than exposed wet areas
• Thermoplastic body with halogen-free construction and glossy surface finish

Variants

This product is offered in multiple finish configurations within the same Plana RJ11 6/4 format.

Across the listed versions, the connection type, screw-terminal layout, flush-mounted body, and 1-module footprint stay the same. What changes is the visible finish and, in one version, the addition of antibacterial treatment.

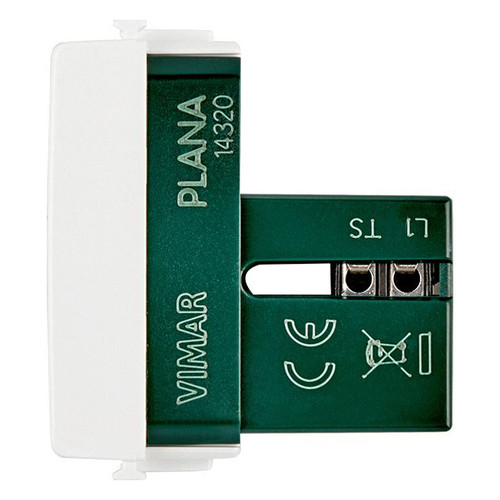

• VM14320: White finish. This version keeps a plain light-colored appearance that blends easily with standard white interior switch layouts.

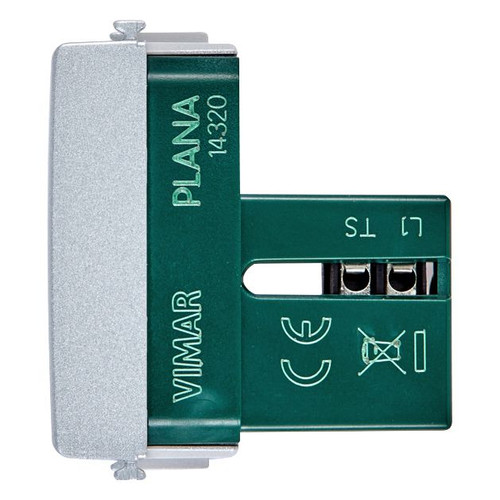

• VM14320.SL: Silver finish. The visible face changes to a silver lacquered finish while the insert format and connection style remain the same.
• VM14320.AB: White antibacterial finish. This version keeps the same basic RJ11 function and adds an antibacterial surface treatment for higher-contact interior points.

Installation and setup

This insert is made for flush mounting and clamp mounting within a compatible Plana installation. Rear screw terminals keep the wiring straightforward, but panel depth and cable bend radius should still be checked before the plate is closed up, especially in tighter console or bulkhead spaces.

Because it is an IP20 device, it belongs in a dry interior location. It is not the right fit for open cockpits, exposed helm positions, or any mounting point that sees spray, washdowns, or heavy condensation.

Compatibility and fit

Check that the onboard communication line uses an RJ11 6P4C connection and that the surrounding support frame and cover plate are from the Vimar Plana range. This insert suits refit or new-build work where the goal is to integrate a phone or intercom connection into the same modular wall or panel system used for the rest of the interior devices.
