Overview

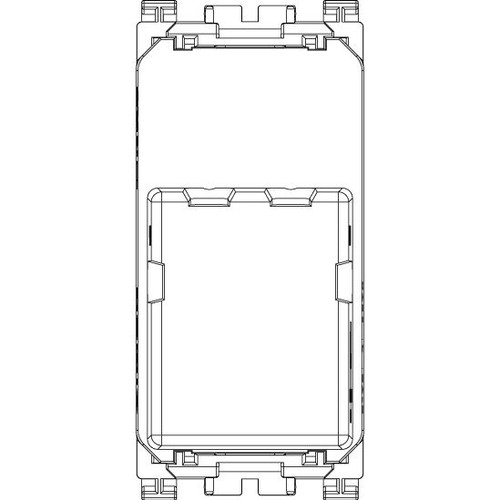

The Vimar Arké 19320 RJ11 phone jack is a flush-mounted one-module insert for telephone connections that use a 6-position 4-conductor RJ11 plug and screw-terminal wiring. It is part of the Arké modular range and has an IP20 rating, a thermoplastic body, and a compact 22.2 x 49 x 43.3 mm format.

On board, this type of outlet makes the most sense in protected interior spaces such as cabins, saloons, or enclosed helm areas where a fixed telephone point is needed and the fitting stays away from spray and washdown. The screw terminals are useful when you are terminating fixed conductors behind the panel rather than working with a pre-fitted lead, and the flush-mounted format keeps the face neat once installed.

Key features

• RJ11 telephone jack with 6-position 4-conductor 6/4 format
• Screw terminals for direct termination of fixed wiring behind the panel
• Flush-mounted one-module insert within the Arké modular device range
• IP20 rating for protected interior locations
• Plastic thermoplastic construction with halogen-free material
• Available in grey, white, metal-look, and antibacterial finish options

Variants

This product is offered in several configurations, with the same RJ11 6/4 phone-jack format across the range.

The points that change between variants are the visible colour or finish and whether the face material is antibacterial. The connection format and screw-terminal layout remain the same across these versions.

• VM19320: Grey finish, non-antibacterial. This keeps a darker neutral look that blends into grey Arké plates and control panels.
• VM19320.M: Metal finish, non-antibacterial. This changes the visible appearance to a metal look that suits interiors with metallic trim and fittings.
• VM19320.B: White finish, non-antibacterial. This keeps the outlet visually lighter on white bulkheads, liners, or cabin trim.
• VM19320.AB: Grey finish with antibacterial material. This keeps the grey appearance while adding an antibacterial surface for shared interior touch points.
• VM19320.AB.B: White finish with antibacterial material. This pairs the white finish with an antibacterial surface for accommodation spaces where several people may use the same outlet.

Compatibility and fit

This is an RJ11 telephone outlet, so it should be matched to the plug type and conductor layout already used on the vessel. It is not a data outlet for RJ45 Ethernet plugs and it is not part of marine network cabling such as NMEA 2000.

Before ordering, check that your switch plate and mounting arrangement match the Arké modular format and that the wall or panel cavity has enough room for the 43.3 mm device depth. Because the unit is IP20, it is better suited to dry interior joinery than to open cockpits, exposed consoles, or any area cleaned with direct water spray.

Use on board

This outlet is a practical match for boats that need a fixed telephone connection inside the accommodation area or at a protected navigation station. The antibacterial versions make more sense in shared-use interior spaces, while the standard versions are mainly a finish and colour choice.
