Overview

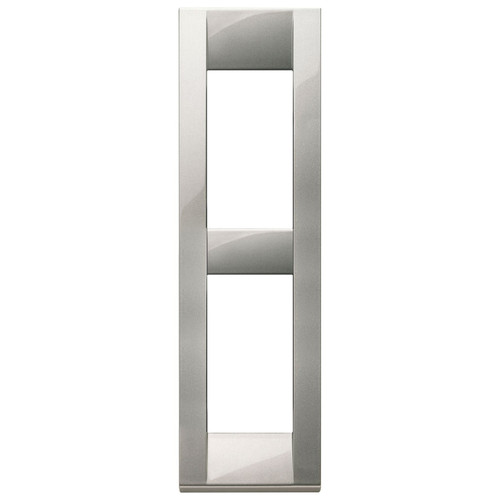

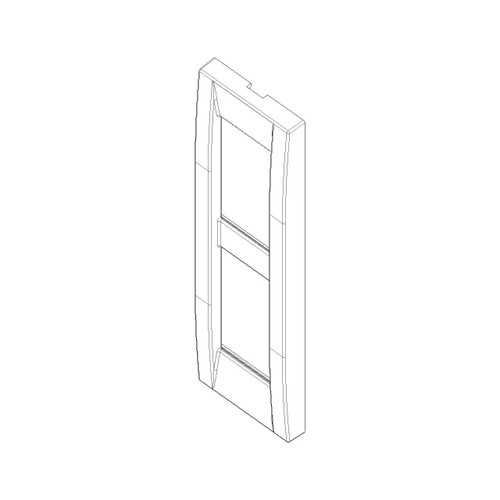

The Vimar Idea 16782 Classica cover plate is a 2-module die-cast metal plate for panel mounting in the Idea range. It measures 40 x 137 x 8.9 mm, can be mounted horizontally or vertically, and has a lacquered glossy surface.

This is a finishing part for protected interior switch locations where a metal faceplate is preferred over a polymer trim. It is halogen-free, includes a label space, and carries an IP00 rating, so it belongs in enclosed or otherwise protected areas rather than exposed deck or washdown locations.

Key features

• 2-module Classica cover plate for panel-mounted Idea installations
• Can be mounted horizontally or vertically to match the panel layout
• Die-cast metal construction with a lacquered glossy finish
• Halogen-free body with label space or information surface
• Suitable for panel mounting, built-in installation, wall ducts, and subfloor installation duct boxes
• IP00 protection rating for interior use in dry, protected spaces

Variants

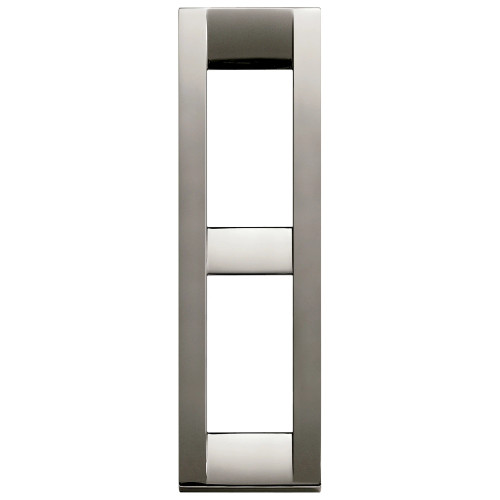

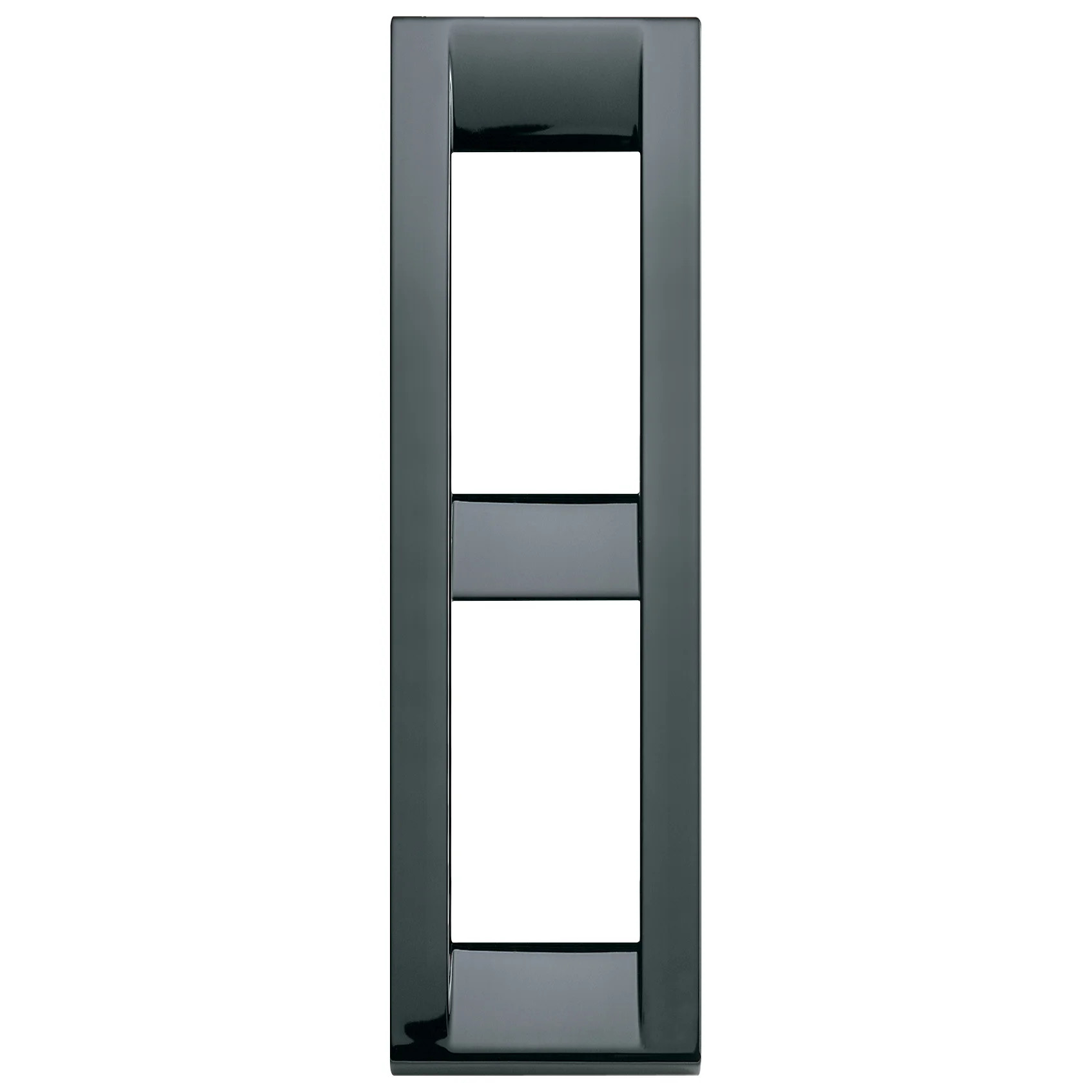

This range is offered in several metal finishes, including ivory, metallized silver, white, chrome, polished gold, brushed nickel, black, and black chrome. The finish is the main visual difference across the listed versions, so the plate can be matched more closely to switch trim, hardware, and the surrounding interior.

Across the range, the core format stays the same: 2 modules, die-cast metal construction, panel mounting, and the same overall dimensions. That makes the choice mostly about appearance and how the plate ties into the rest of the helm, cabin, or control panel.

Compatibility and fit

This plate fits the 2-module Idea format and is meant for panel-mounted switching assemblies. The narrow 40 mm width and 137 mm height suit slim switch runs and stacked layouts where panel space is limited but a finished front face still matters.

It also works in built-in installations, wall ducts, and subfloor duct boxes when that is how the switch assembly is being housed. For a refit, the main point to confirm is the underlying Idea 2-module arrangement rather than electrical load, since this part is a cover plate and not the switching device itself.

Installation and setup

Horizontal and vertical mounting support makes panel layout easier when you are working around gauges, chart areas, or furniture lines. Clamp mounting keeps the installation straightforward on a prepared panel cutout, and the glossy lacquered surface is easy to wipe down in enclosed onboard spaces.

Because the protection rating is IP00, this plate makes sense in cabins, enclosed helm stations, nav areas, and other interior control points where the face of the switch assembly is sheltered. It is not the right choice for open exterior positions that see spray, washdowns, or direct weather.

Use on board

This is a good match for boats already using the Vimar Idea system and needing a metal trim piece for a cleaner finished panel. It also suits projects where finish choice matters, such as cabin refits, interior helm updates, or matching switch plates to nearby metal hardware and trim.
