Vimar IDEA Rondò Cover Plate, 2-Module, Die-Cast Metal, Panel Mount
-
Perfect Fit, Guaranteed
Get the right part every time
-
Expert Support
Our in-house specialists know our products inside and out
-
Enhanced Value & Service
We go beyond the sale with professional and balanced services
-
Wordwide Delivery
Enjoy hassle-free worldwide delivery
Vimar IDEA Rondò Cover Plate, 2-Module, Die-Cast Metal, Panel Mount
Write a Review
Vimar
Vimar IDEA Rondò Cover Plate, 2-Module, Die-Cast Metal, Panel Mount
Overview

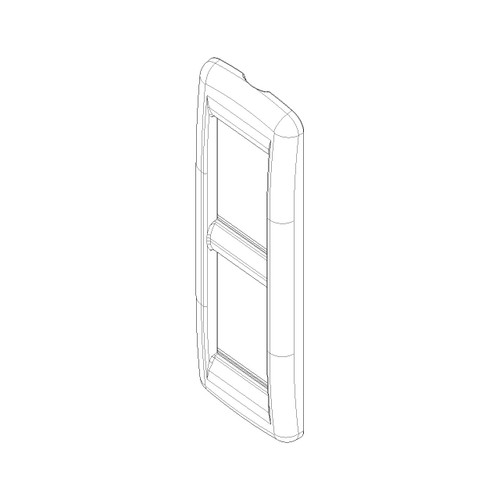

The Vimar Idea 16784 Rondò Cover Plate is a 2-module die-cast metal cover plate for panel mounting, with horizontal or vertical orientation and an overall size of 41 x 141 x 9 mm.
It is the trim piece that finishes a 2-module Idea switch position on a panel, wall duct, or built-in installation. The plate includes a mounting grid and label space, uses clamp mounting, and the cover plate itself is rated IP00, so it belongs in a protected installation where any splash protection comes from the surrounding panel or enclosure.
Key features
- 2-module Rondò cover plate for panel mounting
- Die-cast metal body with lacquered surface finish
- Mounts horizontally or vertically
- 41 x 141 x 9 mm overall size

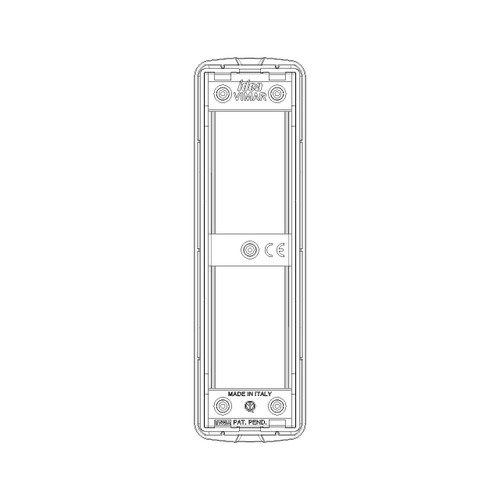

- Clamp mounting with mounting grid and label space
- Suitable for panel, wall duct, and built-in installations
- Halogen-free construction
- IP00 cover plate rating
Variants

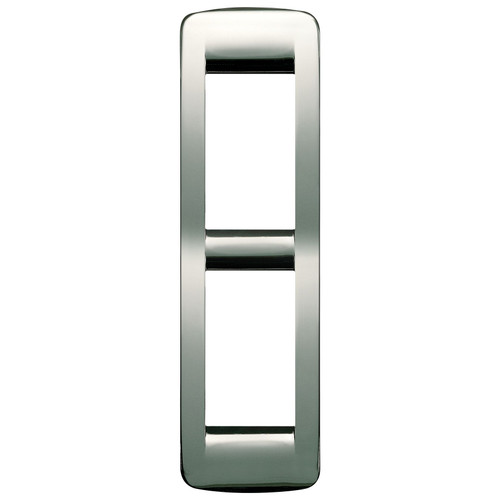

This range is offered in several finish options: Black, Polished Chrome, Brushed Nickel, Metallized Silver, White, Ivory, Polished Gold, and Matt Gold.
Across these variants, the format stays as the same 2-module Rondò cover plate for panel mounting. The main difference is the finish, which lets you match existing Vimar Idea hardware or the look of the surrounding console and cabin trim.
Compatibility and fit
This cover plate is part of the Idea panel-mount range and is for a 2-module position. It is a cover frame rather than a switch or socket insert, so the underlying module arrangement needs to match the plate before ordering. That matters most when replacing a plate on an existing helm, cabin, or service panel where the opening and orientation are already set.
Installation and setup

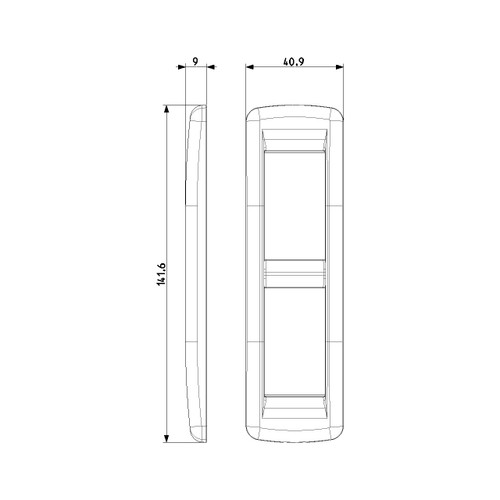

The plate can be mounted horizontally or vertically, which helps when matching an existing console layout or keeping switch legends readable. The built-in size matches the face size at 41 x 141 mm, with 9 mm depth, so it suits narrow mounting areas where a low-profile finish is preferred.
Use on board
It suits boats using Vimar Idea switching where the electrical panel is inside the cabin, at the helm behind a protected fascia, or in other enclosed service areas. It is a good match for refits that need the same 2-module panel format with a different finish rather than a change in switch layout.
We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
