Overview

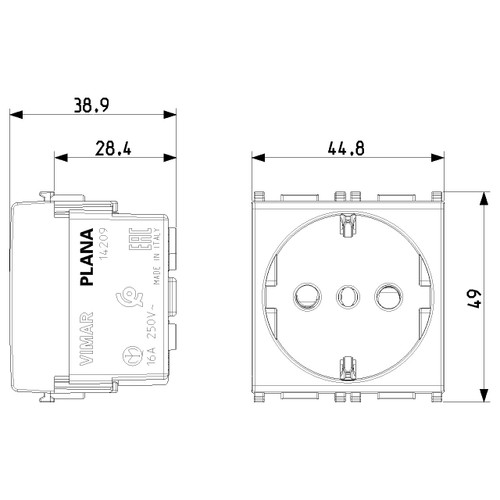

The Vimar Plana Series is a flush-mounted 2P+E P30 outlet rated for 16 A at 250 V, built in a 2-module format for installations that use the Italian P30 standard. It uses lateral and central earth contacts, screw terminals, and enhanced contact protection, with a body size of 44.8 x 49.0 x 38.9 mm.

This outlet suits protected interior spaces on board where a clean flush finish matters and the boat already uses Plana devices or the Italian P30 format. Its halogen-free thermoplastic body has a glossy surface, and the IP20 rating makes it a better fit for cabins, galleys, nav stations, and other dry locations rather than exposed deck or washdown areas.

Key features

• Italian type P30 outlet with lateral and central earth contacts
• Rated 16 A, 250 V, 50 to 60 Hz
• Flush-mounted 2-module format for Plana installations
• Screw terminal connection for wired panel or bulkhead fit-outs
• Enhanced contact protection built into the outlet
• Halogen-free thermoplastic body with glossy finish
• IP20 protection for sheltered interior locations
• Front label space and information surface

Variants

This outlet is offered in several color versions within the same Plana 2P+E P30 format.

Across the listed versions, the electrical layout remains the same at 16 A, 250 V, Italian P30, 2 modules, and flush-mounted installation. The visible difference is the front color, which can help match the surrounding trim or make one outlet easier to identify from another in grouped installations.

• VM14209: White. A neutral finish that blends easily into light cabin panels and standard interior fit-outs.
• VM14209.SL: Silver. A different visual finish for installations with metallic trim or a more contemporary interior style.
• VM14209.A: Orange. A higher-visibility color that helps the outlet stand out at a glance when circuits are grouped nearby.

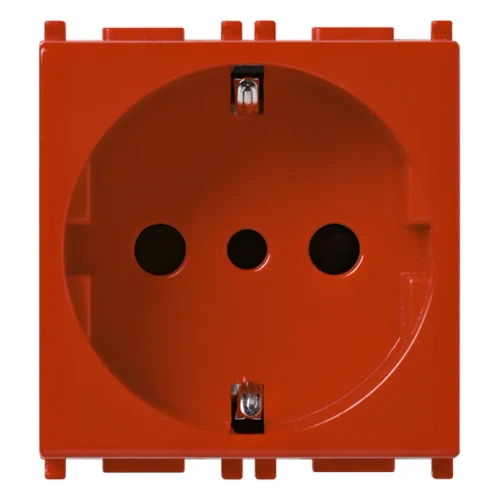

• VM14209.R: Red. A strong visual marker that can make one outlet easier to distinguish from adjacent devices.

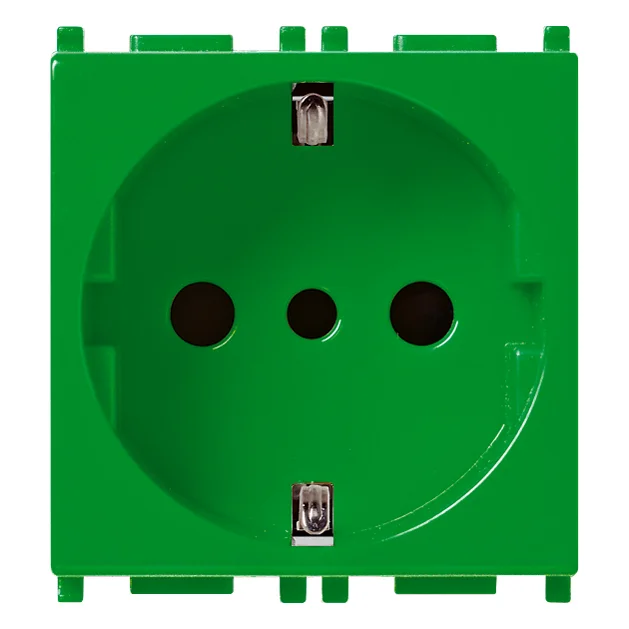

• VM14209.V: Green. A color option that is easy to spot in a panel or cabin run where quick visual separation is useful.

Installation and fit

Before ordering, check that your panel or wall box uses the Vimar Plana 2-module layout and that your AC system is set up for an Italian P30 receptacle. This is not a universal socket pattern, so plug compatibility should be confirmed with the vessel's existing shore power or onboard AC setup.

The screw-terminal connection and flush-mount format make it a straightforward replacement in established Plana installations or a clean match for new interior electrical work. Because the protection level is IP20, it belongs in enclosed or sheltered spaces, not in direct spray, cockpit exposure, or open deck locations.

Use on board

This range is a good match for boats that already standardize on Vimar Plana devices and need a 250 V outlet in living spaces, service areas, or navigation stations. It is especially useful when the outlet color needs to either disappear into the interior finish or stand out clearly for faster visual identification.
