Overview

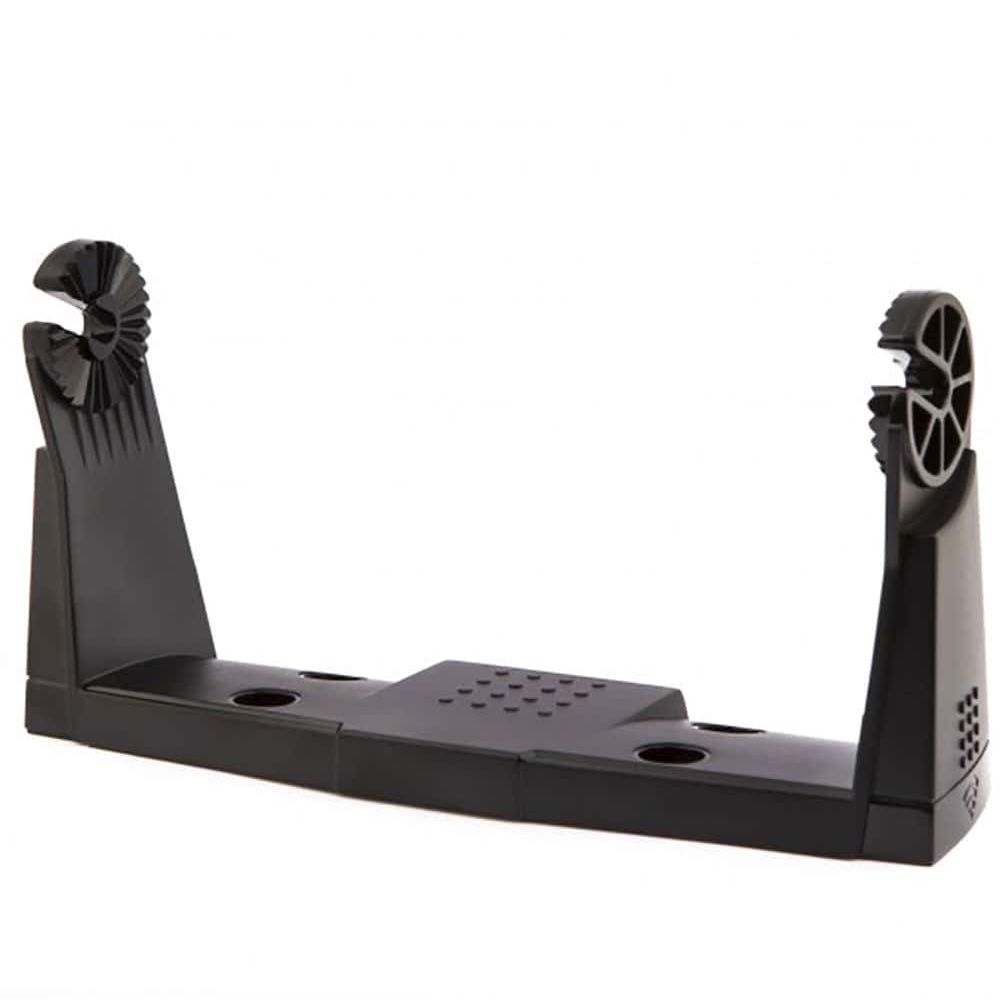

The Simrad 000-13702-001 is a gimbal mounting bracket for GO9, NSS7 evo3, Cruise 9, Vulcan 9, and Zeus3 7-inch displays, giving you a surface-mount option with a tilt angle you can set at the helm.

It is a practical replacement when an existing bail mount is cracked or when you want to move a compatible display onto a dash, electronics box, or bracket arm where a flush cutout is not the right fit. The gimbal style keeps the screen accessible and makes it easy to tweak the viewing angle when glare changes through the day.

Key features

• Compatible with GO9, NSS7 evo3, Cruise 9, Vulcan 9, and Zeus3 7-inch displays
• Surface-mount gimbal bracket that supports tilt adjustment for better sightlines from seated or standing positions
• Gimbal style helps keep the display steady on helms that see vibration and wave impacts
• Non-metal bracket construction avoids rust staining around the mount area
• Useful for refits where you want to keep a gimbal-mounted display at the dash without changing wiring runs

Compatibility and fit

This bracket is intended for specific 7-inch and 9-inch display models. Confirm the exact model name on your unit before ordering, since other Simrad and B&G screen sizes use different gimbal mounts.

Plan for clearance on both sides of the display so it can tilt without hitting a grab rail, windshield frame, or throttle binnacle. Leave room behind the unit for cable bend radius and for pulling connectors during service.

Installation and setup

Mount it on a flat, rigid surface and use marine-grade fasteners that match your mounting material. On thin fiberglass or plastic panels, a backing plate or large washers help spread the load and keep the mount from working loose over time.

After the bracket is secured, attach the display and set the angle so the screen is readable in your normal driving position. Recheck hardware tightness after the first few trips, especially on boats that spend time in chop.

Use on board

This gimbal bracket is a solid match for boats that need a dash-top mount for a GO9 class screen, including center consoles, bay boats, and cruisers with limited space for a flush install. It also suits straightforward replacements when you want the display back on the helm with the same gimbal style mounting.
