Overview

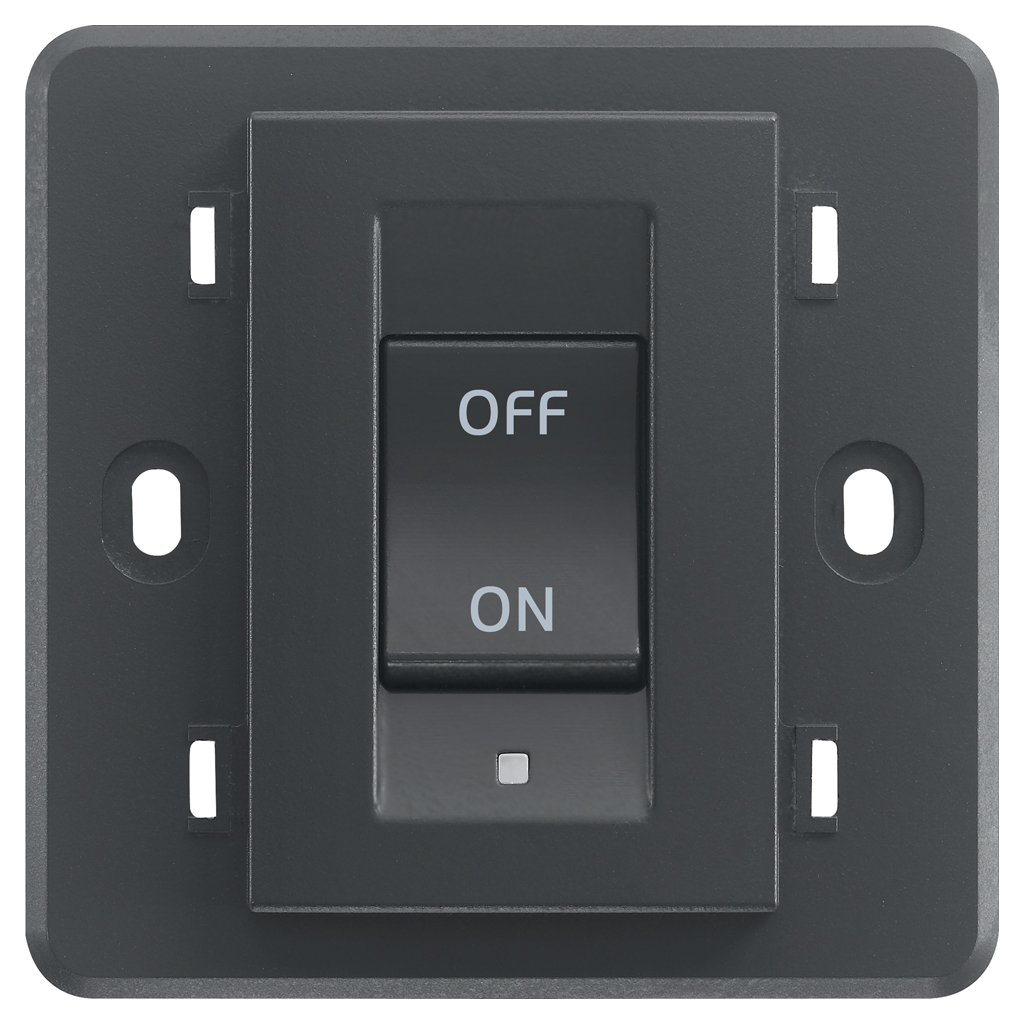

The Vimar Eikon 20017 is a 2-pole 32A 1-way switch button range for square British standard mounting boxes. It uses a 3-module format and is rated for 250 V, with a front size of 82.5 x 82.5 mm, a device depth of 32.5 mm, and a built-in depth of 22.5 mm.

This style of switch makes sense for protected interior AC circuits on board where you want a clean wall or panel finish and a switch that is easy to identify and service. It is flush-mounted, uses screwed terminals, and fits with a separate 3-module British standard cover plate. With an IP40 rating, it is better suited to cabins, galleys, utility areas, and other enclosed spaces than exposed deck locations.

Key features

• 2-pole 1-way switch rated at 32 A and 250 V for higher-load AC circuits
• 3-module format with built-in frame for square British standard mounting boxes
• Optional lighting for control and orientation, with an exchangeable LED
• Screw terminal connection and screw-mounted flush installation for fixed onboard wiring
• Halogen-free thermoplastic body with matt finish and front label space
• IP40 protection for protected interior locations
• Supports integrated ballast lamps up to 200 W

Variants

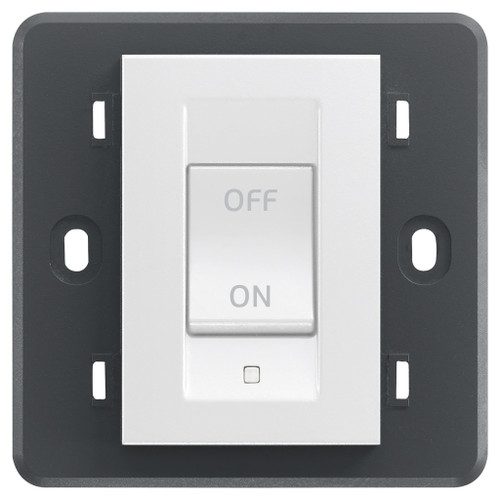

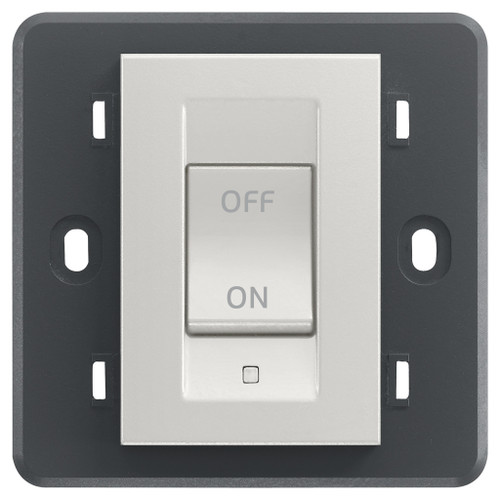

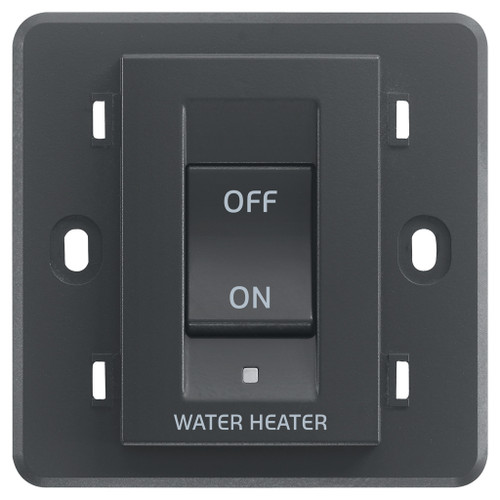

This range changes in two ways: front color and printed symbol. It is offered in grey, silver, and white, and each color is available with either the standard symbol or the Water/Heater symbol.

Across the six versions, the switching format stays the same: 2-pole, 32A, 250 V, with the same 3-module layout for British standard mounting boxes. The main difference is the finished look on the panel and whether the rocker carries a clear Water/Heater marking for circuit identification.

Installation and fit

Before ordering, check that your vessel uses a square British standard mounting box and the matching 3-module plate format. This switch is flush-mounted and uses screwed terminals, which suits fixed installations where secure terminations matter in areas subject to onboard vibration. It is a better match for protected interior AC switching points than for open cockpit or washdown-exposed positions.

Use on board

This range works well in refit and new-build interiors where the switch finish needs to match other Vimar Eikon devices. The Water/Heater symbol versions are useful when a dedicated appliance or hot water circuit should be obvious at a glance, while the standard symbol versions keep the look more neutral for general service circuits.
