Overview

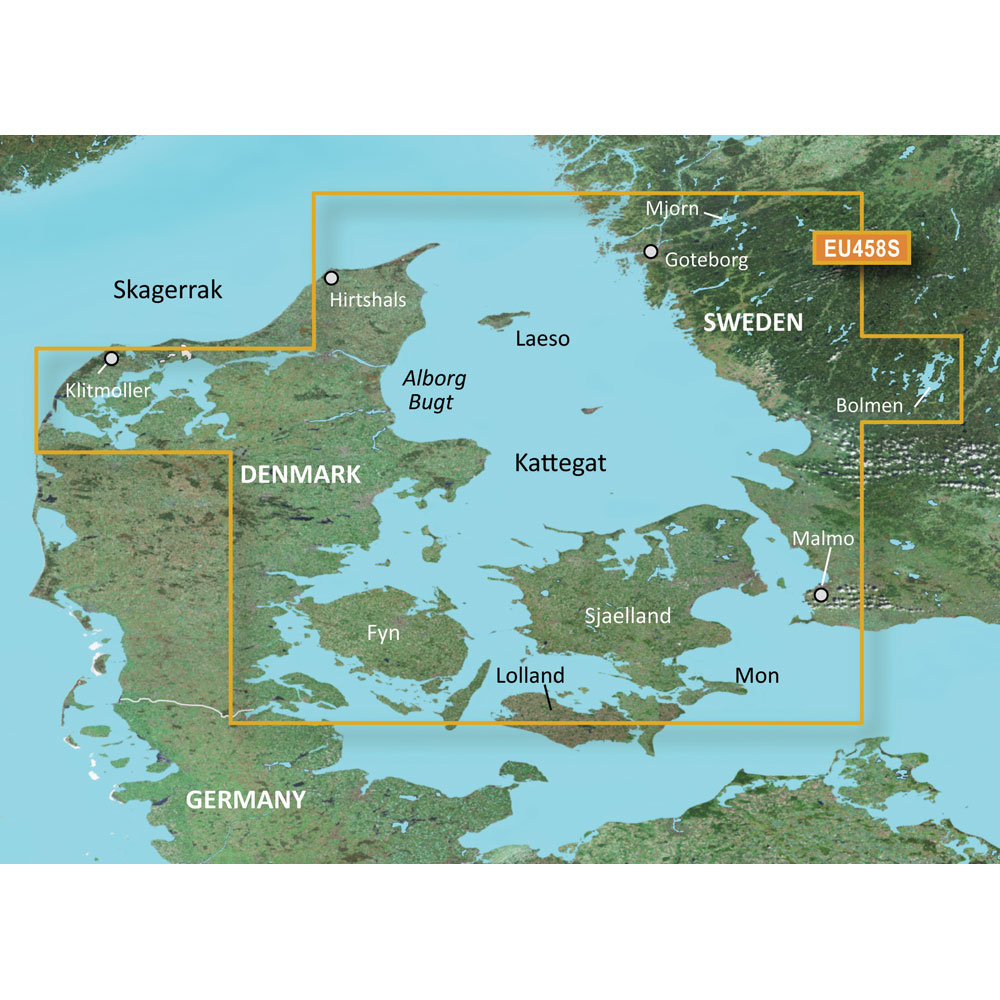

The Garmin BlueChart g3 Vision HD VEU458S is an electronic coastal chart covering the Swedish coast from Göteborg to Malmö (including lakes Mjörn and Bolmen) and the Danish coast from Hirtshals through Fyn, including Århus, plus Copenhagen and Limfjorden.

It layers detailed charting with tools that help you read depth and structure quickly, including Depth Range Shading for up to 10 depth ranges, user-set Shallow Water Shading, and 1 foot contours for tighter bottom detail.

Route planning uses Auto Guidance to suggest a general path based on your entered depth and overhead clearance. It is for planning only and does not replace keeping a proper lookout and navigating by all available means.

Key features

• Chart region VEU458S: Göteborg to Malmö (Sweden, including lakes Mjörn and Bolmen) and Hirtshals through Fyn (Denmark), including Århus, plus Copenhagen and Limfjorden
• Integrated Garmin and Navionics content for chart detail and coverage
• Auto Guidance route suggestions using your chosen depth and overhead clearance
• Depth Range Shading for up to 10 depth ranges to highlight target depths at a glance
• User-defined Shallow Water Shading to mark areas you want to avoid
• 1 foot contours to show bottom structure with tighter resolution
• High-resolution satellite imagery overlay for a more photo-like view when approaching ports and harbors
• FishEye View and MarinerEye View for 3D perspectives of bottom contours and surrounding terrain
• Aerial photography for many ports, harbors, and marinas to help with visual confirmation on approach

Variants

This chart is offered in two formats for different installation workflows.

The chart region and on-chart features remain the same across the range; the difference is whether you load it from a physical card or via a computer download.

• 010-C0802-00: Format microSD/SD. Physical card format for chartplotters that accept microSD or SD chart media.
• 010-D0400-00: Format Download. Digital delivery that installs to an SD card using Garmin Express before you load it into your compatible chartplotter.

Compatibility and fit

This cartography is made for compatible Garmin chartplotters that support BlueChart g3 Vision chart products. Before ordering, confirm your unit supports this chart type and that you have the right media option for your plotter (microSD or SD) or a suitable SD card for the download workflow.

Installation and setup

For the card version, insert the chart card into the plotter and select the chart layer from the chart menu. For the download version, install the chart to an SD card with Garmin Express, then insert that card into the plotter.

If you use Auto Guidance, enter realistic draft and clearance values for your boat and treat the suggested path as a starting point. Local conditions, charted data age, and navigation hazards still require onboard judgment.
