Overview

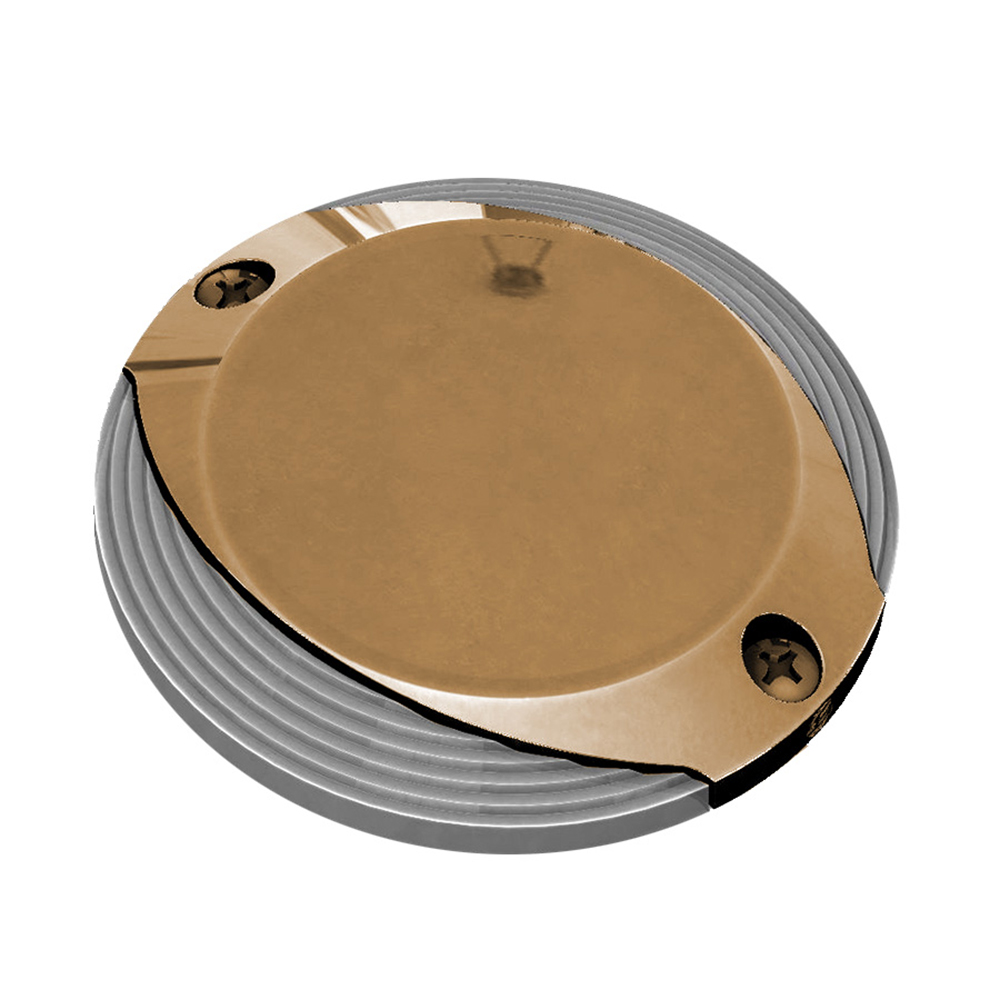

The Lumitec Scallop Pathway Light is a dock and walkway light built to wash the walking surface with 80 lumens while keeping glare down. It runs on 10-30V DC and draws 5W, so it fits common 12V and 24V onboard systems without needing a separate driver.

The housing is water-sealed to IP67 for rain, spray, and washdowns around docks, pilings, and exposed steps. Control support includes PLI (Poco Digital Lighting Control) and TTP (Timed Toggled Protocol), making it a good fit when you are tying pathway lighting into a coordinated dock-lighting setup.

Key features

• 10-30V DC input for typical 12V and 24V installations
• 5W draw with 80 lumen output for pathway and step lighting where you want usable light without harsh brightness
• IP67 water-sealed construction for exposed dockside mounting and routine washdowns
• Light output options across the range include Warm White, RGBW, and RGBW with Warm White
• PLI (Poco Digital Lighting Control) and TTP (Timed Toggled Protocol) enabled for integration into compatible lighting controls
• Offered in bronze finish or a hand-polished 316 stainless steel finish to match surrounding hardware and trim
• Can be added to a Mantis dock light kit or incorporated into a Kraken dock light system

Variants

The Scallop Pathway Light is offered in multiple configurations to match both the look of your dock hardware and the type of light you want on the walking surface.

Across the range, the options vary by exterior finish (bronze or stainless steel) and by light color output (Warm White, RGBW, or RGBW with Warm White).

Electrical and system integration

Plan the circuit as a low-voltage DC load within a 10-30V system and protect it with the appropriate fuse or breaker for the run. If you are using lighting control, confirm your controller and wiring plan support PLI and TTP so the light behaves the way you expect in groups, scenes, or timed toggles.

For dock projects that already use Lumitec dock-lighting platforms, the light can be added into a Mantis kit or incorporated into a Kraken system so pathway illumination and dock lighting can be managed together.

Installation and placement

Mount the light where it can throw light onto the deck, dock surface, or steps without shining directly into eye level. Keep all penetrations sealed and strain-relieve wiring so vibration, movement, and routine washdowns do not work connections loose over time.

This style of light is commonly used along dock edges, on walkway transitions, and near gates or steps where you want clear footing after dark.

Materials and corrosion care

The finish options let you match common marine hardware: a hand-polished 316 stainless steel finish or bronze. In saltwater environments, a quick rinse after heavy spray or cleaning chemicals helps the finish stay looking right, and non-abrasive cleaners help avoid dulling polished surfaces.

Use cases on board

This light suits owners setting up defined walkway lighting on docks, boarding areas, or step zones where IP67 sealing matters. It also fits installations where you want a simple Warm White path light or a color-capable option for signaling or ambiance through compatible controls.
