Overview

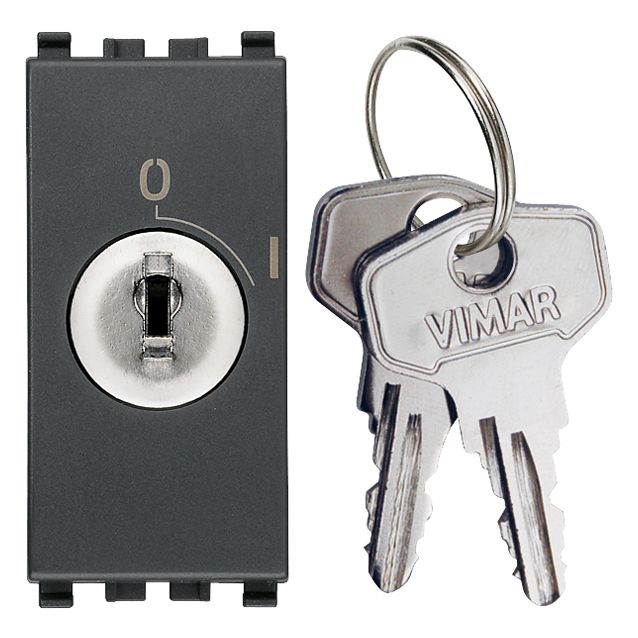

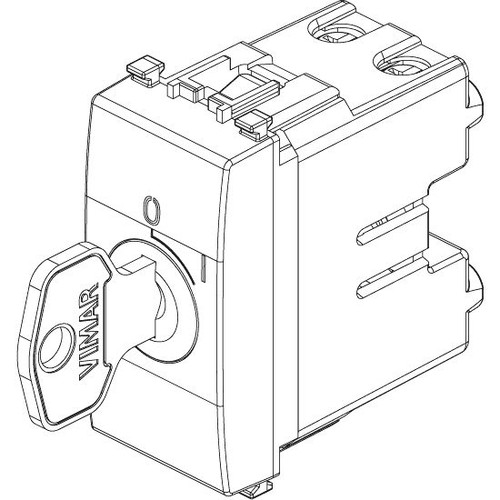

The Vimar Eikon 20082 is a 2-pole key-operated switch module rated 16 AX at 250 V AC, with the key removable only in the OFF position.

It fits a 1-module Eikon-format frame and mounts flush in a panel using snap fastening, which works well for cabin switch panels, helm-side consoles, or equipment spaces where you want controlled access. With an IP40 rating, it belongs in dry, protected interiors rather than exposed deck areas or washdown zones.

The halogen-free thermoplastic body and screw terminals make wiring and service straightforward, and it is suitable for switching self-ballasted lamps up to 200 W. Overall size is 22.3 mm wide by 49.0 mm high, with 43.5 mm depth and 33.5 mm built-in depth for behind-panel planning.

Key features

• 2-pole key switch module rated 16 AX at 250 V AC
• Key can be removed only in the OFF position for a locked-out state
• IP40 protection for sheltered, indoor mounting locations
• 1-module format with flush-mount installation and snap fastening
• Screw terminal connections for secure conductor termination
• Suitable for switching self-ballasted lamps up to 200 W
• Halogen-free thermoplastic construction
• Compact footprint: 22.3 mm (W) x 49.0 mm (H); 43.5 mm depth, 33.5 mm built-in depth

Variants

This switch is available in three face colors and two key formats to match the look of the panel and the keying used on board.

Color options are Grey, Silver, or White. Key options are listed as Standard or 000-Unified, which refers to the key profile or coding used for the mechanism. Keeping the same key format across multiple keyed switches helps reduce the number of different keys carried on the boat.

Compatibility and fit

This is a 1-module device intended for Vimar Eikon modular frames and plates. Plan a flush-mounted installation in a suitable back box with enough depth for the 33.5 mm built-in body plus wiring bend radius and terminal access.

Electrical and system integration

The unit is rated for 250 V AC circuits up to 16 AX, which aligns with many onboard AC branch circuit switching needs where a keyed OFF state is required. For low-voltage DC switching, confirm the circuit requirements match the switch ratings, since AC and DC switching duties can differ.

Installation and setup

Isolate power at the source, terminate conductors to the screw terminals, and snap the module into the frame before fitting the cover plate. Because the key is removable only when OFF, the circuit can be left secured without leaving a key in place.

Use cases on board

This style of keyed switch is a good match for boats where certain AC loads should be restricted, such as equipment compartments, shore-power fed accessories, or cabin lighting circuits that should not be switched on unintentionally. It also suits owners who want a simple way to limit casual use when the boat is left at the dock.
