Overview

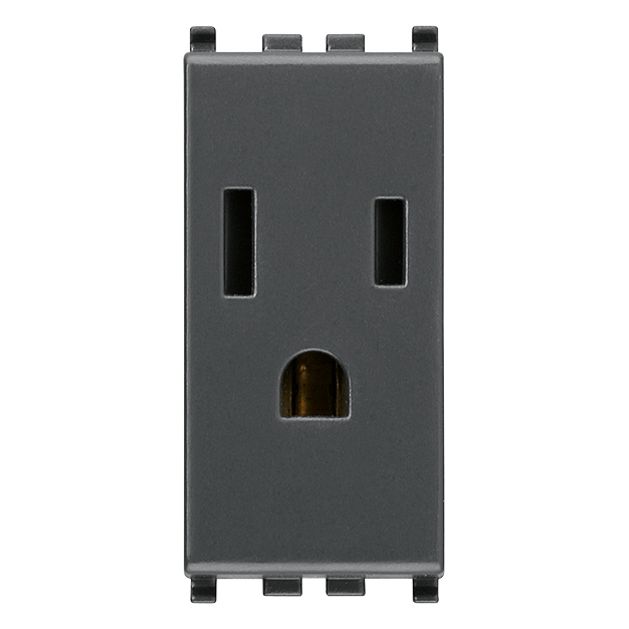

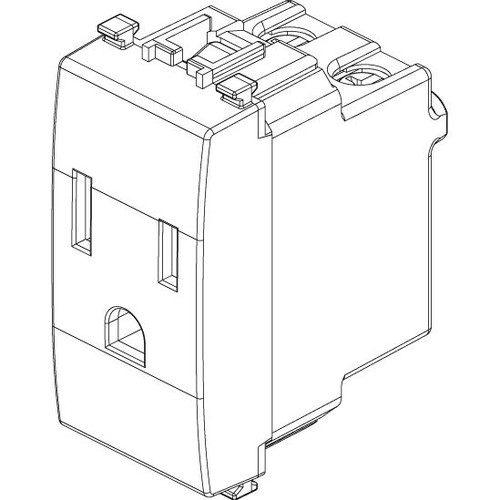

The Vimar Eikon 20242 is a 1-module SICURY socket outlet for 127V AC circuits, rated at 15A with 2P+E contacts for American and Saudi Arabian standard plugs. Its 22.30 x 49.00 x 36.90 mm body keeps the footprint compact, which helps when space is limited at an interior power point.

This outlet uses screw terminals and flush-mounted installation, so it suits fixed wiring in cabins, galleys, saloons, and other protected onboard spaces. The housing is thermoplastic, halogen-free, and finished in matte plastic. IP20 protection means it belongs in dry locations rather than exposed deck areas or places that see washdowns.

SICURY enhanced contact protection adds an extra layer of safety at the outlet face, and the front includes a label space for circuit identification. For boats running 127V AC service and using American or Saudi Arabian plug standards, this is a practical fit for a clean, integrated outlet point inside the vessel.

Key features

• 2P+E socket outlet rated 15A at 127V AC for American and Saudi Arabian standard plugs
• 1-module format for Eikon installations where a compact outlet is needed
• Screw terminal connection for fixed wiring
• Flush-mounted body for a built-in look at the panel or wall surface
• SICURY enhanced contact protection at the outlet face
• Thermoplastic construction that is halogen-free with a matte finish
• IP20 protection for dry interior spaces
• Front label space for marking the circuit or service point

Variants

This outlet is offered in three color finishes within the same Eikon 20242 configuration.

The electrical rating, 1-module layout, dimensions, IP20 protection, and screw terminal connection stay the same across the range. The visible difference is the finish and color tone on the outlet face.

• VM20242.B: White, RAL 9016. This suits light interior panels and keeps the outlet discreet against white trim.
• VM20242: Grey, RAL 7024. This gives a darker look that blends more easily into grey switch panels and technical spaces.
• VM20242.N: Silver, RAL 9022. This works well where the surrounding hardware uses a silver or satin look.

Installation and fit

The outlet is flush-mounted and uses a single-module body, so it fits applications where panel space needs to stay tight and tidy. The compact depth also helps when working behind finished interior panels, provided the box or cavity is sized for the device and the terminations.

Because this is an IP20 outlet, it is better suited to protected indoor areas on board than open cockpit, deck, or machinery spaces with spray, washdown water, or heavy condensation. It is a good match for owners and builders who want a 127V outlet point in accommodation spaces without moving away from the Eikon device style.
