Overview

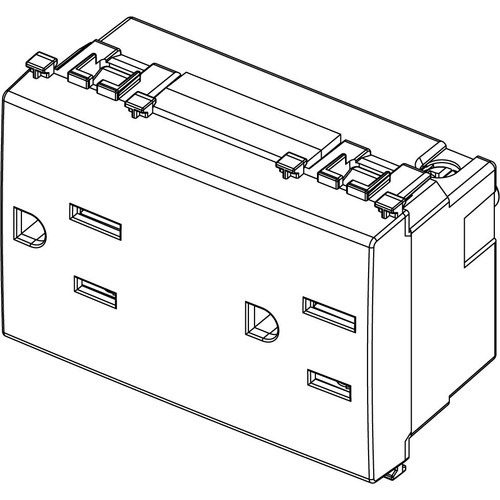

The Vimar ARKÉ Series is a double 2P+E 15 A 127 V SICURY socket outlet for American and Saudi Arabian plug formats, built as a 3-module flush-mounted device. It uses screw terminals, works at 50 to 60 Hz, and measures 67.5 x 49 x 35.5 mm, which helps when panel space is limited and the installation needs a clean, built-in look.

For marine interiors, this outlet fits dry onboard spaces where 127 V AC service is already part of the vessel electrical plan. It makes more sense in cabins, saloons, galleys, or enclosed helm areas than in exposed locations, since the housing is IP20 and does not include a hinged lid.

The body is made from halogen-free thermoplastic with a matt finish, and the outlet includes enhanced contact protection plus a label space on the front. That combination suits new builds and refits where finish consistency matters as much as day-to-day usability.

Key features

• Double 2P+E outlet format in one 3-module device for American and Saudi Arabian plug standards
• Rated 15 A at 127 V AC, 50 to 60 Hz
• Screw-terminal wiring with flush mounting and snap engagement
• IP20 construction for interior dry areas
• Halogen-free thermoplastic body with matt surface finish
• Enhanced contact protection and front label space for clearer circuit identification

Variants

This product is offered in three finish options within the same outlet format.

Across the listed variants, the electrical and mounting format stays the same: double 2P+E USA+SASO SICURY outlet, 15 A, 127 V, 50 to 60 Hz, 3-module size, flush mounting, screw terminals, IP20 protection, and the same 67.5 x 49 x 35.5 mm body dimensions. The visible difference is the front finish and color.

• VM19243, Color Grey. This finish has a restrained look that blends easily into darker panels and utility-focused interior spaces.
• VM19243.M, Color Metal. This option shifts the visual style toward a more technical, modern appearance while keeping the same electrical format and footprint.
• VM19243.B, Color White. This finish works well in bright cabins, white liners, and interiors where the outlet should stay visually light.

Installation and fit

This outlet is a practical match for boats that already use 127 V AC distribution and need two convenience outlets in one compact opening. The screw-terminal connection is straightforward for marine electricians, and the flush-mounted body keeps the face close to the panel rather than standing proud.

Before ordering, check that the installation point is planned around the ARKÉ 3-module format and that the location is an interior area protected from spray, washdowns, and heavy condensation. This is a standard socket outlet, not a weatherproof deck fitting and not a GFCI outlet.

Use on board

This outlet suits accommodation spaces, interior service areas, and other enclosed parts of the boat where guests or crew need access to 127 V power with USA or SASO plug compatibility. It also makes sense on refits where the finish of the visible electrical devices needs to stay aligned across the cabin or helm interior.
