Overview

The Vimar Arké RJ12 phone jack 6/6 is a 1-module flush-mounted communication insert for fixed RJ12 telephone points in an Arké installation. It uses a 6-position 6-conductor layout and screw terminals, which makes it suitable for hard-wired cabin phones, intercom points, or service-call stations where the cable is terminated directly at the back of the insert.

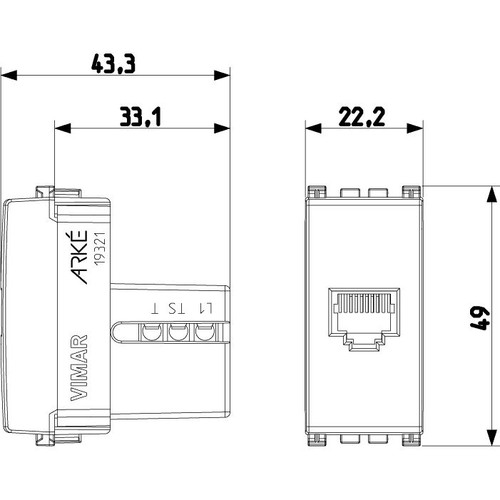

For marine interiors, the main checks are system match and mounting location. This insert is built for the Arké modular platform, mounts flush, carries an IP20 rating, and measures about 22.3 mm wide, 49 mm high, and just over 43 mm deep. Its halogen-free thermoplastic body and clamp mounting make it a practical fit for enclosed helm areas, cabins, nav stations, and utility spaces inside the boat rather than open deck locations or washdown zones.

Key features

• RJ12 connection in a 6-position 6-conductor 6/6 format.
• Screw terminals for direct conductor landing at the device.
• 1-module Arké insert for flush-mounted installations.
• IP20 protection for dry interior mounting locations.
• Halogen-free thermoplastic body with a matt finish.
• Available in White, Metal, and Grey versions.

Variants

This product is offered in three finish configurations within the same Arké RJ12 6/6 format.

Across the listed versions, the connection type, terminal style, module size, flush-mounted format, and IP20 rating stay the same. The visible color and surface treatment are what change between variants.

• VM19321.B: Color White. This version keeps the insert aligned with white Arké trim and lighter interior panels.

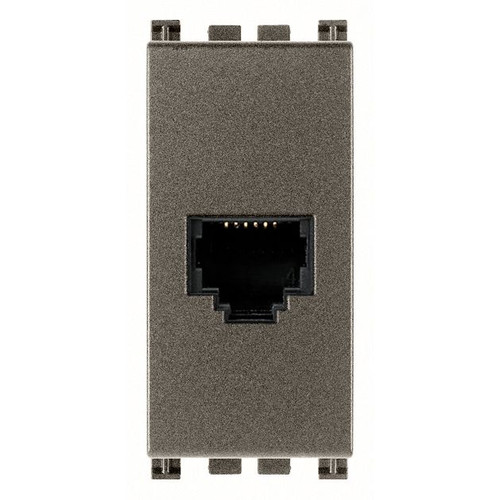

• VM19321.M: Color Metal. This version uses the metal-toned finish for installations that call for a more metallic look on the face of the device.
• VM19321: Color Grey. This version matches darker Arké layouts and neutral grey interior finishes.

Compatibility and fit

This jack makes sense where the boat already uses Vimar Arké modular hardware or where a refit is being built around that platform. Check that the panel or wall box accepts a 1-module Arké device and that the installation point is a protected interior space. The insert does not have a dust cover, so it is better placed where the port stays inside the accommodation area or another sheltered part of the vessel.

Use on board

On a boat, this type of RJ12 outlet is a good match for fixed voice or service communication points inside the superstructure. It fits best on yachts, passenger vessels, or commercial interiors that already use Arké switchgear and need a neat flush-mounted telephone connection in a dry location.
